| SPECIFICATIONS | |
| Brand | TP-LINK |

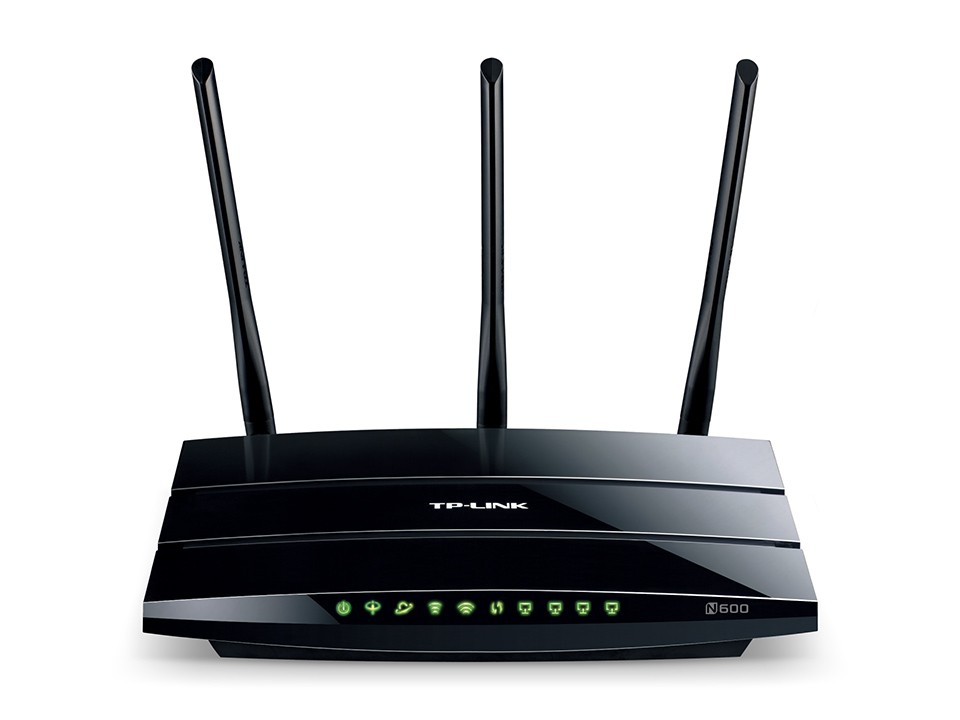

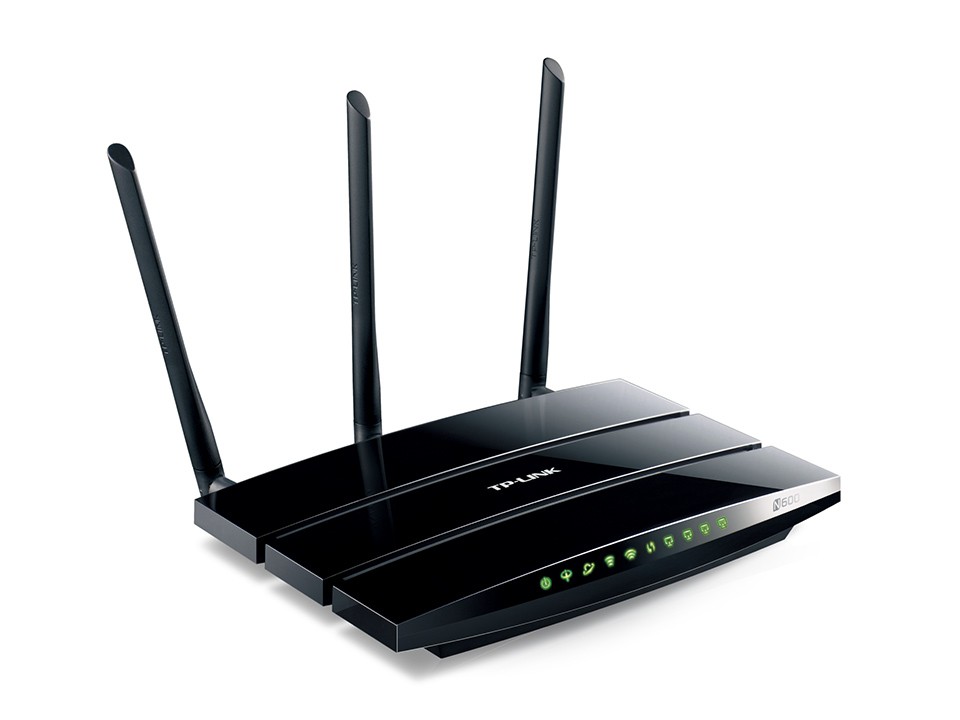

| Model | TD-W9980 | Hardware Features |
| Interface | 4 10/100/1000Mbps RJ45 Ports | 1 RJ11 Port | 2 USB 2.0 Ports |
| Button | 1 Power On/Off Button | 1 WPS Button | 1 Wi-Fi On/Off Switch | 1 RESET Button |
| Dimensions (W X D X H) | 243 x 160.6 x 32.5mm |
| External Power Supply | 12VDC/1.5A |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |

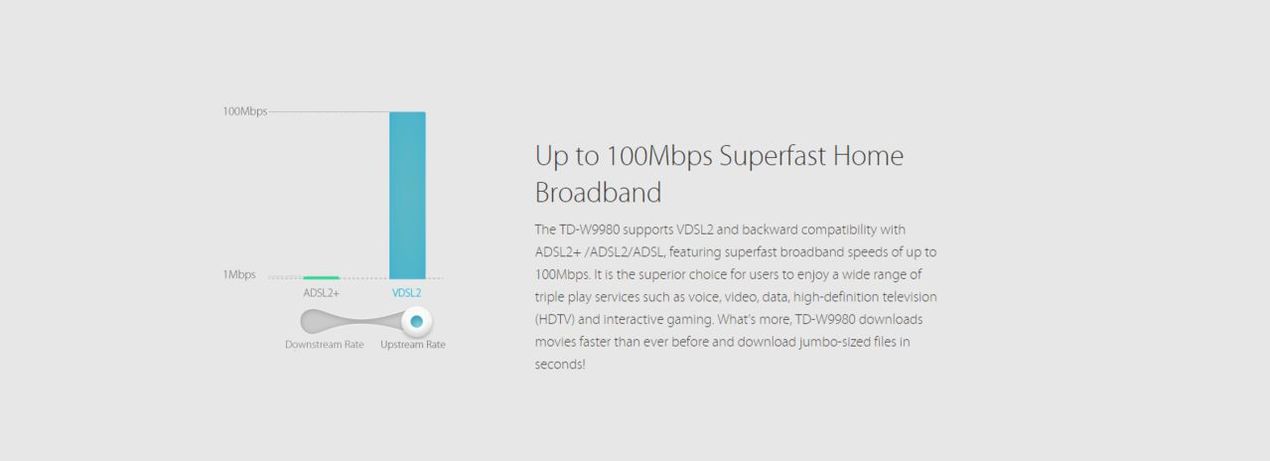

| VDSL2 Standards | ITU-T G.993.2 |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 | ITU-T G.992.1(G.DMT) | ITU-T G.994.1 (G.hs) | ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Antenna Type | Three 5GHz 5dBi detachable antennas (RP-SMA) | Two 2.4GHz 3.5dBi internal antennas | Wireless Features |
| Wireless Standards | IEEE 802.11a,802.11b, 802.11g, 802.11n |
| Frequency | 2.4GHz and 5GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK | Wireless MAC Filtering | Software Features |
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall | SPI Firewall | MAC / IP / URL Filtering |
| IPv6 | IPv6 and IPv4 dual stack | Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 | Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management | Web Based Configuration(HTTP) | Remote management | Telnet management | Command Line Interface | SSL for TR-069 | SNMP V1/V2C | Web Based Firmware Upgrade | CWMP(TR-069) | Diagnostic Tools |
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 | PPP over ATM (RFC 2364) | PPP over Ethernet (RFC2516) | IPoA (RFC1577/2225) | PVC - Up to 8 PVCs |
| Advanced Features | Parent Control | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt | Dynamic Host Configuration Protocol (DHCP), DHCP relay | Network Address Translation (NAT) | PVC/Ethernet Port Grouping | Static Routing, RIP v1/v2 (optional) | DNS Relay, DDNS |
| USB Sharing | Storage Sharing | FTP Server | Media Server | Print Server |
| IGMP | IGMP snooping V1/V2/V3 | IGMP Multicast |
| IPSec VPN | 10 IPSec VPN Tunnels | LAN-to-LAN | Main, Aggressive Negotiation Mode | DES, 3DES, AES128, AES192, AES256 Encryption Algorithm | MD5, SHA1 Authentication Algorithm | Manual, IKE Key Management Mode | Dead Peer Detection (DPD) | Perfect Forward Secrecy (PFS) | Others |
| Certification | CE, FCC, RoHS |
| Package Contents | TD-W9980 | External Splitter | RJ-11 Telephone Line | RJ-45 Ethernet Cable | Quick Installation Guide | Resource CD | Power Adapter |
| System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0°C~40°C | Storage Temperature: -40°C~70°C | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing | Warranty Information |
| Warranty | 12 Month Warranty |
