| SPECIFICATIONS | |
| Brand | TP-LINK |

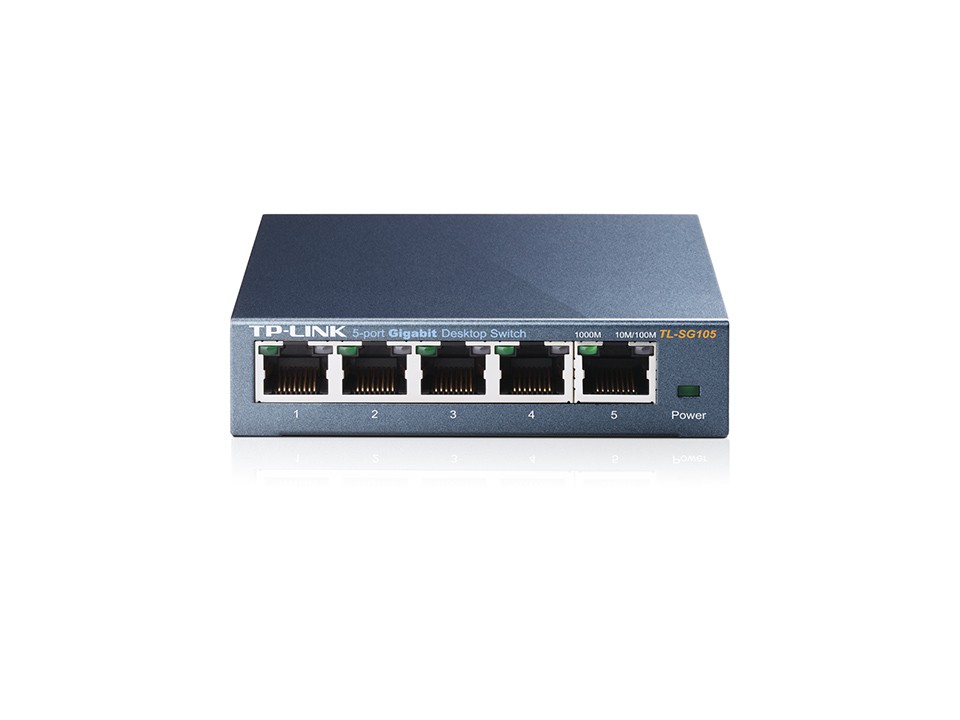

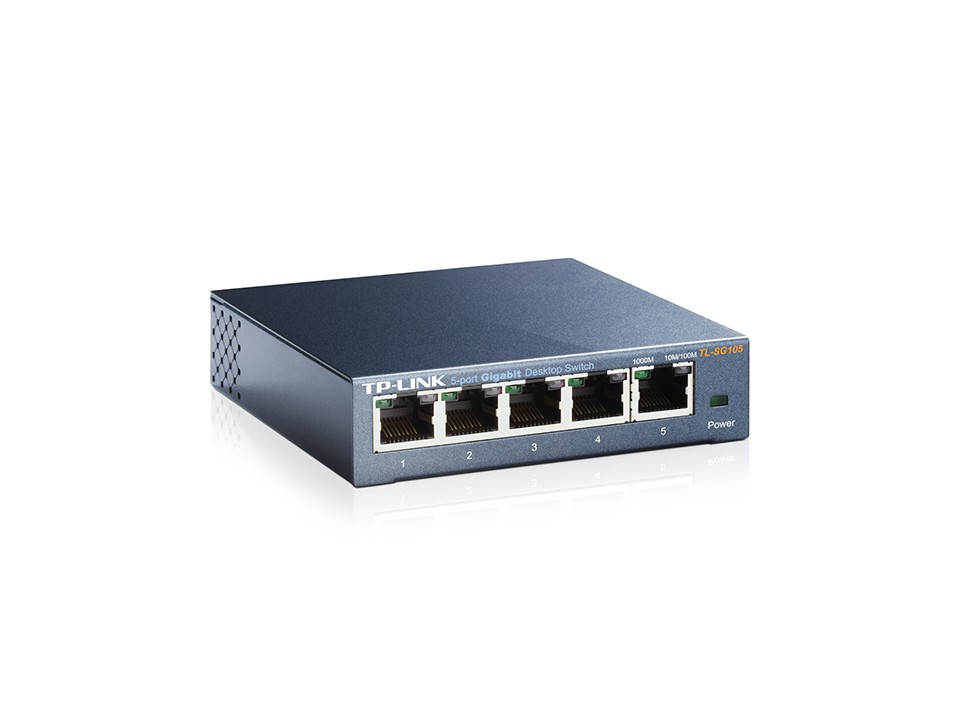

| Model | TL-SG105 | Hardware Features |
| Standards and Protocols | IEEE 802.3/802.3u/ 802.3ab/ 802.3x |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| Dimensions (W X D X H) | 99.8 x 98 x 25 mm |
| Power Consumption | Maximum: 3.2W (220V/50Hz) |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| LED Indicator | System Power | Link, Speed and activity indicators per port built into each RJ-45 port | Performance |
| Packet Forwarding Rate | 7.4Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1Mb |
| Jumbo Frame | 15KB | Software Features |
| Advanced Features | Green Technology, saving power up to 84% | 802.3X Flow Control | 802.1P/DSCP QoS | IGMP Snooping |
| Transfer Method | Store and Forward | Others |
| Certification | CE, FCC, RoHS |
| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch | Power Adapter | Installation Guide |
| Environment | Operating Temperature: 0°C~40°C | Storage Temperature: -40°C~70°C | Operating Humidity: 10% ~ 90% non-condensing | Storage Humidity: 5%~90% non-condensing | Warranty Information |
| Warranty | 12 Month Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
