| SPECIFICATIONS | |
| Brand | XFX |
| Series | Radeon RX 6000 Series |

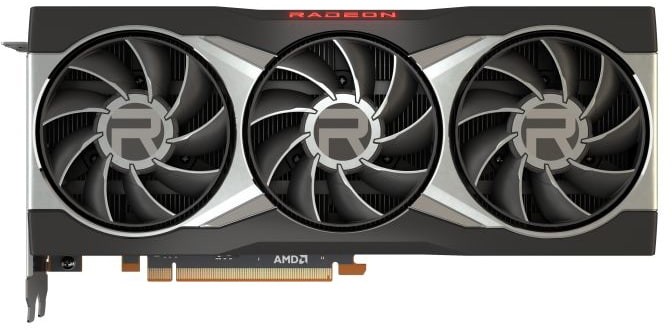

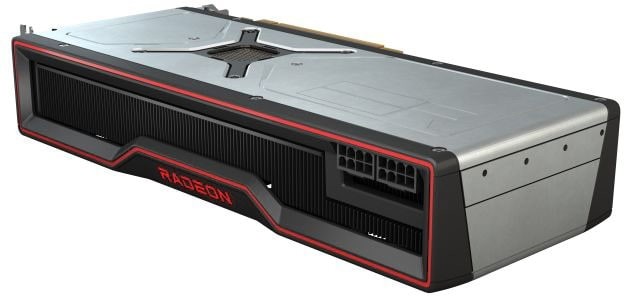

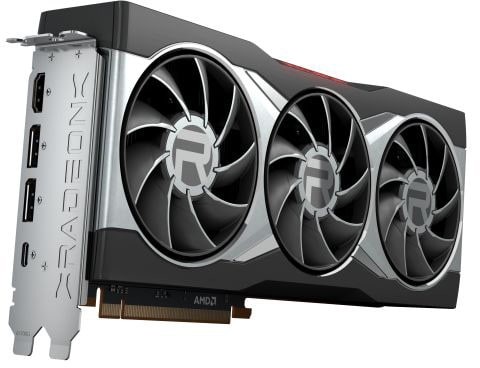

| Model | RX 6800 XT Reference (RX-68TMATFD8) |
| Chipset | |
| GPU | Radeon RX 6800 XT |
| Chipset Manufacturer | AMD |
| Interface | PCI-E 4.0 x16 |
| GPU Architecture | AMD RDNA 2 Architecture |
| Base Clock | 1825 MHz |
| Game Clock | 2015 MHz |
| Boost Clock | 2250 MHz |
| Stream Processors | 4608 |
| Compute Units | 72 |
| Ray Accelerators | 72 |
| ROPs | 128 |
| Texture Units | 288 |
| Note | *Game Clock is the expected GPU clock when running in typical gaming applications, set to typical TGP (total graphics power). Actual individual game clock results may vary. |
| Memory | |
| Infinity Cache | 128 MB |
| Memory Size | 16 GB |
| Effective Memory Clock | 16 Gbps |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | 12 Ultimate |
| OpenGL | 4.5 |
| Connectivity | |
| Ports | 2x DisplaytPort 1.4 (with DSC) |
| 1x HDMI 2.1 VRR & FRL | |
| 1x USB-C | |
| VR Ready | Yes, Radeon VR Ready Premium |
| General | |
| Features | 7nm GPU |
| PCI Express 4.0 Support | |
| DisplayPort 1.4 with DSC | |
| HDMI 2.1 VRR | |
| Video Streaming up to 8K | |
| Hardware Raytracing *1 | |
| Game Driver Optimizations | |
| HDMI 4K Support | |
| 4K H264 Decode | |
| 4K H264 Encode | |
| H265/HEVC Decode | |
| H265/HEVC Encode | |
| AV1 Decode | |
| AMD RDNA 2 Architecture | |
| AMD FreeSync Technology | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Software | |
| Note | *1. Not compatible with Windows 7 |
| Power Requirements | |
| Minimum Recommended Power Supply | 750W |
| Power Consumption | 300W |
| Power Connector | 2x 8-Pin Connectors |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2.5 Slot |
| Dimensions | 266.7 x 119.8 x 39.8 mm (LxWxH) |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- RX 6800 XT Happiness - Jason, 18 December 2020
I've been using this card for a week now and the experience has only been positive. I've combined it with a Ryzen 9 5900x and started using the AMD Smart Access Memory functionality. I'm currently running all games on Ultra at 1440p and getting great frames rates. The card is stable and performs well. It runs at 78C on average, but has reached 80C a few times.
I can 100% recommend this card, especially if you can link it with a 5000 series AMD CPU. - Amazed by AMD - Kyle, 8 December 2020
I received this card yesterday. At first i was skeptical going with AMD as ive been with Nvidia since my first gaming PC and was holding out for the Asus Tuf OC but it never came. When this card came out in stock, I decided to make the plunge and for the price compared to the Asus - I have to say im blown away. I upgraded from a 1080ti. My first game to test was AC Valhalla and now with the 6800XT at 1440p im getting stable 90fps ez (This is maxed framerate set in options). This card did not disappoint at all and i can fully recommend this card to anyone considering choosing AMD. Its really a game changer in performance.
