| SPECIFICATIONS | |
| Brand | ASRock |
| Series | H310CM Series |
| Model | H310CM-DVS |
| CPU | Supports 8th Generation Intel Core Processors (Socket 1151) |
| Supports CPU Up to 95W | |
| 4 Power Phase Design | |
| Supports Intel Turbo Boost 2.0 Technology | |
| Chipset | Intel H310 |
| Memory | Dual Channel DDR4 Memory Technology |
| 2x DDR4 DIMM Slots | |
| Supports DDR4 2666 / 2400 / 2133 non-ECC, Un-Buffered Memory | |
| Maximum Capacity of System Memory: 32GB *1 | |
| Supports Intel Extreme Memory Profile (XMP) 2.0 | |
| 15μ Gold Contact in DIMM Slots | |
| BIOS | 128Mb AMI UEFI Legal BIOS with Multilingual GUI Support |
| ACPI 6.0 Compliant Wake Up Events | |
| SMBIOS 2.7 Support | |
| DRAM, PCH 1.05V Voltage Multi-Adjustment | |
| Graphics | Supports Intel UHD Graphics Built-In Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics *2 |
| DirectX 12 | |
| HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode Only), MPEG2, MJPEG, VC-1 (Decode Only) | |
| Dual Graphics Output: Support DVI-D and D-Sub Ports by Independent Display Controllers | |
| Supports DVI-D with Maximum Resolution Up to 1920x1200 @ 60Hz | |
| Supports D-Sub with Maximum Resolution Up to 1920x1200 @ 60Hz | |
| Supports HDCP with DVI-D Port | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *3 |
| Supports Surge Protection | |
| ELNA Audio Caps | |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| 1x Realtek RTL8111H | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | 1x PCI Express 3.0 x16 Slot (PCIE2: x16 Mode) *4 |
| 1x PCI Express 2.0 x1 Slot *4 | |
| Storage | 4x SATA3 6.0 Gb/s Connectors, Support NCQ, AHCI and Hot Plug |
| Connector | 1x TPM Header |
| 1x Chassis Intrusion and Speaker Header | |
| 1x CPU Fan Connector (4-pin) *5 | |
| 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) *6 | |
| 1x 24 pin ATX Power Connector | |
| 1x 8 pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 1x USB 2.0 Header (Supports 2 USB 2.0 Ports) (Supports ESD Protection) | |
| 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 Ports) (Supports ESD Protection) | |

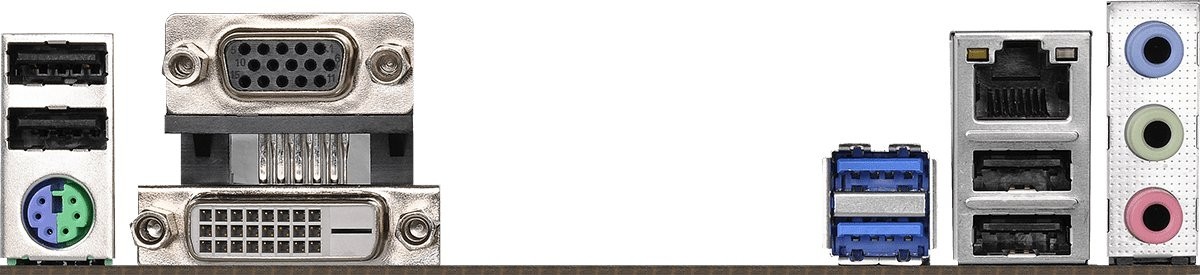

| Rear Panel I/O | 1x PS/2 Mouse/Keyboard Port |
| 1x D-Sub Port | |
| 1x DVI-D Port | |
| 4x USB 2.0 Ports (Supports ESD Protection) | |
| 2x USB 3.1 Gen1 Ports (Supports ESD Protection) | |
| 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| 3x HD Audio Jacks: Line In / Front Speaker / Microphone | |
| Software | ASRock A-Tuning |
| ASRock XFast LAN | |
| UEFI | ASRock EZ Mode |
| ASRock Full HD UEFI | |
| ASRock My Favorites in UEFI | |
| ASRock Instant Flash | |
| ASRock Internet Flash | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| 2x SATA Data Cables | |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, Chassis/Water Pump Fans | |
| Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature): CPU, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans | |
| CASE OPEN Detection | |
| Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore | |
| Form Factor | Micro ATX Form Factor (19.1 x 18.8 cm) |
| Solid Capacitor Design | |
| Operating System | Microsoft Windows 10 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required) |
| Notes | *1 Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| *2 Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| *3 To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| *4 Supports NVMe SSD as boot disks. | |
| *5 The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| *6 The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
