| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ZenWiFi Series |
| Model | 90IG0930-MO3B20 |
| Network Standard | IEEE 802.11a |
| IEEE 802.11b | |
| IEEE 802.11g | |
| WiFi 4 (802.11n) | |
| WiFi 5 (802.11ac) | |
| WiFi 6 (802.11ax) | |
| WiFi 6E (802.11ax) | |
| WiFi 7 (802.11be) | |
| IPv4 | |
| IPv6 | |
| Product Segment | BE14000 ultimate BE performance : 688 4323 8643 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps |
| WiFi 7 (802.11be) (5GHz): up to 4323 Mbps | |
| WiFi 7 (802.11be) (6GHz): up to 8643 Mbps | |
| Antenna | Internal antennas x 7 |
| Transmit / Receive | 2.4GHz 2x2 |
| 5GHz 3x3 | |
| 6GHz 3x3 | |
| Memory | RAM 1GB , Flash 128MB |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal | |
| 4096-QAM high data rate | |
| 20/40/80/160/320 MHz bandwidth | |
| Operating Frequency | 2.4 GHz |
| 5 GHz | |
| 6 GHz | |
| Operating Mode | Wireless Router Mode |
| AiMesh Node Mode | |
| Access Point Mode | |

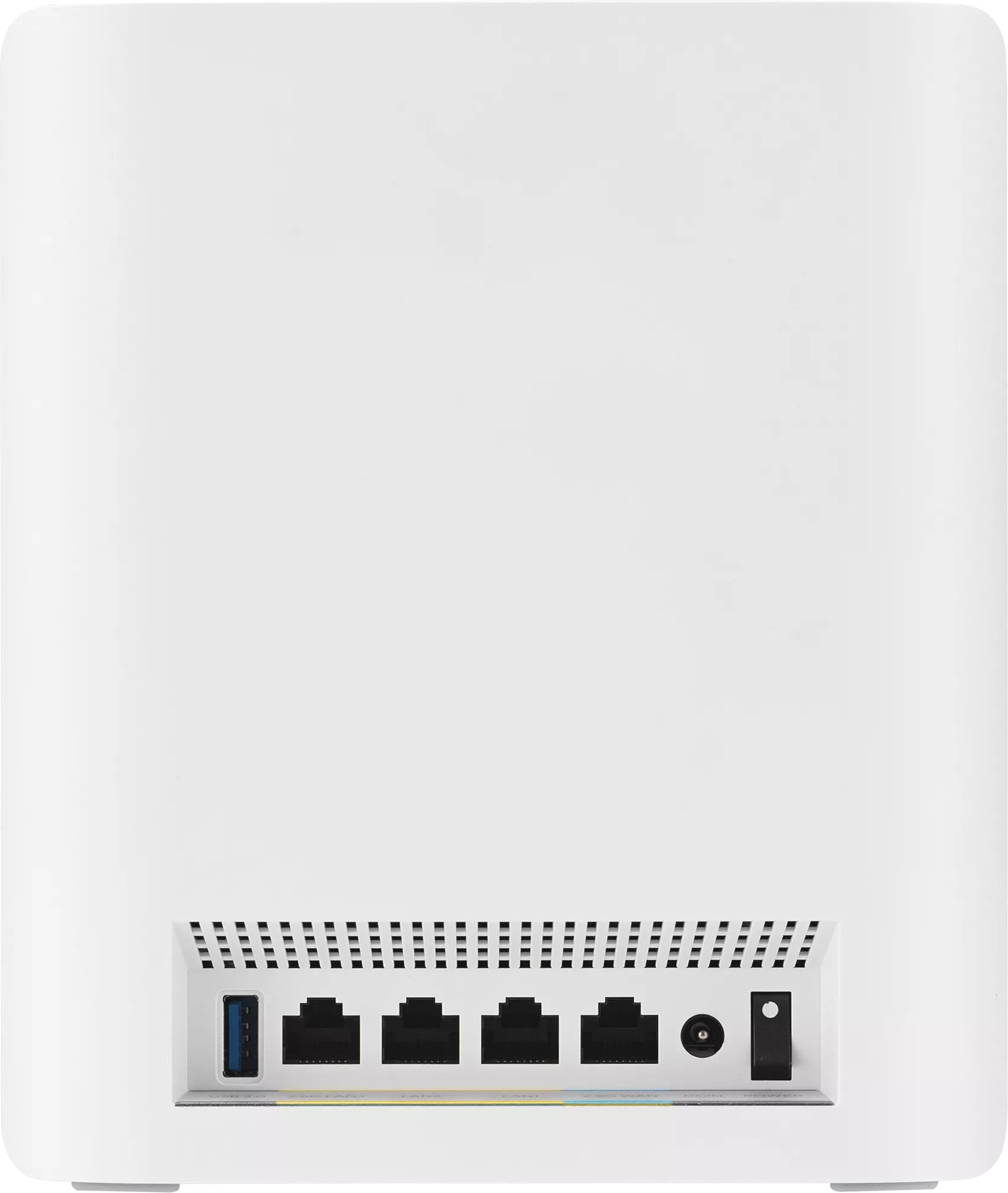

| I/O Ports | 2.5G WAN x 1 |
| 2.5G LAN x 1 | |
| 1G LAN x 2 | |
| USB 3.0 x1 | |
| Buttons | WPS button |
| Reset button | |
| Power switch | |
| LED Indicator | Power x 1 |
| Power Supply | AC Input : 110V240V(5060Hz) |
| DC Output : 12V with max. 3A current | |
| Package Content | ZenWiFi BT8 |
| RJ45 cable | |
| Power adapter | |
| Warranty card | |
| Quick start guide | |
| Product Dimensions | 159 x 72 x 186 mm |
| Remark | Content may vary in different regions and packages. |
| AiMesh | AiMesh |
| Primary AiMesh Router | |
| AiMesh Node | |
| Parental Control | Allow you to block access to unwanted websites and apps. |
| Web & Apps Filters | |
| Time Scheduling | |
| Reward | |
| Parental Control - Safe Browsing | |
| Customized Internet Schedule | |
| Router APP | APP: ASUS Router APP |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. |
| Support Guest Network | |
| Security | AiProtection |
| VPN | |
| WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise | |
| WPS | |
| Let's Encrypt | |
| DNS-over-TLS | |
| Security Scan | |
| Firewall | |
| AiProtection | AiProtection Pro |
| Router Security Assessment | |
| Malicious Site Blocking | |
| Two-Way IPS | |
| Infected Device Prevention and Blocking | |
| VPN | Instant Guard |
| VPN Client L2TP | |
| VPN Client Open VPN | |
| VPN Client PPTP | |
| VPN Client WireGuard | |
| VPN Server IPSec | |
| VPN Server Open VPN | |
| VPN Server PPTP | |
| VPN Server WireGuard | |
| VPN Fusion | |
| Traffic Control | Adaptive QoS |
| Bandwidth Monitor | |
| Bandwidth Limiter | |
| Traditional QoS | |
| Traffic Monitor | |
| Traffic Analyzer | |
| Website History | |
| WAN | 3G / 4G LTE Dongle |
| 4G / 5G Auto Mobile Tethering | |
| Port Forwarding | |
| Port Triggering | |
| DMZ | |
| DDNS | |
| Dual WAN | |
| LAN | DHCP Server |
| IGMP Snooping | |
| IPTV | |
| LAN Link Aggregation | |
| Manually Assign IP Address | |
| Wake on LAN (WOL) | |
| Wireless | MU-MIMO |
| UTF-8 SSID | |
| WiFi MAC Address Filter | |
| Wireless Scheduler | |
| Airtime Fairness | |
| RADIUS Client | |
| Universal Beamforming | |
| Explicit Beamforming | |
| USB application | 4G / 5G Auto Mobile Tethering |
| HDD Hibernation | |
| Safely Remove Disk | |
| AiCloud | |
| Download Master | |
| AiDisk | |
| Media Server | |
| Time Machine | |
| Samba Server | |
| FTP Server | |
| Shared Folder Privileges | |
| Administration | Diagnosis Tools |
| Feedback System | |
| System Log | |
| New Device Connect Notification | |
| Login Captcha | |
| Connection Diagnosis | |
| Auto Firmware Update | |
| Smart Home | Support Google Assistant |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
