ASUS DC500 Thunderbolt USB Type-C 4K HDMI 10-Port Triple Display Docking Station
Out of stockContact for AvailabilityEnquire below to confirm availability
ASUS Dock DC Series
Switch variantModel
DC301 DC500
Out of stock
From this brand
ASUS · 323 products
Overview
- Universal Thunderbolt Type-C Multiport Stationary Dock
- Up to 96W Power Delivery Pass-Through
- Thunderbolt 4 USB Type-C Compliant

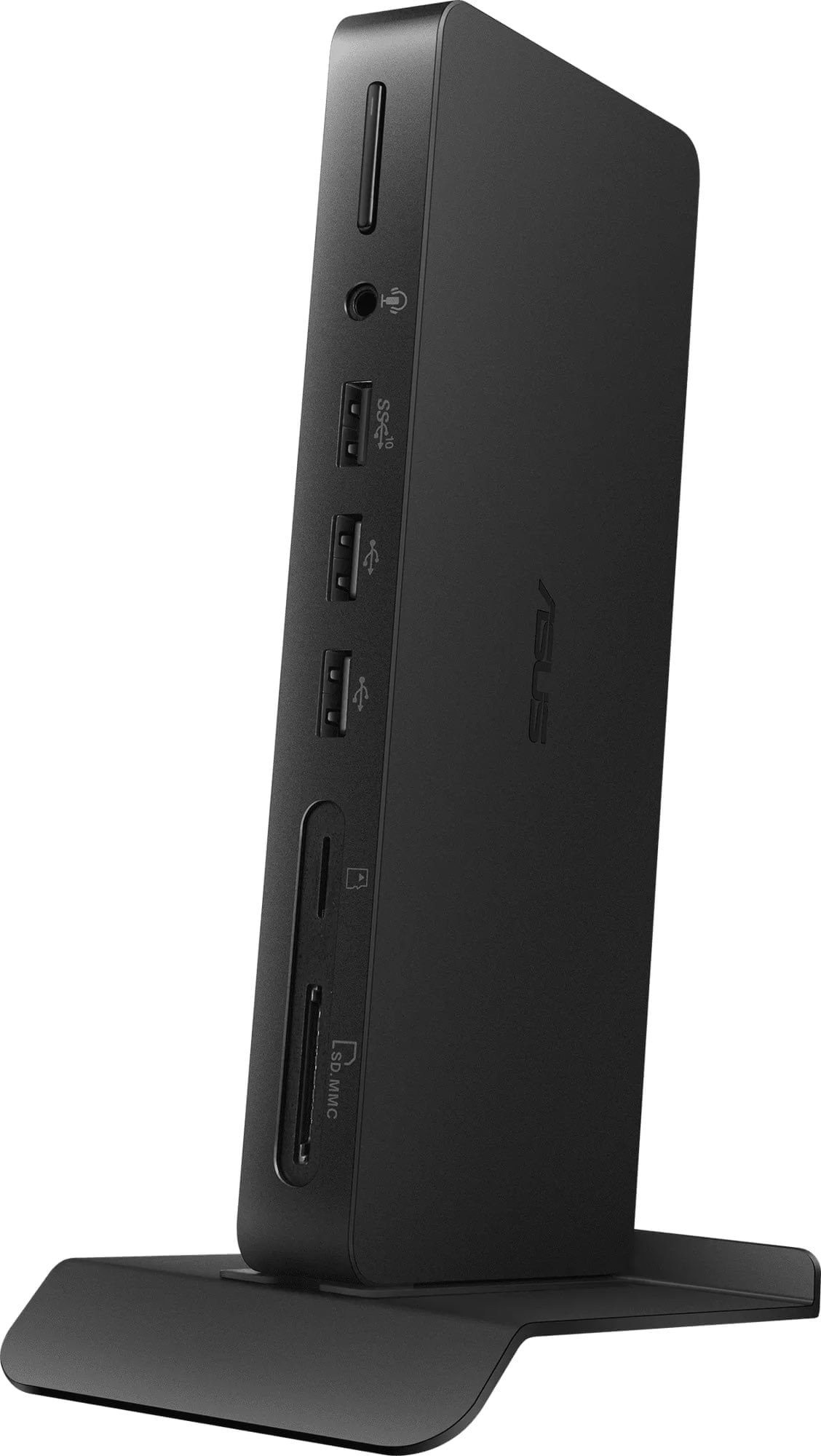

Front Ports
- 1x USB 10Gbps Type-A Port
- 2x USB 2.0 Type-A Ports
- 1x SD/MicroSD Card Slot Reader
- 1x 3.5mm Combination Audio Jack

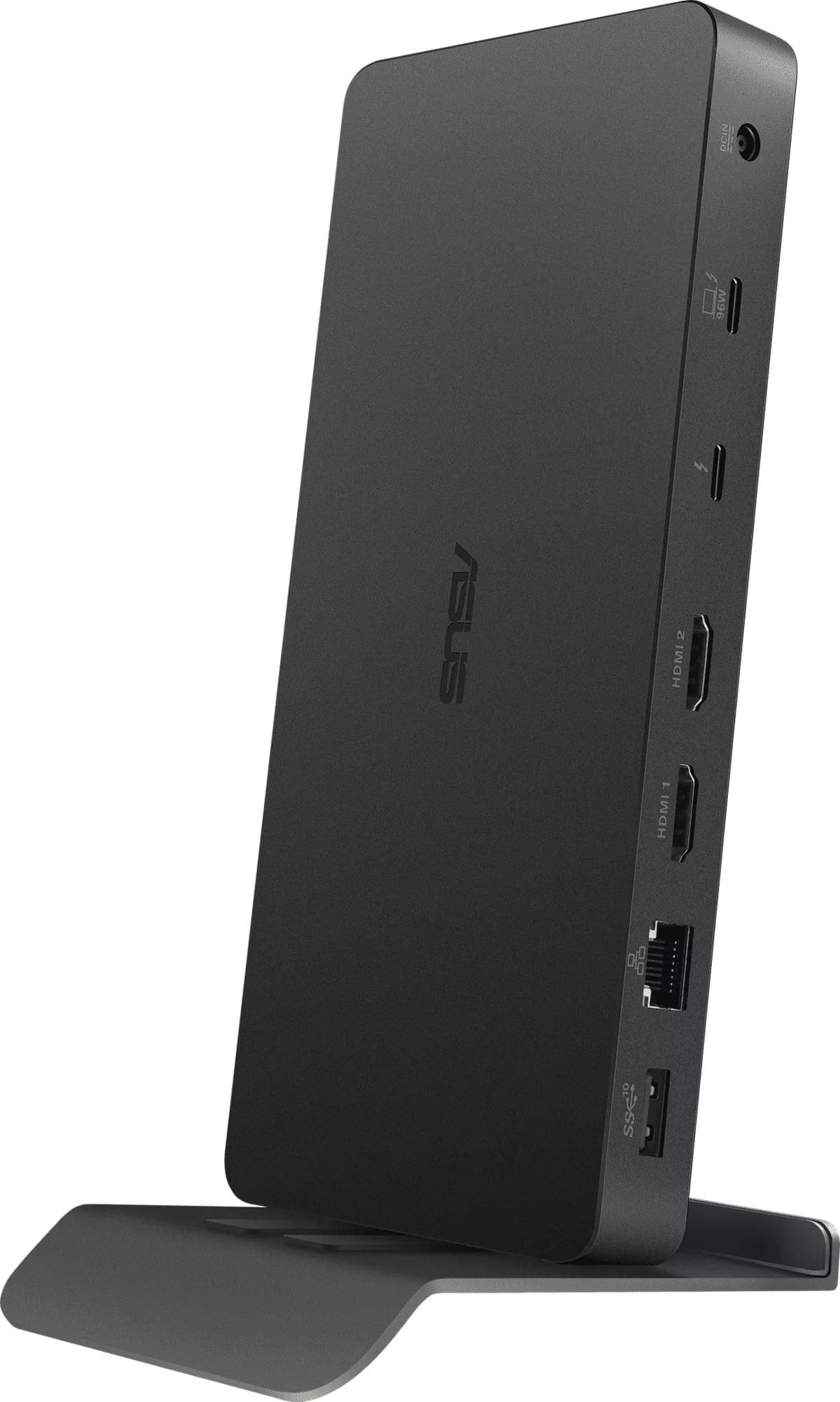

Rear Ports
- 1x Thunderbolt 4 USB Type-C Connector (Upstream, DisplayPort, Power Delivery)
- 1x Thunderbolt 4 USB Type-C Connector (DisplayPort)
- 1x USB 10Gbps Type-A Port
- 1x 2.5 Gigabit Ethernet RJ-45 Port
- 2x HDMI 2.1 (FRL) Ports
- 1x DC Charging Port
- Cable Length: 800mm
- Supports Windows, macOS, Chrome OS, Linux
- Multi-Display Support: Up to 3x Displays (Limitations Apply)
- Requires DisplayPort Alt Mode MST Support
- ASUS SimPro Dock Software
- Colour: Black
- 1 Year Warranty
Consult The Compatibility Guide
Specifications
SPECIFICATIONS
- ASUS
- USB Type-C Docks
- DC500 Thunderbolt Triple Display Dock (ACAS90XB0A5N-BDS010)
Connectivity
- 1x USB 10Gbps Type-A Port
- 2x USB 2.0 Type-A Ports
- 1x SD/MicroSD Card Slot Reader
- 1x 3.5mm Combination Audio Jack
- 1x Thunderbolt 4 USB Type-C Connector (Upstream, DisplayPort 2.1, 96W Power Delivery)
- 1x Thunderbolt 4 USB Type-C Connector (DisplayPort 2.1)
- 1x USB 10Gbps Type-A Port
- 1x 2.5 Gigabit Ethernet RJ-45 Port
- 2x HDMI 2.1 (FRL) Ports
- 1x DC Charging Port
Video Output
- HDMI 2.1 Ports supports up to 8K (7680x4320) @ 60Hz, supports HDCP & HDR
- Thunderbolt 4 USB Type-C with DisplayPort 1.4 supports up to 8K (7680x4320 @ 30Hz, supports HDCP & HDR
Display Support
- Up to 8K (7680x4320), 1x 60Hz monitor (HDMI 2.1)
- Up to 8K (7680x4320), 1x 30Hz monitor (Thunderbolt USB-C)
- Up to UltraHD 4K, 2x 120Hz monitors (HDMI 2.1)
- Up to UltraHD 4K, 2x 60Hz monitor (Thunderbolt USB-C)
- Up to UltraHD 4K, 3x 60Hz monitors (HDMI 2.1, Thunderbolt USB-C)
- Multi-monitor support is supported on Apple Macbooks with Apple Silicon M3 and M4 Processors
- Apple M1 & M2 Silicon are limited to one external monitor.
- Gigabit Ethernet, Up to 2500 Mbps
- IPv4, IPv6
- MAC Address Pass-through, Wake On Lan (WOL), 3.5mm Audio Pass-Through, Preboot Execution Environment, Firmware Updates
