| SPECIFICATIONS |
| Brand | Asus |
| Series | Strix Gaming motherboards |

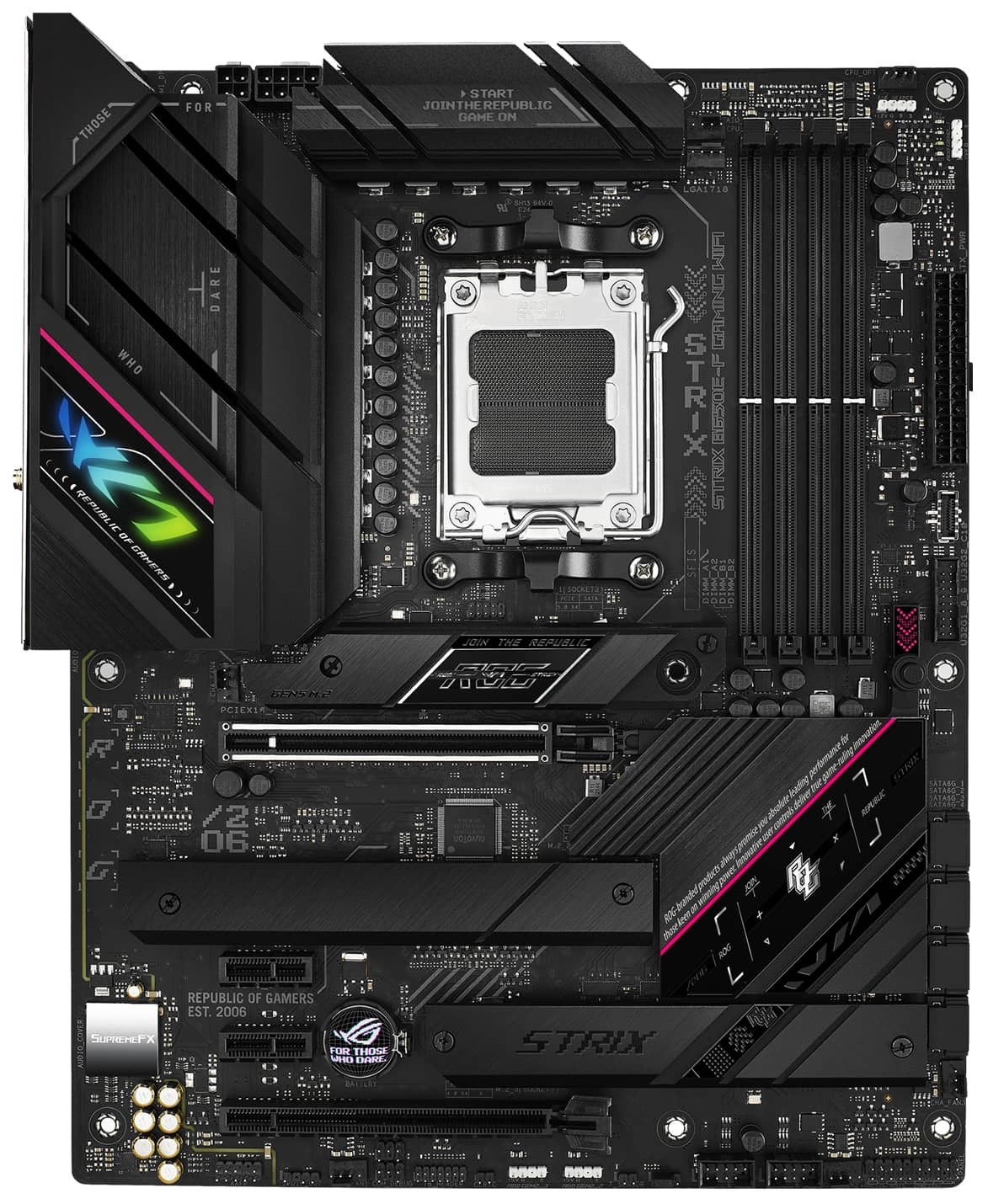

| Model | ROG STRIX B650E-F GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture |
| Supports AMD EXTended Profiles for Overclocking (EXPO) |
| OptiMem II |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI port** |
| * Supports max. 8K@60Hz as specified in DisplayPort 1.4. |
| **Supports 4K@60Hz as specified in HDMI 2.1 |
| Expansion Slots | AMD Ryzen 7000 Series Desktop Processors |
| 1 x PCIe 5.0 x16 slot |
| AMD B650 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode)* |
| 2 x PCIe 4.0/3.0 x1 slots |
| * PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3 |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| AMD B650 Chipset |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** |
| 4 x SATA 6Gb/s port |
| *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. |
| ** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled. |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| ASUS LANGuard |
| Wireless And Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Supports 2.4/5GHz frequency band |
| Bluetooth v5.2 |
| * Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be |
| ready in Windows 11 or later. |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C) |
| 4 x USB 3.2 Gen 1 port (4 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 7 ports) |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| - Impedance sense for front and rear headphone outputs |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
| - Supports up to 32-Bit/384 kHz playback |
| Audio Features |
| - SupremeFX Shielding Technology |
| - Savitech SV3H712 AMP |
| - Rear optical S/PDIF out port |
| - Premium audio capacitors |
| - Audio cover |

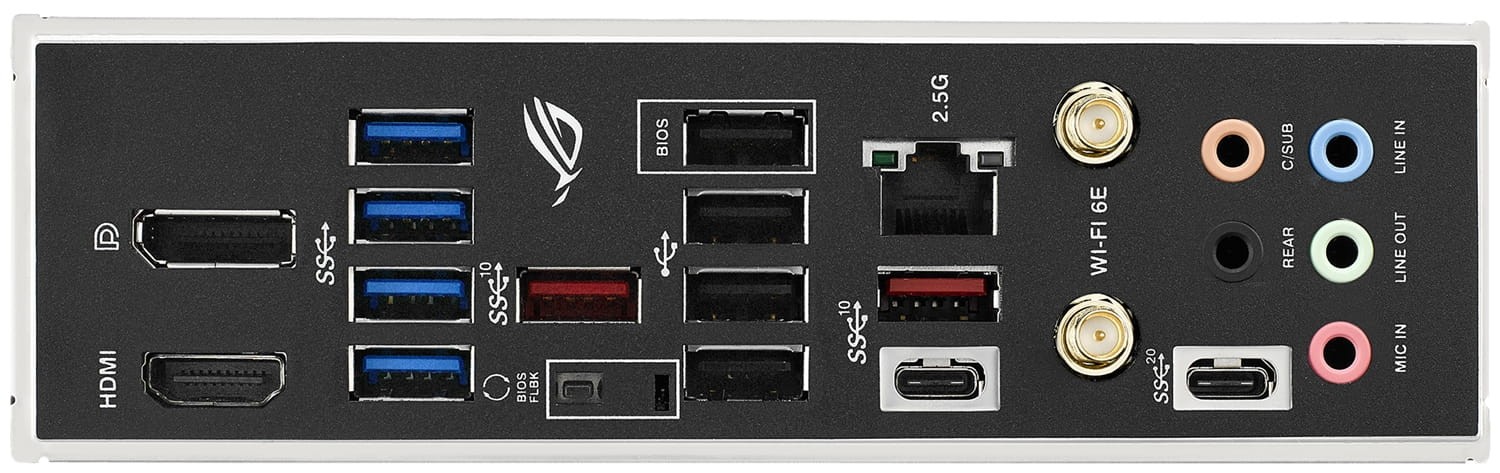

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI port |
| 1 x Wi-Fi Module |
| 1 x Intel I225-V 2.5Gb Ethernet port |
| 5 x Audio jacks |
| 1 x BIOS FlashBack button |
| Internal i/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin 12V Power connector |
| 1 x 4-pin 12V Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x AURA RGB header |
| 1 x Clear CMOS header |
| 1 x CPU Over Voltage jumper |
| 1 x Front Panel Audio header (AAFP) |
| 1 x S/PDIF Out header |
| 1 x 20-3 pin System Panel header with Chassis intrude function |
| 1 x Thermal Sensor header |
| 1 x Thunderboltheader |
| 1 x COM_DEBUGheader |
| Special Features | Extreme Engine Digi |
| - 5K Black Metallic Capacitors |
| ASUS Q-Design |
| - M.2 Q-Latch |
| - PCIe Slot Q-Release |
| - Q-LED |
| - Q-DIMM |
| - Q-Slot |
| ASUS Thermal Solution |
| - M.2 heatsink |
| - VRM heatsink design |
| ASUS EZ DIY |
| - BIOS FlashBack button |
| - BIOS FlashBack LED |
| - ProCool |
| - Pre-mounted I/O shield |
| - SafeSlot |
| - SafeDIMM |
| AURA Sync |
| - AURA RGB header |
| - Addressable Gen 2 headers |
| Software Features | ROG Exclusive Software |
| - GameFirst VI |
| - ROG CPU-Z |
| - Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion |
| - Sonic Radar III |
| - DTS Sound Unbound |
| - Anti-virus software |
| ASUS Exclusive Software |
| Armoury Crate |
| - AIDA64 Extreme (60 days free trial) |
| - AURA Creator |
| - AURA Sync |
| - Fan Xpert 4 |
| - Power Saving |
| - Two-Way AI Noise Cancellation |
| AI Suite 3 |
| - TPU |
| - DIGI VRM |
| - Turbo app |
| - PC Cleaner |
| MyAsus |
| WinRAR |
| UEFI BIOS |
| ASUS EZ DIY |
| - ASUS CrashFree BIOS 3 |
| - ASUS EZ Flash 3 |
| - ASUS UEFI BIOS EZ Mode |
| FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables |
| Additional Cooling Kit |
| 1 x Thermal pad for M.2 |
| Miscellaneous |
| 1 x ASUS Wi-Fi moving antennas |
| 1 x Cable ties pack |
| 1 x M.2 Q-Latch package |
| 1 x ROG key chain |
| 1 x ROG Strix stickers |
| 1 x ROG Strix thank you card |
| 2 x M.2 Rubber Packages |
| Documentation |
| 1 x User guide |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm |
| Warranty Information |
| Warranty | 3 Year Warranty |
