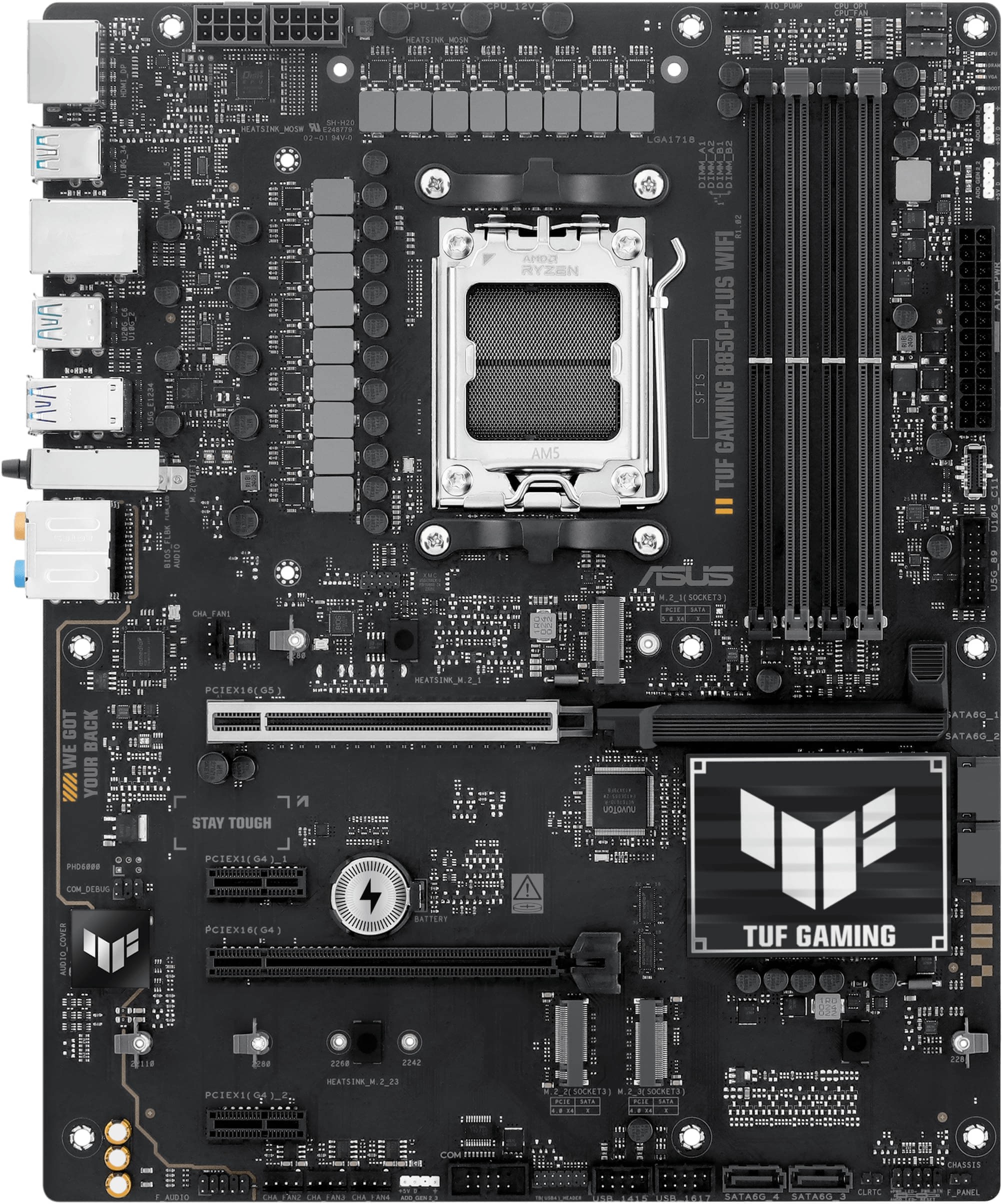

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 49353

3 Review(s) | Add Your Review

- ATX Form Factor
- AMD B850 Chipset
- Socket AM5
- 4x DDR5 DIMM Slots, Supports Up To 192GB
- Supports Up to DDR5-8000MHz+ (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 5.0 x16 Slot (supports x16 mode)
- 1x PCIe 4.0 x16 Slot (supports x4 mode)
- 2x PCIe 4.0 x1 slots
- Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- 1x USB 20Gbps Type-C Port
- 3x USB 10Gbps Type-A Ports, 4x USB 5Gbps Type-A ports
- 2x USB 2.0 Type-A Ports
- 1x DisplayPort, 1x HDMI™ port
- 1x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port
- 5x Audio jacks, 1x BIOS FlashBack Button
- Realtek 2.5Gb Ethernet Port
- 802.11be Tri-Band 320MHz Wi-Fi 7 Module
- Bluetooth v5.4
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- DIGI+ VRM (- Digital power design with DrMOS)
- ASUS Q-Design
- ASUS Thermal Solution
- ASUS EZ DIY
- Aura Sync
- 3 Year Warranty

245 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF GAMING B850M-PLUS WIFI7 W AMD B850 Ryzen Socket AM5 Whit...

In stock with Wootware

R7,499.00

R4,499.00

Save: R 3,000!

Sapphire 52123-01-40G NITRO+ B850M WIFI AMD B850 Ryzen Socket AM5...

In stock with Wootware

R3,999.00

R3,199.00

Save: R 800!

5 Review(s)

Gigabyte B850 AORUS ELITE WIFI7 AMD B850 Ryzen Socket AM5 ATX Des...

In stock with Wootware

R5,999.00

R4,999.00

Save: R 1,000!

5 Review(s)

MAXSUN Terminator B850M PRO II WiFI7 AMD B850 Ryzen Socket AM5 Mi...

Contact for Availability

R3,999.00

R2,799.00

Save: R 1,200!

1 Review(s)

Sapphire 52123-04-40G PULSE B850M WIFI AMD B850 Ryzen Socket AM5 ...

In stock with Wootware

R3,649.00

R2,799.00

Save: R 850!

1 Review(s)

Gigabyte B850 EAGLE WIFI6E AMD B850 Ryzen Socket AM5 ATX Desktop ...

In stock with Wootware

R4,799.00

R3,999.00

Save: R 800!

6 Review(s)

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Ryzen Socket AM5 ATX D...

In stock with Wootware

R9,999.00

R8,599.00

Save: R 1,400!

1 Review(s)

ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD B850 Ryzen Socket AM5 ...

In stock with Wootware

R9,999.00

R7,499.00

Save: R 2,500!

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD B850 Ryzen Socket AM5 ...

In stock with Wootware

R9,699.00

R5,999.00

Save: R 3,700!

ASUS ROG STRIX B850-F GAMING WIFI AMD B850 Ryzen Socket AM5 ATX D...

In stock with Wootware

R8,999.00

R6,999.00

Save: R 2,000!

2 Review(s)

Product Description
Additional Information
Reviews (3)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	TUF GAMING
Model	TUF GAMING B850-PLUS WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort**
	1 x HDMI port***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)
	AMD Ryzen 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
	AMD B850 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)***
	2 x PCIe 4.0 x1 slots
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	** Specifications vary by CPU types.
	*** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
	AMD B850 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
	4 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
	** Specifications vary by CPU types.
	*** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
	Bluetooth v5.4***
	* Wi-Fi features may vary depending on the operating system.
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	1 x USB 20Gbps port (1 x USB Type-C)
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 10Gbps connector (supports USB Type-C)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C power delivery output: max. 5V/3A.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback*
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C)
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 10Gbps connector (supports USB Type-C )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thunderbolt (USB4) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty Information
Warranty	3 Year Warranty
