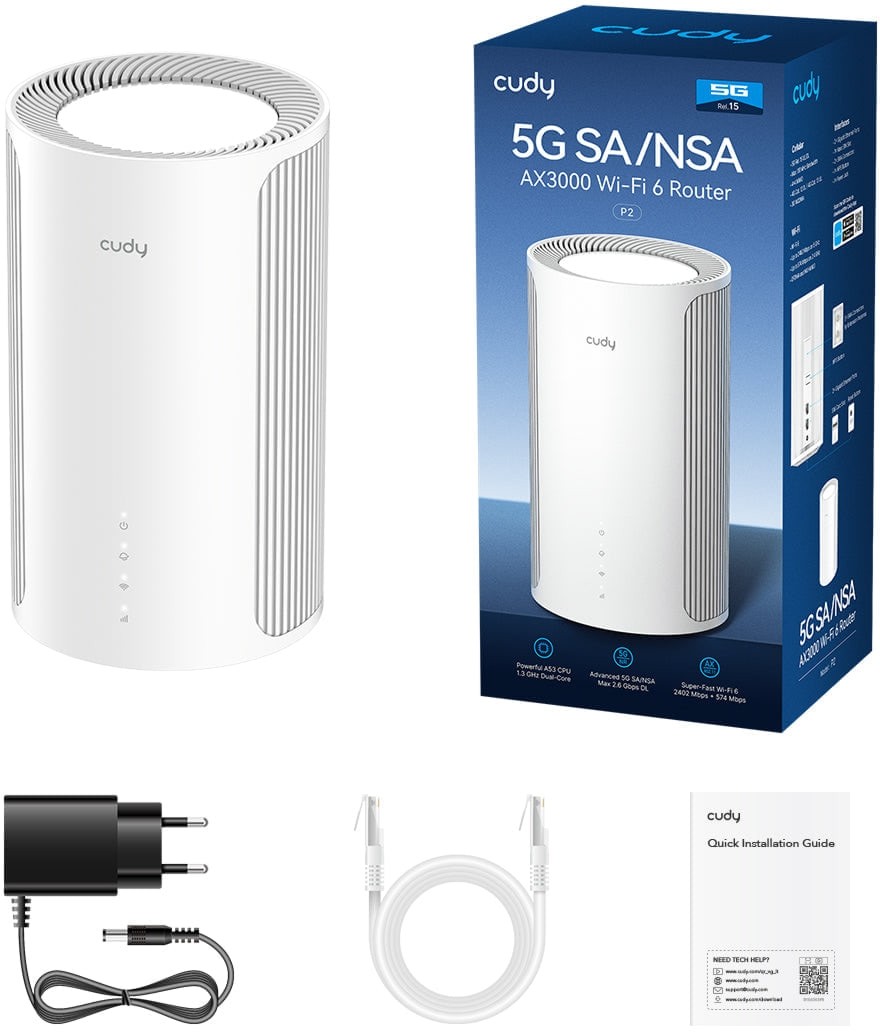

Cudy P2 AX3000 5G LTE WiFi 6 Gigabit Mesh Wireless Dual Band Router

More Views

Please note:
Images are for illustrative purposes only.

Cudy P2 AX3000 5G LTE WiFi 6 Gigabit Mesh Wireless Dual Band Router

Product ID: 54122

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- 4G & 5G LTE Router
- 4x4 MIMO LTE Connectivity
- MTN Fixed-LTE Networks Not Supported
- Fibre WAN Capable with LTE Failover
- Nano-SIM Card Slot
- WPA3 Compliant, IPv6 Capable
- LTE Bandwidth: Up to 2.6Gbps DL, 650Mbps UL
- 2.4GHz WiFi Bandwidth: Up to 574Mbps
- 5.0GHz WiFi Bandwidth: Up to 2402Mbps
- 1x RJ-11 Landline Port (VoIP)
- 1x Gigabit Ethernet RJ-45 LAN Port
- 1x Gigabit Ethernet RJ-45 WAN/LAN Port
- Supports External SMA 4G/5G LTE Antennas
- Supports Wired & Wireless Mesh Backhaul
- Supports WireGuard & OpenVPN Client/Server
- Supports Secure DNS over TLS
- Cudy Mesh Compatible
- Cudy App Support (Android, iOS)
- Colour: White
- 2 Year Warranty

21 Products

- Please note: This router requires either an activated SIM card with a data connection, or an Ethernet WAN internet connection, to enable internet access to connected devices.

  This router is not compatible with SIM cards on the MTN Fixed-LTE Network.

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,289.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Cudy
Series	LTE Routers
Model	P2 AX3000 WiFi 6 Dual-Band 4G/5G LTE Router
LTE
Cellular Standards	5G Rel. 15
Cellular Standards	DL 4G Cat. 12/ UL 4G Cat. 13
Antennas	6× Internal
Antennas	2× SMA Connectors for Customized Antennas
Detachable Antenna Connector	SMA Female
SIM Options	1× Nano SIM Slot
LTE Supported Regions	Europe, Middle East, Africa, Asia-Pacific, Latin America
Max LTE Download Speed	2.6 Gbps (NSA), 2 Gbps (SA)
Max LTE Upload Speed	650 Mbps (NSA), 1 Gbps (SA)
Advanced	5G & 4G Dual Connectivity, DL 4×4 MIMO, UL 2×2 MIMO
Cellular Bands	5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/66/77/78
	LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66
	WCDMA: B1/2/5/8
Cellular APN	Band Select (Band Lock)
	Cellular Mode Select
	Data Roaming
	APN Profile
	Manual APN Profile
	MBN
	MTU Value
Cellular Modes	5G NSA Only
	5G SA Only
	4G Only
	Auto
Internet Failover Sequence	WAN
	WISP
	Cellular
Ethernet WAN Mode	DHCP
	Static IP
	PPPOE
	L2TP
	PPTP
WiFi
Wireless Standards	Wi-Fi 6
Wi-Fi Modulation	Up to 1024K-QAM
Wi-Fi Efficiency	OFDMA, MU-MIMO, BSS Color
Max Capacity	256 clients
Recommended Client Upper Limit	100 clients
Wi-Fi Channel Widths	20/40/80/160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
WPS	Supported
5 GHz Wi-Fi Speed	2402 Mbps
2.4 GHz Wi-Fi Speed	574 Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	4x Internal, Fixed
Range	Max 170m
Platform
CPU	1.3 GHz Dual-Core, ARM Cortex-A53
Flash Storage	128MB (1 Gbit) NAND
System Memory	512MB (4 Gbit) DDR3L On-Board
Operating System	Cudy OS with free updates
App Support	Cudy App for iOS, Android
System
Operating Modes	Access Point
	Router
	Mesh Node
Mesh System	Cudy Mesh Satellite
Mesh Backhaul	Wireless Backhaul
	Wired Backhaul
	Supports Multi-Band Backhaul (wired & wireless simultaneously)
Hardware
Ports	1x Gigabit Ethernet RJ-45 WAN/LAN Port
	1x Gigabit Ethernet RJ-45 LAN Port
	2x SMA Female Antenna Connectors
	1x RJ-11 Phone Jack for VoIP (VoNR/VoLTE) Service
Buttons	WPS Button, Reset Button
LEDs	Power, Internet, Wi-Fi, Cellular status LEDs
Power
Power Source	AC Power
Voltage	100V ~ 240V
Input	12V⎓1.5A
Power Consumption	13.2W (Max)
General
Colour	White
Certifications	FCC, CE
Dimensions	116 x 202mm (W x H)
VPN	WireGuard Client/Server
	OpenVPN Client/Server
	IPsec Client/Server
	Zerotier Client/Server
	PPTP Client/Server
	L2TP Client/Server
DNS Options	DNS over TLS (CloudFlare, Google, Quad9, Custom)
	Manual DNS
	Rebind Protection
	Override Client DNS
Warranty Information
Warranty	2 Year Warranty
