| SPECIFICATIONS | |
| Brand | Fractal Design |
| Series | Celsius+ |

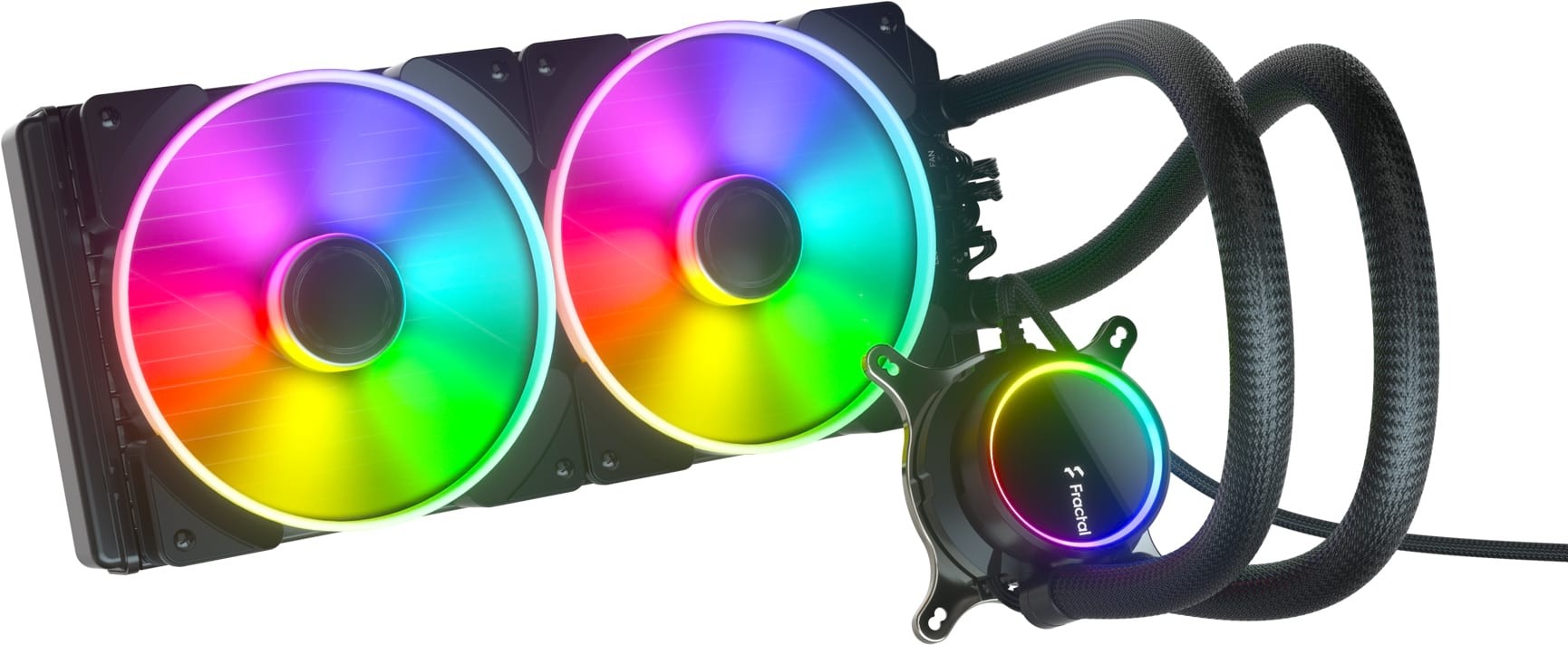

| Model | S28 Prisma Edition (FD-W-2-S2802) |
| Specifications | |
| Supported Sockets | Intel: 1700 / 1200 / 1150 / 1155 / 1156 / 1366 / 2011 / 2011-3 / 2066 |
| AMD: AM2 / AM2 / AM3 / AM3 / AM4 / AM5 / FM1 / FM2 / FM2 / TR4 (via included bracket in AMD Threadripper box) | |
| Coldplate Material | Copper |
| Thermal Paste | Pre-Applied |
| Block Height | 45 mm |
| Block Measurements | 86 x 75 mm (with fittings) |
| Block Diameter | 62 mm (main block body) |
| Fan Control | Dual mode (Auto/PWM) |
| Pump | |
| Rotational Speed | 3600 RPM (max) |
| Bearing Type | Ceramic bearing and shaft |
| PWM Control | Yes |
| Acoustical Noise | 20 dBA (full speed) |
| Maximum Pressure, 50°C | 1.46 mmH2O |
| Input Voltage | 12V DC |
| Input Current | 0.36A (without fans) |
| MTTF | 50,000 hours |
| Tubes | |
| Length | 400 mm |
| Material | Low-permeability rubber with braided nylon sleeves |
| Fittings | |
| Block Side | Articulating 90-degree elbow |
| Radiator Side | Fixed |
| Fan Specifications | |
| Fan Type | Prisma AL-14 PWM ARGB |
| Rotational Speed | 500 - 1700 RPM |
| Bearing Type | LLS (Long Life Sleeve) |
| PWM Control | Yes |
| Acoustical Noise | 34.1 dBA (max) |
| Airflow | 103.9 CFM (max) |
| Static Pressure | 2.38 mmH2O (max) |
| Input Voltage | 12V DC |
| input Current | 0.18A (max) |
| MTBF | 100,000 hours |
| Radiator Specification | |
| Dimensions | 143 x 30 x 324 mm |
| Housing Material | Aluminium |
| Fin Material | Aluminium |
| Fan Screw Threads | 6 - 32 |
| General | |
| Features | Tinted glass pump face with backlit logo and ARGB LED effects |
| Smart auto control mode dynamically adjusts fan and pump speeds for the ideal balance of silence and cooling performance | |
| Twist the pump face to change from auto to PWM mode for full user control | |
| ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation | |
| Sleeved tubing with concealed wiring connects power and ARGB for the entire system at the pump | |
| Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support | |
| Pre-applied thermal paste guarantees optimal application with even coverage | |
| Low-permeability rubber tubing with nylon braided sleeves for extra durability and an added touch of style | |
| Articulating elbow fittings make tubes easier to route while reducing tension on the pump | |
| Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects (Prisma versions only) | |
| Specially designed fan blades and outer ring produce a uniform glow (Prisma versions only) | |
| LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan | |
| Package Contents | Celsius+ S28 Unit |
| 2x 140 mm fans | |
| User Manual | |
| Mounting hardware for all listed sockets | |
| Fan and radiator mounting screws | |
| Warranty Information | |
| Warranty | 5 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Excellent Quality - Jason, 18 May 2022
Received this AIO promptly from Wootware. Very clean design with minimal cable management thanks to the included RGB/PWM fan splitter on the top of the radiator. Very well built and comes with all the necessary mounting brackets etc...
4 Stars because the fan cables could have been longer. You can daisy chain the RGB cables but unfortunately I had to use cable extensions on the PWM headers to reach the included PWM splitter board on the top of the radiator.
- Great AIO - Warren, 2 January 2022
Bought this AIO in Aug '21. Functionally, it is a brilliant cooler. Runs quiet(ish) even under heavy loads. Even though I have the Fractal Meshify S2 (Tempered Glass) case, which is quite a big case, I still couldn't top-mount the AIO. There is just not enough clearance above the ram (it pushes down on the ram and still doesn't close properly) so I had to front-mount it. Also, even though they provide a hub on the actual AIO for power/rgb, it is a considerable challenge trying to group the cables together and place them on the side away from the glass side panel. Again, just not enough room between side of fan where the cables are grouped (see https://youtu.be/48XTIKdjxKE for reference), and metal frame of the case, so I had to route it down and to the rear, making for a more visible cabling approach.
All in all though, an improvement over the CoolerMaster ML240, which was my previous AIO and now sits proudly in my son's PC. - Very Good Cooler - Steven, 6 October 2021
I installed it into a Phanteks P400A case. Fitting inside the case was not that easy. I needed to move the HDDs closer to the PSU and I could only get the cooler fitted with radiator pipes on the bottom as the case power switch was in the way to fit cooler with pipes at top. Even with pipes at bottom it was still a very snug fit against power switch. Other then that everything working and the fans are silent enough but again, this is my first liquid cooler I am installing so have no other reference. Temperature lower compared with the stock cooler that came with Ryzen 7 5600x, +/- 37 °C vs +/- 70 °C when idling. But again it was warmer outside when I checked temp with the stock cooler so might increase slightly on hotter days.
- Excellent performance with simple install - Abdul Qadir, 19 August 2021
Replaced my leaking CM ML240R with this. Performance is great, but the best part is the simple cable management and installation process. Every cooler should be this easy to install.
- Fantastic - Reece, 31 July 2021
Overall very quiet.
The Radiator is large and very well built.
The RGB looks very good.
Easy to install.
It is kinda hard to turn the physical dial from PWM to Auto but you don't often change if ever (Left mine on PWM).
Fitted in the front of this case (https://www.wootware.co.za/fractal-design-fd-c-mes2c-02-meshify-2-compact-dark-tempered-glass-black-steel-atx-mid-tower-desktop-chassis.html) but was very tight but worth it since it looks so good.
Keeps my i5 11th Gen 11400 at 35 Degrees on load with stock thermal paste. - AWESOME - David, 15 January 2021
This was my first AIO install and it was really easy, the AIO kit comes with everything required to mount and install the rad and fans.
The build quality of the entire AIO is excellent, I would recommend this to anyone thinking of upgrading from a air cooler to an AIO, Fractal all the way. - Awesome AIO! - Robert, 3 July 2020
Compared this with a 360mm AIO and the stock cooler that came with my 3950X, it keeps it at a low 30C on Idle at a 4.2Ghz all core clock (16/32)! Insane little cooler for any power build. Only problem is if you like intense RGB, these fans are not the right ones for you. But they do perform amazingly though! 9/10
