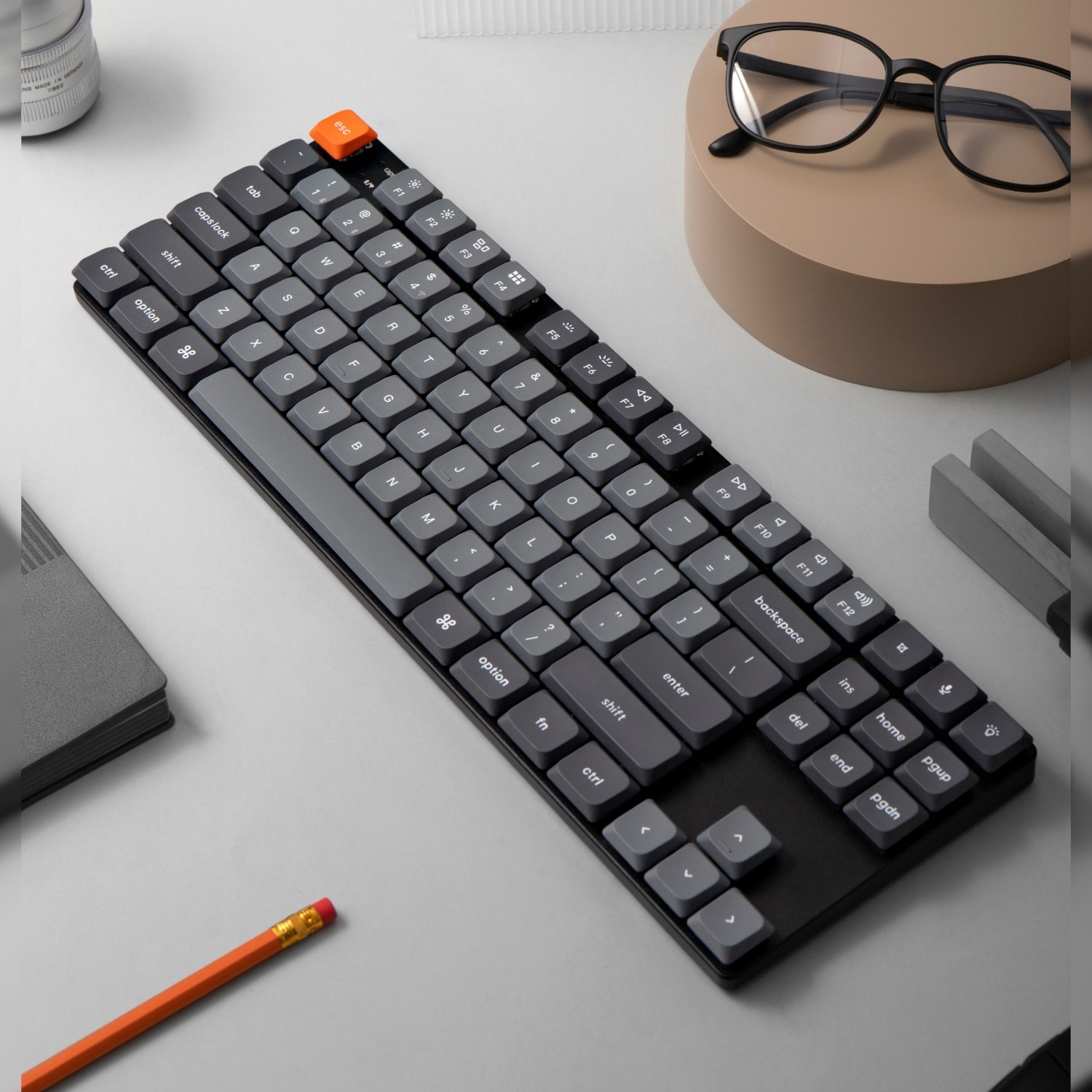

Keychron K1M-H3 K1 Max QMK/VIA 80% Wireless Gateron Low-Profile Brown mechanical switches Keyboard

Product ID: 55581

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- 80% TKL Layout With 87 Keys
- Gateron Low-Profile Brown Mechanical Switches
- Low-Profile Switches 31% Slimmer Than Standard Mechanical Switches
- Hot-Swappable Switches
- 22 Types Of RGB Backlight Effects
- 2.4GHz Wireless, Bluetooth 5.1, And USB Type-C Wired Connectivity
- 1000Hz Polling Rate In 2.4GHz And Wired Modes
- QMK/VIA Firmware And Keychron Launcher Web App Support
- Double-Shot PBT Keycaps With ANSI Layout
- 2000mAh Rechargeable Li-Polymer Battery
- Up To 95 Hours Backlight-Off Wireless Working Time
- Ultra-Slim Mechanical Keyboard
- 1 Year Warranty

26 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,099.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Keychron
Series	K1 Max
Model	K1M-H3
Design
Product Type	Low-Profile Wireless Custom Mechanical Keyboard
Layout	ANSI, 80% TKL
Number Of Keys	87
Number Of Multimedia Keys	12
Ultra-Slim Design	Yes
Colour	Black
Frame Material	ABS + Aluminium Frame
Typing Angle	3.37º, 4.2º And 6.7º
Switches
Switch Type	Gateron Low-Profile Brown mechanical switches
Switch Behaviour	Tactile
Operating Force	55 ± 15 gf
Pre-Travel	1.7 ± 0.4 mm
Travel Distance	3.0 ± 0.2 mm
Pre-Lubed	Yes
Sound Level	Medium
Suitable For	Midway Office/Gaming
Switch Construction	31% Slimmer Than Standard Mechanical Switches
Hot-Swappable	Yes
Keycaps And Stabilisation
Keycap Material	Low-Profile Double-Shot PBT
Switch Face	North-Facing
Stabilisers	Screw-In PCB Stabilisers, Redesigned To Minimise Wobble On Larger Keys Including Space Bar, Shift, Enter, And Backspace
Acoustic Foam	IXPE Acoustic Foam For Silent Keystrokes
Switch Support	Latex Foam
Hardware
Connectivity	2.4GHz Wireless, Bluetooth 5.1, USB Type-C Wired
Bluetooth Device Name	Keychron K1 Max
Polling Rate (2.4GHz And Wired Mode)	1000Hz
Polling Rate (Bluetooth Mode)	90Hz
N-Key Rollover (NKRO)	Yes For Both Wireless And Wired Modes
Backlight	22 Types Of RGB Backlight Options Plus Endless Possibilities
Battery	2000mAh Rechargeable Li-Polymer Battery
Wireless Working Time (Backlight Off)	Around 95 Hours, Lab Test Result May Vary By Actual Use
Wireless Working Time (RGB)	Around 50 Hours, Lowest Brightness
Firmware	QMK/VIA
Software	Keychron Launcher Web App
MCU	ARM Cortex-M4 32-Bit STM32F402, 256KB Flash
Compatibility And Environment
Compatible Systems	macOS, Windows, Linux
Operating Environment	-10 To 50℃
Physical Specifications
Dimensions (L x W x H)	346 x 118 x 18~24 mm
Product Weight	608g
Included Contents
Keyboard	Keychron K1 Max QMK/VIA Low-Profile Wireless Custom Mechanical Keyboard, Brown Switches, Black x1
Cable	Type-A To Type-C Cable x1
Receiver Adapter	Extension Adapter For Receiver x1
Wireless Receiver	Type-A 2.4GHz Receiver x1
Keycap And Switch Puller	x1
Warranty Information
Warranty	1 Year Warranty
