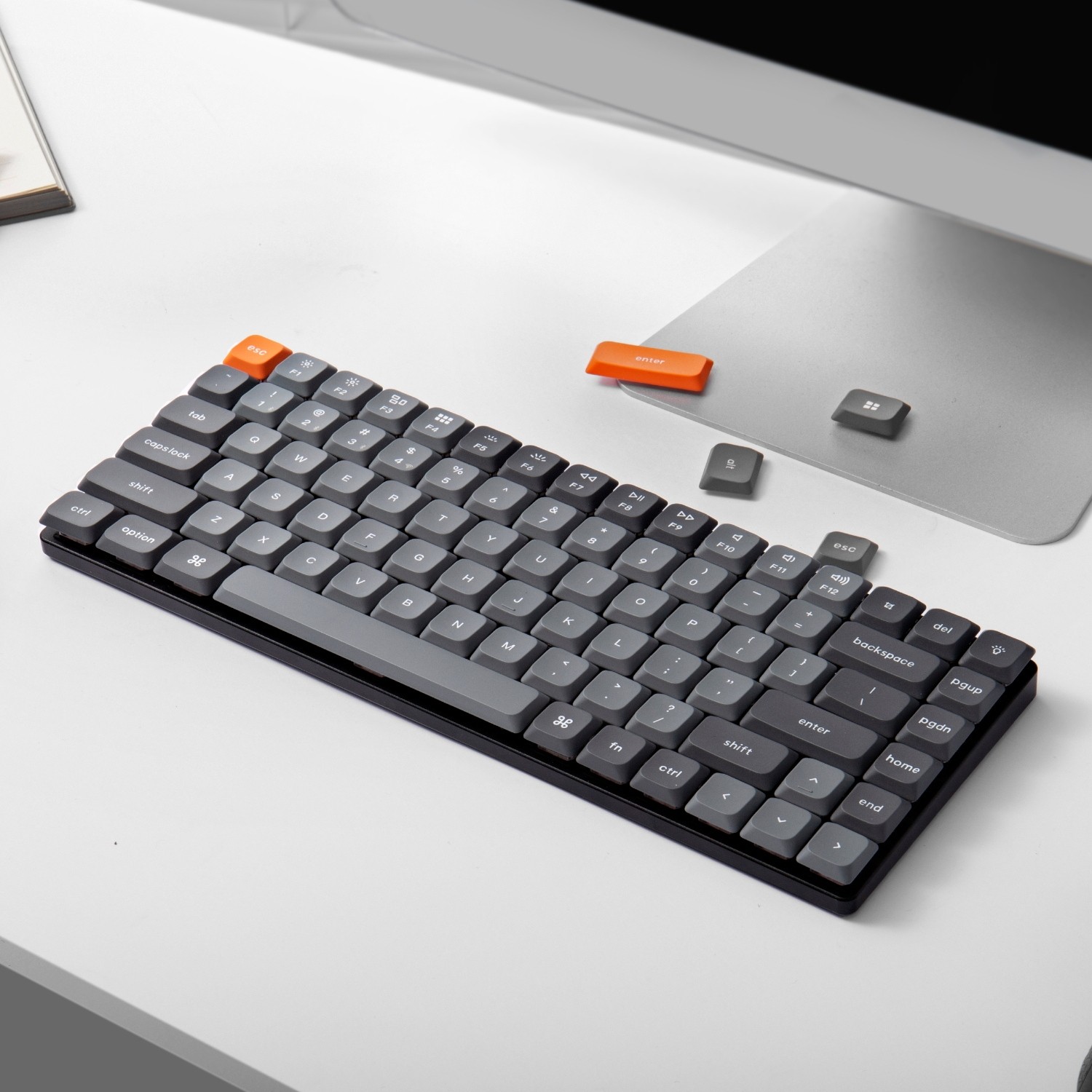

Keychron K3M-H3 K3 Max QMK/VIA Wireless 75% Gateron Low Profile Brown Tactile Switch Mechanical Keyboard

Product ID: 55456

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- 75% Compact Low Profile Layout
- Gateron Low Profile Brown Hot-Swappable Switches
- QMK/VIA Support
- LSA Low-Profile Double-Shot PBT Keycaps
- 22 RGB Backlight Options
- Tri-Mode 2.4GHz, Bluetooth 5.1, USB Type-C Wired Connectivity
- Polling Rate: 1000Hz (2.4GHz & Wired)
- IXPE Acoustic Foam Sound Dampening
- 1550mAh Li-Po Rechargeable Battery
- Battery Life: Up to 73 Hours (Backlight Off)
- Supports macOS, Windows, Linux
- 1 Year Warranty

26 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,199.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Keychron
Series	K3 Max
Model	K3M-H3
General
Colour	Black
Number of Keys	84 (75%)
Layout	ANSI
Frame Material	ABS + Aluminium
Typing Angle	2.5º / 4.2º / 6.5º
Compatible System	macOS / Windows / Linux
Dimensions	306 x 116 x 17-22 mm
Weight	525g
Operating Environment	-10 to 50℃
Switches
Switches	Gateron Low Profile Brown
Switch Face	North-facing
Switch Behaviour	Tactile
Operating Force	55 ± 15 gf
Pre-Travel	1.7 ± 0.4 mm
Travel Distance	3.0 ± 0.2 mm
Pre-Lubed	Yes
Sound Level	Medium
Suitable For	Midway Office/gaming
Hot-Swappable	Yes
Keycaps
Keycap Material	Low-profile double-shot PBT
Keycap Profile	LSA (Low-Profile Spherical-Angled)
Number of Multimedia Keys	12
Connectivity
Connection	2.4GHz / Bluetooth / Type-C wired
Bluetooth Version	5.1
Bluetooth Device Name	Keychron K3 Max
Polling Rate (2.4GHz and Wired Mode)	1000Hz
Polling Rate (BT Mode)	90Hz
N-Key Rollover (NKRO)	Yes for both wireless and wired modes
Lighting & Power
Backlit	22 types of RGB backlight options plus endless possibilities
Battery	1550mAh rechargeable li-polymer battery
Wireless Working Time (Backlit Off)	Around 73 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)	Around 42 hours (Lowest brightness)
Hardware & Features
MCU	ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Firmware Support	QMK/VIA
Acoustic Foam	IXPE acoustic foam
Stabilizers	Redesigned stabilizers to reduce key wobble
In The Box
Included Items	Keychron K3 Max QMK/VIA Low Profile Wireless Custom Mechanical Keyboard \| BROWN Switches – Black x1
	Type-A to Type-C Cable x1
	Extension Adapter for Receiver x1
	Type-A 2.4GHz Receiver x1
	Keycap & Switch Puller x1
Warranty Information
Warranty	1 Year Warranty
