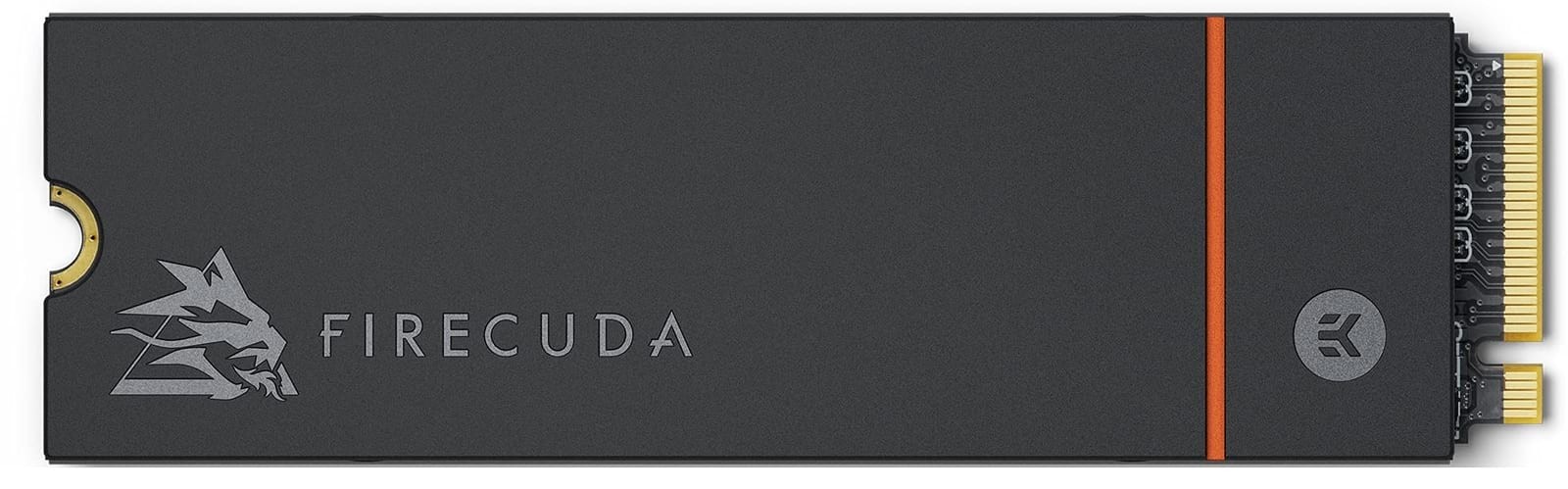

Seagate ZP500GM3A023 FireCuda 530 Heatsink 500GB M.2 (2280) NVMe PCI-E 4.0 Solid State Drive

More Views

Please note:
Images are for illustrative purposes only.

Seagate ZP500GM3A023 FireCuda 530 Heatsink 500GB M.2 (2280) NVMe PCI-E 4.0 Solid State Drive

Product ID: 38511

- 500GB Drive Capacity
- M.2 2280 with Heatsink
- NVMe PCIe Gen4 x4 Interface
- Seagate-Validated E18 Controller
- Up to 7,300 MB/s Sequential Read Speed
- Up to 3,000 MB/s Sequential Write Speed
- 4K QD32 Random Read: Up to 400,000 IOPS
- 4K QD32 Random Write: Up to 700,000 IOPS
- Pure Performance
- Compatible Storage Expansion for the PlayStation 5
- Custom Heatsink Technology Designed in Conjunction with EKWB
- Built for Sustained, Pro-Level Gaming & Accelerated Content Creation
- 3D TLC NAND Flash Memory
- MTBF: 1,800,000 Hours
- 5 Year Warranty or 640 TBW

52 Products

End of Life

Add to Wishlist

Customers Who Viewed This Product Purchased

Western Digital WDS500G5B0E WD BLUE SN5100 500GB M.2 2280 PCIe 4....

In stock with Wootware

R2,999.00

R2,299.00

Save: R 700!

ADATA SLEG-860-500GCS Legend 860 500GB M.2 2280 PCIe 4.0 x4 NVMe ...

In stock with Wootware

R2,199.00

R1,999.00

Save: R 200!

3 Review(s)

Product Description
Additional Information
Reviews (0)
Questions (0)

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product

Product Description Additional Information Reviews (0) Questions (0)

SPECIFICATIONS
Brand	Seagate
Series	FireCuda 530 Heatsink
Model	ZP500GM3A023
Technical Specifications
Capacity	500GB
Interface	NVMe PCIe Gen4 x4
Form Factor	M.2 (2280) with Heatsink
Form Factor	*Please verify that your system provides enough space for installation. The FireCuda 530 with heatsink exceeds dimensions of a standard M.2 2280 form factor. Heatsink is pre-installed and should not be removed as it can damage the SSD
NAND Flash	3D TLC
Flash Controller	Seagate-validated E18 controller
Power management
Active Power, Average	5.8 W
Idle Power PS3, Average	14 mW
Low Power L1.2 Mode	<5 mW
Environmental
Operating Temperature	0 - 70°C
Storage Temperature	-40 - 85°C
Shock Resistant	1,500 G
Performance
Sequential Read Speed (Max)	Up to 7,300 MB/s
Sequential Write Speed (Max)	Up to 3,000 MB/s
Random 4K QD32 T8 Read	400,000 IOPS
Random 4K QD32 T8 Write	700,000 IOPS
MTBF	1,800,000 Hours
TBW	640
Note	Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 ×64 on Windows 10 host with PCIe Gen4 motherboard.
General
TRIM	Yes
S.M.A.R.T.	Yes
Halogen-Free	Yes
RoHS Compliance	Yes
Features	Cool Speed Ahead
	Custom Heatsink Technology Designed in Conjunction with EKWB
	Compatible Storage Expansion for the PlayStation 5
Package Contents	Seagate 500GB FireCuda 530 Heatsink NVMe M.2 PCIe 4.0 SSD
User Manual
Product Dimensions	80.15 x 24.2 x 9.84 mm (LxWxH)
Product Weight	47 g
Warranty Information
Warranty	5 Year Warranty
