| SPECIFICATIONS | |
| Brand | Thermaltake |
| Series | PSU Accessories |

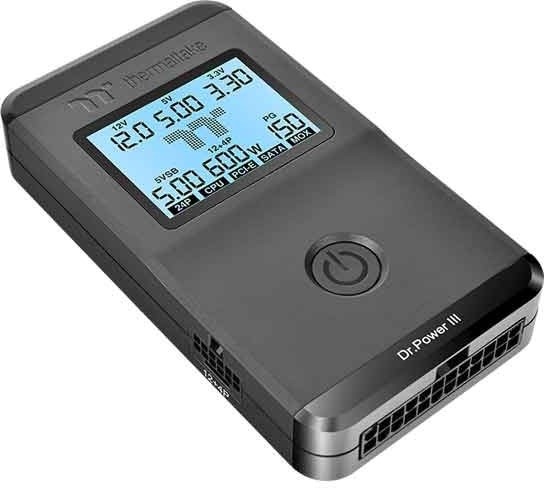

| Model | Dr. Power III ATX 3.1 PCIe 5.1 Power Supply Tester (AC-069-OO1NAN-A1) |
| Ports | 1x 24-Pin ATX 12V Connector |
| 1x 4/8-Pin EPS 12V Connector | |
| 1x PCIe 6/8-Pin GPU Connector | |
| 1x 16-Pin 12VHPWR/12V-2x6 Connector | |
| 1x SATA Power Connector | |
| 1x 4-Pin Peripheral (Molex) Connector | |
| LCD | White/Red Backlight real-time voltage display LCD |
| PSU Compatibility | Universal |
| PSU Standards | ATX 3.1, PCIe 5.1 |
| Test Measurements | |
| 5V Rail | Intel Standard: 4.75V Min, 5.25V Max |
| Measured Range: 4.60V Min, 5.40V Max | |
| 3.3V Rail | Intel Standard: 3.14V Min, 3.47V Max |
| Measured Range: 3.04V Min, 3.56V Max | |
| 12V Rail | Intel Standard: 11.4V Min, 12.6V Max |
| Measured Range: 11.0V Min, 13.0V Max | |
| 5Vsb Rail | Intel Standard: 4.75V Min, 5.25V Max |
| Measured Range: 4.60V Min, 5.40V Max | |
| Power Good Test | 100ms ≤ T ≤ 500ms |
| General | |
| Colour | Black |
| Dimensions | 74.8 x 135.8 x 24.4mm (W x L x H) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- great product - Jaco, 7 May 2026
Used it very briefly- the only type of use it really sees- made the process SO MUCH faster to test a psu. visual and audiable beep if there are any issues, also remains on a few seconds if power is cut to indicate where issue is. 110% reccommended, zero issues so far, readings seems accurate.
