| SPECIFICATIONS |
| Brand | TP-Link |
| Series | Omada EAP773 |
| Model | EAP773 |
| Hardware Features |
| Interface | 1× 10G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt PoE or 12V/2.5A DC |
| Max. Power Consumption | Support Smart Power Comsuption Management |
| - 24.05 W (802.3bt, full functionality); |
| - 20.92 W (12/2.5A, full functionality); |
| - 22.4 W (802.3at decrease 6GHz Power); |
| - 10.1. W (802.3af, radio off, only main chip and LAN working) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | - 2.4 GHz: 2× 3.0 dBi |
| - 5 GHz: 2× 3.0 dBi |
| - 6 GHz: 2× 3.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 |
| *Firmware update may be required. |

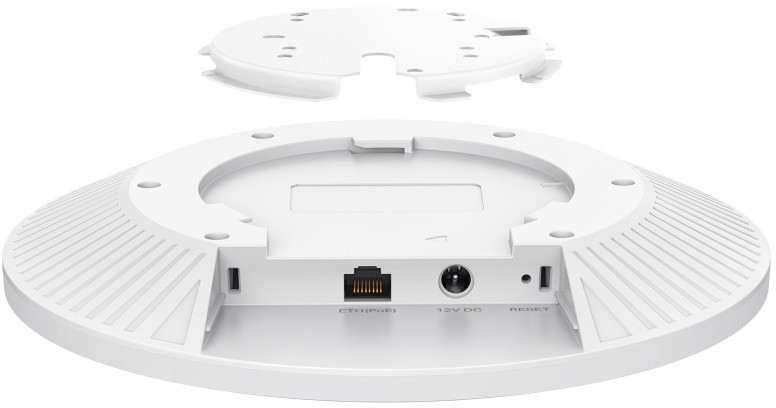

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| Wireless Features |
| Coverage | 140㎡(1500 ft²)§ |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)† |
| Wireless Functions | - MLO‡ |
| - 4K-QAM‡ |
| - MU-MIMO‡ |
| - HE320‡ |
| - Mesh△ |
| - BBS Coloring‡ |
| - OFDMA‡ |
| - Load Balance |
| - Band Steering |
| - Beamforming |
| - Airtime Fairness |
| - Multiple SSIDS:24(8 on each band) |
| - Wireless Schedule |
| - Reboot Schedule |
| - QoS(WMM) |
| - Rate Limit |
| - Static IP/Dynamic IP |
| - RADIUS Accounting |
| - MAC Authentication |
| Wireless Security | - Captive Portal Authentication△ |
| - Access Control |
| - Maximum number of MAC Filter: 4,000 |
| - Wireless Isolation Between Clients |
| - VLAN |
| - Rogue AP Detection |
| - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) |
| < 23 dBm (5 GHz, band 1&band 2, EIRP) |
| < 28 dBm (5 GHz, band 3, EIRP) |
| < 23dBm (6 GHz, EIRP) |
| Management Features |
| Omada App | Yes |
| Centralized Management | - Omada Cloud-Based Controller |
| - Omada Hardware Controller (OC300) |
| - Omada Hardware Controller (OC200) |
| - Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| Others |
| Certification | CE, FCC, RoHS, IC |
| Package Content | - EAP773 |
| - Installation Guide |
| - Ceiling/Wall Mounting Kits |
| Note: Power Adapter is NOT included. |
| Environment | - Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); |
| - Operating Humidity: 10%–90% non-condensing; |
| - Storage Humidity: 5%–90% non-condensing; |
| General |
| Certification | CE, FCC, RoHS, IC |
| Package Content | - EAP773 |
| - Installation Guide |
| - Ceiling/Wall Mounting Kits |
| Note: Power Adapter is NOT included. |
| Environment | - Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); |
| - Operating Humidity: 10%–90% non-condensing; |
| - Storage Humidity: 5%–90% non-condensing; |
| Warranty Information |
| Warranty | 2 Year Warranty |
