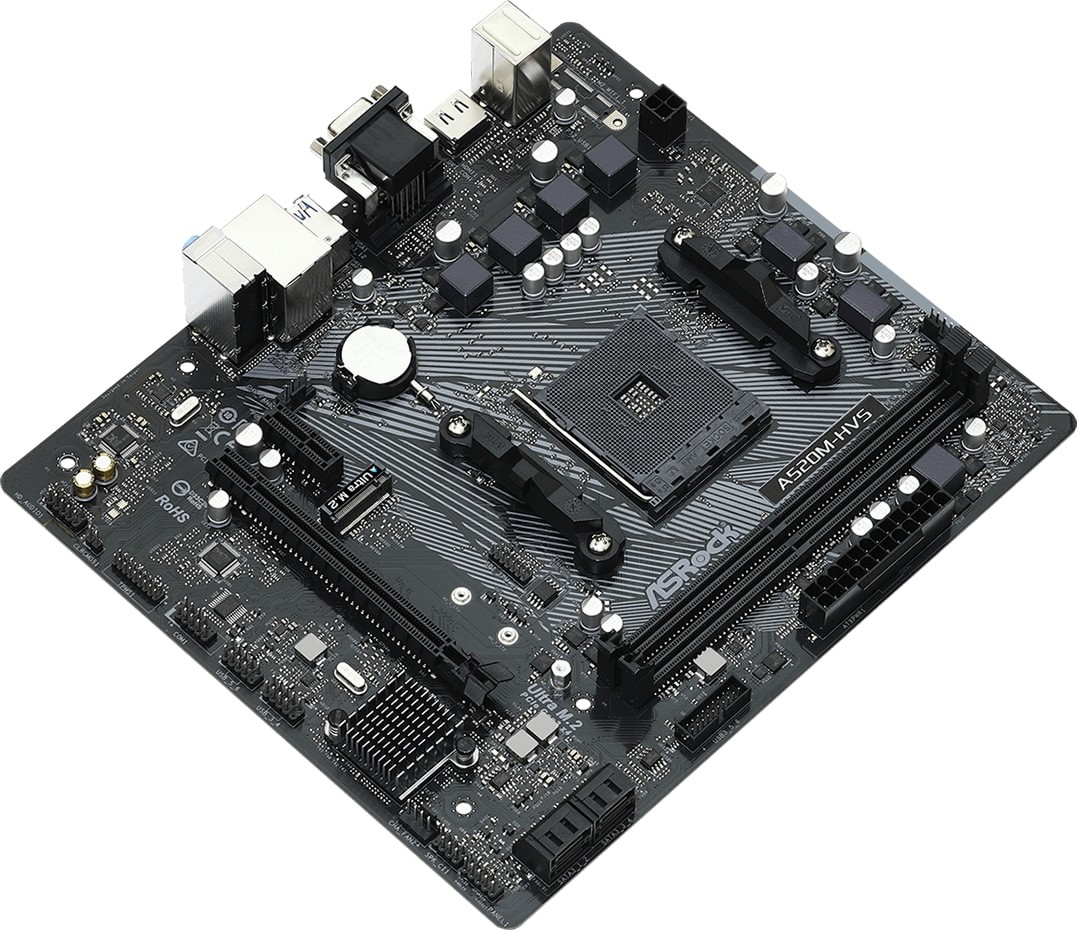

ASRock A520M-HVS AMD A520 Socket AM4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock A520M-HVS AMD A520 Socket AM4 Micro-ATX Desktop Motherboard

Product ID: 47655

Be the first to review this product

- Micro-ATX Form Factor
- AMD A520 Chipset
- Socket AM4
- Supports Ryzen 5000 / 5000G / 4000G-Series Processors
- Supports Ryzen 3000 / 3000G-Series Processors
- Supports Ryzen Processors with Radeon Vega Graphics
- 2x DDR4 DIMM Slots, Supports Up to 64GB
- Supports up to DDR4-4733 (OC)
- 1x PCIe 3.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 4x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.0b Port
- 1x VGA D-Sub Port
- 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
- 1x PS/2 Combo Port (Keyboard, Mouse)
- Realtek RTL8111H Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC897 High-Definition Audio Codec
- ASRock A-Tuning Software
- ASRock XFast LAN Utility
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty

19 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS PRIME A520M-K AMD AM4 Socket A520 Micro-ATX Desktop Motherbo...

In stock with Wootware

R2,299.00

R1,199.00

Save: R 1,100!

4 Review(s)

ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Ryzen AM4 Micro-ATX Desk...

In stock with Wootware

R2,699.00

R1,699.00

Save: R 1,000!

1 Review(s)

MSI A520M PRO AMD A520 Ryzen Socket AM4 Micro-ATX Desktop Motherb...

In stock with Supplier

R1,279.00

2 Review(s)

Gigabyte A520M DS3H V2 Rev 1.0/1.1 AMD A520 Ryzen Socket AM4 Micr...

In stock with Supplier

R1,499.00

2 Review(s)

Gigabyte A520I AC AMD A520 Socket AM4 Mini-ITX Desktop Motherboar...

In stock with Supplier

R2,347.00

Gigabyte A520M K V2 AMD A520 Socket AM4 Micro-ATX Desktop Motherb...

In stock with Supplier

R1,298.00

1 Review(s)

MSI A520M-A PRO AMD A520 Ryzen Socket AM4 Micro-ATX Desktop Mothe...

In stock with Supplier

R1,270.00

4 Review(s)

Gigabyte GA-A520M-S2H A520M S2H AMD AM4 Socket A520 Micro-ATX Des...

In stock with Supplier

R1,299.00

6 Review(s)

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	A520M Motherboard Series
Model	A520M-HVS
CPU Support	Supports AMD Ryzen 5000, Ryzen 4000G Processors
	Supports 3rd Gen AMD Ryzen Processors
	Supports Ryzen with Radeon Vega Graphics
	Supports 2nd Gen AMD Ryzen with Radeon Graphics
Chipset	AMD A520 Chipset
Memory Support
AMD Socket AM4	2x DDR4 memory slots, support up to 64GB
	AMD Ryzen series CPUs (Vermeer) support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
	AMD Ryzen series CPUs (Matisse) support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
	AMD Ryzen series APUs (Cezanne) support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
	AMD Ryzen series APUs (Renoir) support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
	Supports Dual Channel mode
	Support non-ECC UDIMM memory
Video
VGA D-Sub	1x VGA D-Sub port, supports a maximum resolution of 2048x1280 @ 60Hz or 1920x1200 @ 60Hz
HDMI	1x HDMI 2.1 port, supports a maximum resolution of UltraHD 4K @ 60Hz, Supports HDCP 2.3 and HDR
HDMI	Integrated AMD Radeon graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 3.0 x16 Physical, x16 Electrical Slot
AMD A520 Chipset	1x PCIe 3.0 x1 slot
Storage
CPU Direct	1x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
AMD A520 Chipset	4x SATA 6Gbps connectors
AMD A520 Chipset	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Networking
LAN	Realtek RTL8111H Gigabit LAN 10/100/1000Mb/s
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking

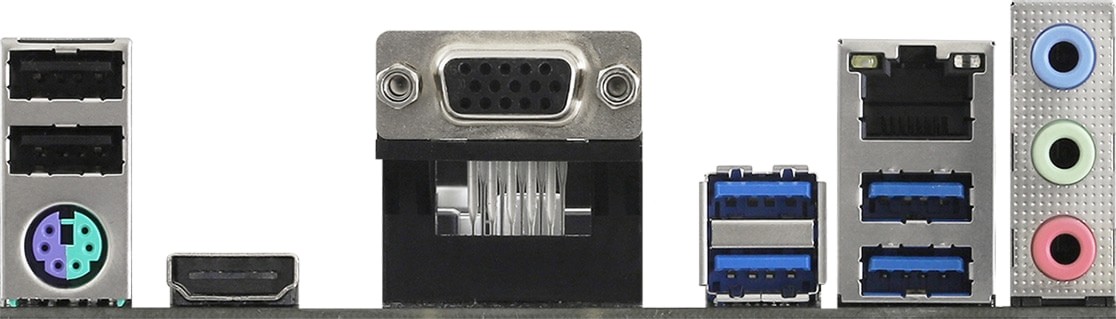

Connectivity
Ports	4x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port
	1x VGA D-Sub Port
	3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
	1x PS/2 Combo Port (Keyboard, Mouse)
	1x Realtek RTL8111H Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A

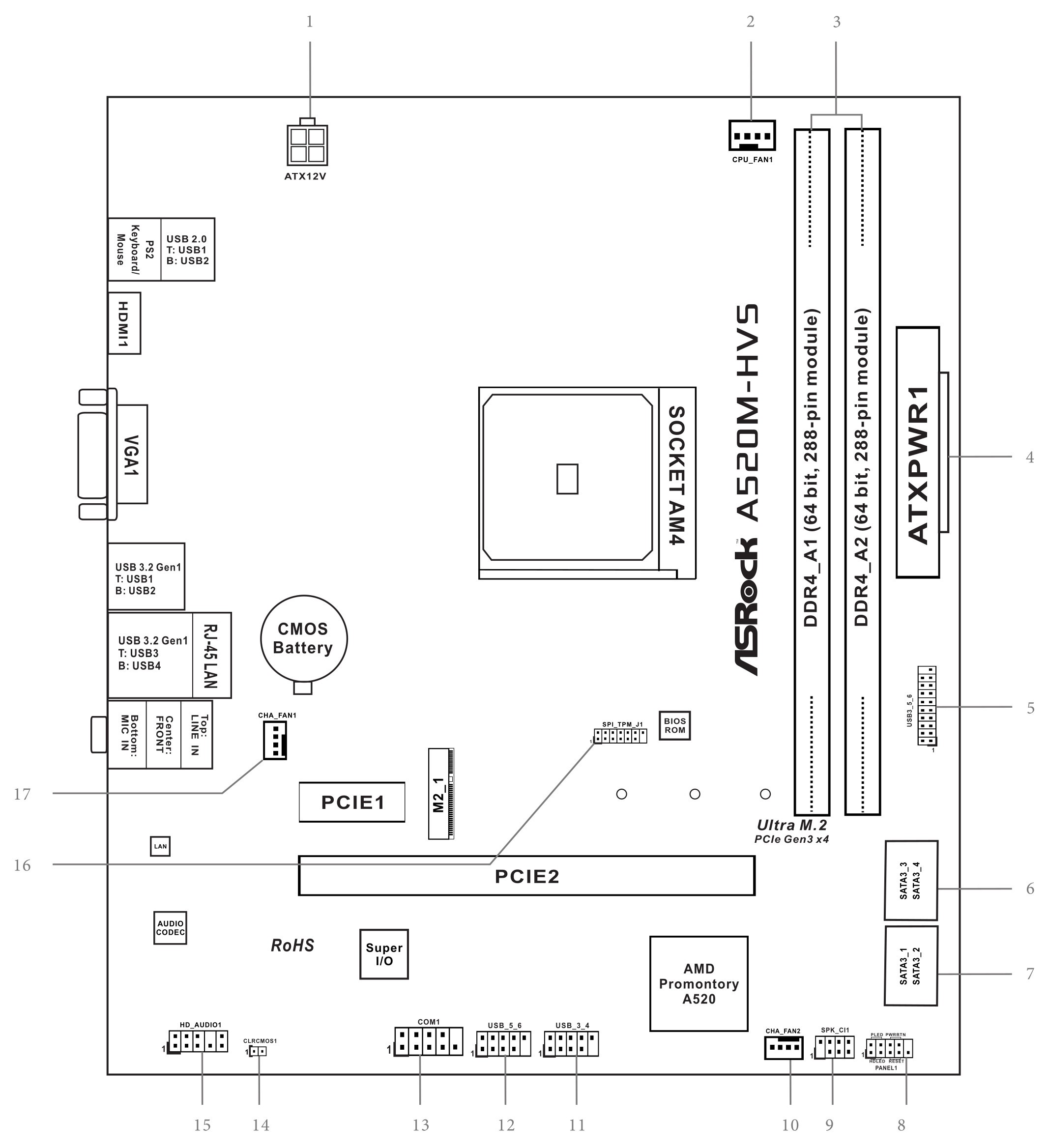

General
Internal Connectors	1x SPI TPM Header
	1x COM Port Header
	1x Chassis Intrusion and Speaker Header
	1x CPU Fan Connector (4-pin)
	2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector
	1x 4 pin 12V Power Connector
	1x Front Panel Audio Connector
	2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
I/O Controller	N/A
LED Displays	N/A
BIOS	1x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	ACPI 5.1, SMBIOS 2.3
Form Factor	Micro-ATX Form Factor, 230 x 201 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Boxed Accessories	Quick Installation Guide
	Support CD
	I/O Shield
	2x SATA Data Cables
	1x Screw for M.2 Socket
Warranty Information
Warranty	3 Year Warranty
