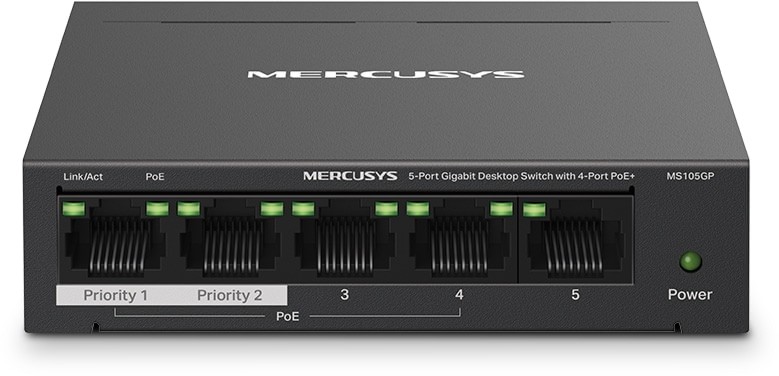

MERCUSYS MS105GP 5-Port Gigabit Ethernet 4-Port 65W PoE Desktop Unmanaged Switch

More Views

Please note:
Images are for illustrative purposes only.

MERCUSYS MS105GP 5-Port Gigabit Ethernet 4-Port 65W PoE Desktop Unmanaged Switch

Product ID: 49570

- 5-Port Gigabit Ethernet with 4-Port 65W PoE Switch
- Implements IEEE 802.3af & IEEE 802.3at Standards
- 30W Per Port, 65W Shared Power Budget
- Extend Mode Supports 250-Meter Cable Lengths
- Dedicated Port Prioritisation
- 1x Gigabit Ethernet RJ-45 Port
- 4x Gigabit Ethernet PoE RJ-45 Ports
- Passive Cooling
- One-Click Traffic Separation Function Switch
- Durable Metal Construction
- Wall Mount Option
- 3 Year Warranty

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

TP-Link TL-SG105-M2 5-Port 2.5 Gigabit Ethernet Unmanaged Desktop...

In stock with Supplier

R802.00

TP-Link TL-SG108-M2 8-Port 2.5 Gigabit Desktop Switch

In stock with Supplier

R1,182.00

TP-Link Omada ES220GMP 20-Port Gigabit 16-Port PoE+ Easy Managed ...

In stock with Supplier

R2,695.00

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch

In stock with Supplier

R2,099.00

1 Review(s)

TP-Link Omada ES210GMP 10-Port Gigabit 8-Port PoE+ Easy Managed S...

In stock with Supplier

R1,466.00

Tenda SG105 5-port Gigabit Fast Ethernet Desktop Switch

In stock with Supplier

R156.00

TP-LINK TL-SG1016D 10/100/1000Mbps 16-Port Gigabit 13-inch Rackmo...

In stock with Supplier

R999.00

TP-LINK TL-SG1024D 10/100/1000Mbps 24-Port Gigabit 13-inch Rackmo...

In stock with Supplier

R1,425.00

Cudy GS105D V4 5-Port Gigabit Ethernet Desktop Unmanaged Switch

In stock with Supplier

R154.00

TP-LINK TL-SG1005D 10/100/1000Mbps 5-Port Gigabit Desktop Switch

In stock with Supplier

R251.00

Features
Product Description
Additional Information
Reviews (0)
Questions (0)

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product

Features Product Description Additional Information Reviews (0) Questions (0)

SPECIFICATIONS
Brand	MERCUSYS
Series	PoE Desktop Switch Series
Model	MS105GP 5-Port Gigabit Ethernet 4-Port 65W PoE
Hardware
Dimensions	99.8 x 98 x 25mm (W x D x H)
PoE Ports	RJ45 Standard
	Standard: Compliant with 802.3 af/at Powered Devices
	PoE Ports: Port 1- Port 4
	PoE Power Budget: 65 W
Interfaces	5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply	Output: 53.5V/1.31A
Installation	Desktop
Installation	Wall Mount
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates	10/100/1000 Mbps at Half Duplex
Data Rates	20/200/2000 Mbps at Full Duplex
Jumbo Frame	9 KB
LED	Ethernet Ports (1, 2, 3, 4, 5), Power
Mac Address Table	2K
Max Power Consumption	3.13W（220 V / 50 Hz, no PD connected）
Max Power Consumption	75.15W（220 V / 50 Hz, with 65W PD connected）
Max Heat Dissipation	10.64 BTH/h （no PD connected)
Max Heat Dissipation	255.51 BTH/h（with 65W PD connected）
Software
Transfer Method	Store and Forward
Management	Plug and Play
Advanced Features	802.3x Flow Control
	IGMP Snooping V1/V2/V3
	Isolation Mode
	Extend Mode
General
Package Contents	5-Port Gigabit Desktop Switch with 4-Port PoE (MS105GP)
	Power Adapter
	Quick Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% RH non-condensing
	Storage Humidity: 5%~95% RH non-condensing
Warranty Information
Warranty	1 Year Warranty
