| SPECIFICATIONS | |
| Brand | TL-Link |
| Series | Unmanaged Switches |

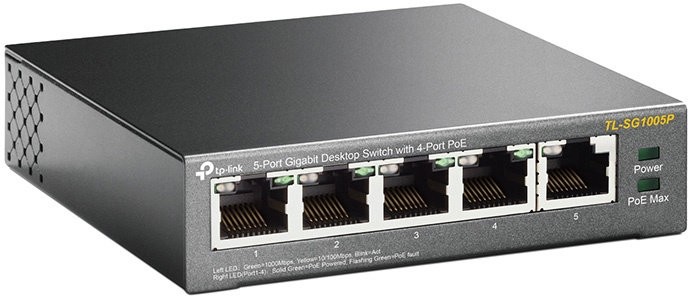

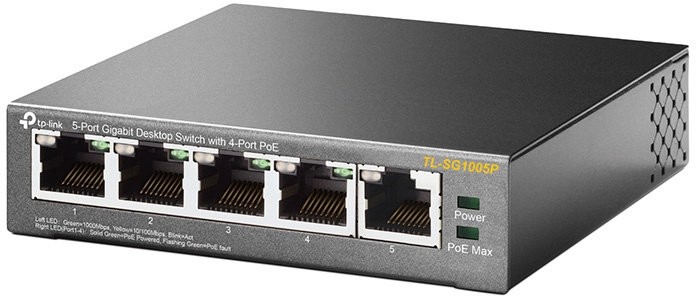

| Model | TL-SG1005P |
| Colour | Black |
| Interface | 5x 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m) |
| EIA/TIA-568 100Ω STP (Maximum 100m) | |
| 100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m) | |
| EIA/TIA-568 100Ω STP (Maximum 100m) | |
| 1000BASE-T: UTP Category 5, 5e, 6 or Above Cable (Maximum 100m) | |
| EIA/TIA-568 100Ω STP (Maximum 100m) | |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3 af Compliant |
| PoE Ports: Port1 - Port4 | |
| Power Supply: 56W | |
| Backbound Bandwidth | 10Gbps |
| MAC Address Table | 2K |
| Transfer Method | Store-And-Forward |
| Advanced Features | Compatible With IEEE 802.3af Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| EEE802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Power Consumption (Maximum) | 4.0W (No PD Load) |
| 64.4W (With 56W PD Load) | |
| Heat Dissipation (Maximum) | 13.5BTU/h (No PD Load) |
| 219.9BTU/h (With 56W PD Load) | |
| Compliance | FCC, RoHS |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -40 - 70°C |
| Dimensions | 100 x 98 x 25 mm |
| Package Contents | TL-SG1005P |
| Power Adapter | |
| Installation Guide | |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
