| SPECIFICATIONS | |
| Brand | Arktec |
| Series | Alpha Force |
| Model | AK-H110M |
| CPU Support | Intel Socket 1151 |
| Support Intel 6th/7th/8th/9th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU | |
| Chipset | Intel H110 Chipset |
| On-Board Graphics | Integrated Graphics Processor-Intel HD Graphics Support |
| Memory | Dual-Channel DDR4 2400/2666/3000MHz Memory Max. up to 32GB each |
| DIMM | 2x Memory Slots |
| LAN | On board Realtek RTL8105E 10/100 Mbps Adaptive Network Interface Card |
| Audio | Chip integrated by Realtek 661 on board, Supports 6-channel audio-out |
| Storage | 3x SATA 3.0 port |
| 1x M.2 2280 SSD Slot (supports PCIE & SATA mode) | |

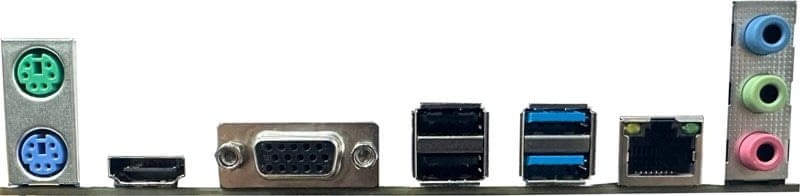

| Rear I/O | 1x PS/2 Mouse Port |
| 1x PS/2 Keyboard Port | |
| 1x VGA Port | |
| 1x HDMI Port | |
| 2x USB 2.0 Port | |
| 2x USB 3.0 Port | |
| 1x LAN Jack | |
| 3x Audio Jack | |
| Internal I/O | 2x USB 2.0 Header Supports Additional |
| 3x USB 2.0 Ports | |
| 1x USB 3.0 Header Supports Additional | |
| 2x USB 3.0 Ports | |
| 1x Front Panel Audio Header | |
| Expansion Slots | 1x PCI Express x16 Slot |
| Form Factor | Micro-ATX |
| OS Support | Support Windows 7 / 8 / 8.1 / 10(x64) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Decent budget board - John, 15 May 2025
Decent board if you have an older CPU lying around. Works well with i7-6700 CPU. Board is tiny, but everything fits. My CPU cooler is barely clearing the heatsink of the Northbridge, but my cooler is bigger than a normal one.
I installed a M.2 Sata drive. For this, I had to change the jumpers to switch the M.2 slot from NVME to Sata. Board came with documentation showing relevant jumper positions. Diagram also shows the layout of all the headers.
Boot menu is in the bios settings (Del key) under 'Save & Exit', under 'Boot Override'.
I also had an issue where the board would still be powered on with fans still spinning, when shutting down. Overcame this by disabling 'fast boot' in Windows power options. Otherwise no issues. Board works perfectly.
