| SPECIFICATIONS |
| Brand | ASRock |
| Model | H610M-HVS/M.2 R2.0 |
| CPU | - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) |
| - 6+1+1 Power Phase design |
| - Supports Intel Hybrid Technology |
| - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | - Intel H610 |
| Memory | - Dual Channel DDR4 Memory Technology |
| - 2 x DDR4 DIMM Slots |
| - Supports DDR4 non-ECC, un-buffered memory up to 3200 |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) |
| - Max. capacity of system memory: 64GB |
| - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| - ACPI 6.0 Compliant wake up events |
| - SMBIOS 2.7 Support |
| - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) |
| - Dual graphics output: support HDMI and D-Sub ports by independent display controllers |
| - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
| * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| - Supports Surge Protection |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| - 1 x Realtek RTL8111H |
| - Supports Wake-On-LAN |
| - Supports Lightning/ESD Protection |
| - Supports Energy Efficient Ethernet 802.3az |
| - Supports PXE |
| Slots | CPU: |
| - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* |
| Chipset: |
| - 1 x PCIe 3.0 x1 Slot (PCIE1) |
| *Supports NVMe SSD as boot disks |
| Storage | Chipset: |
| - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* |
| - 4 x SATA3 6.0 Gb/s Connectors |
| *Supports NVMe SSD as boot disks |
| Supports ASRock U.2 Kit |
| Connector | - 1 x SPI TPM Header |
| - 1 x Chassis Intrusion and Speaker Header |
| - 1 x CPU Fan Connector (4-pin)* |
| - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** |
| - 1 x 24 pin ATX Power Connector |
| - 1 x 8 pin 12V Power Connector |
| - 1 x Front Panel Audio Connector |
| - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
| CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |

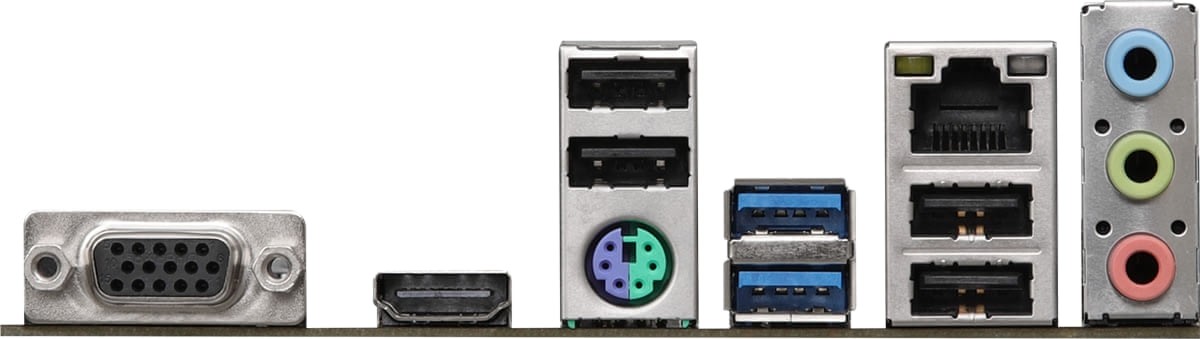

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| - 1 x D-Sub Port |
| - 1 x HDMI Port |
| - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| - 4 x USB 2.0 Ports (Supports ESD Protection) |
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software |
| - ASRock Motherboard Utility (A-Tuning) |
| UEFI |
| - ASRock EZ Mode |
| - ASRock Full HD UEFI |
| - ASRock My Favorites in UEFI |
| - ASRock Instant Flash |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield |
| - 2 x SATA Data Cables |
| - 1 x Screw for M.2 Socket |
| Hardware Monitor | - Fan Tachometer: CPU, Chassis/Water Pump Fans |
| - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans |
| - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans |
| - CASE OPEN detection |
| - Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| - Solid Capacitor design |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
