| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | H610 Motherboard Series |
| Model | H610M-K-V2-REV-10 |
| CPU Support | Intel Socket LGA1700 for 14th & 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 Express |
| Memory Support | |
| 14th & 14th Gen Core i9/i7 Processors | Support for DDR5 5600/5200/4800/4400 MT/s memory modules |
| 13th Gen Intel Core i5/i3 | Support for DDR5 4800/4400 MT/s memory modules |
| 12th Gen Intel Core, Pentium Gold and Celeron | Support for DDR5 4800/4400 MT/s memory modules |
| 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4K 4096x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.2 port, supporting a maximum resolution of 4K 4096x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical slot |
| Intel H610 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) |
| Intel H610 Chipset | 4x SATA 6Gbps ports |
| Intel Rapid Storage Technology supports SATA RAID | |
| Networking | |
| LAN | Realtek Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Connectivity | |

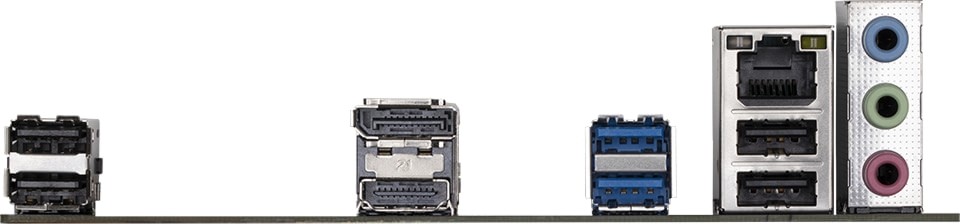

| Ports | 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 (TMDS) Port | |
| 1x DisplayPort 1.2 Port | |
| 3x 3.5mm Audio Jacks | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN Port | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x system fan header | |
| 1x M.2 Socket 3 connector | |
| 2x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) | |
| 1x Clear CMOS jumper | |
| Buttons | N/A |
| LED Displays | N/A |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 226 x 185mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
