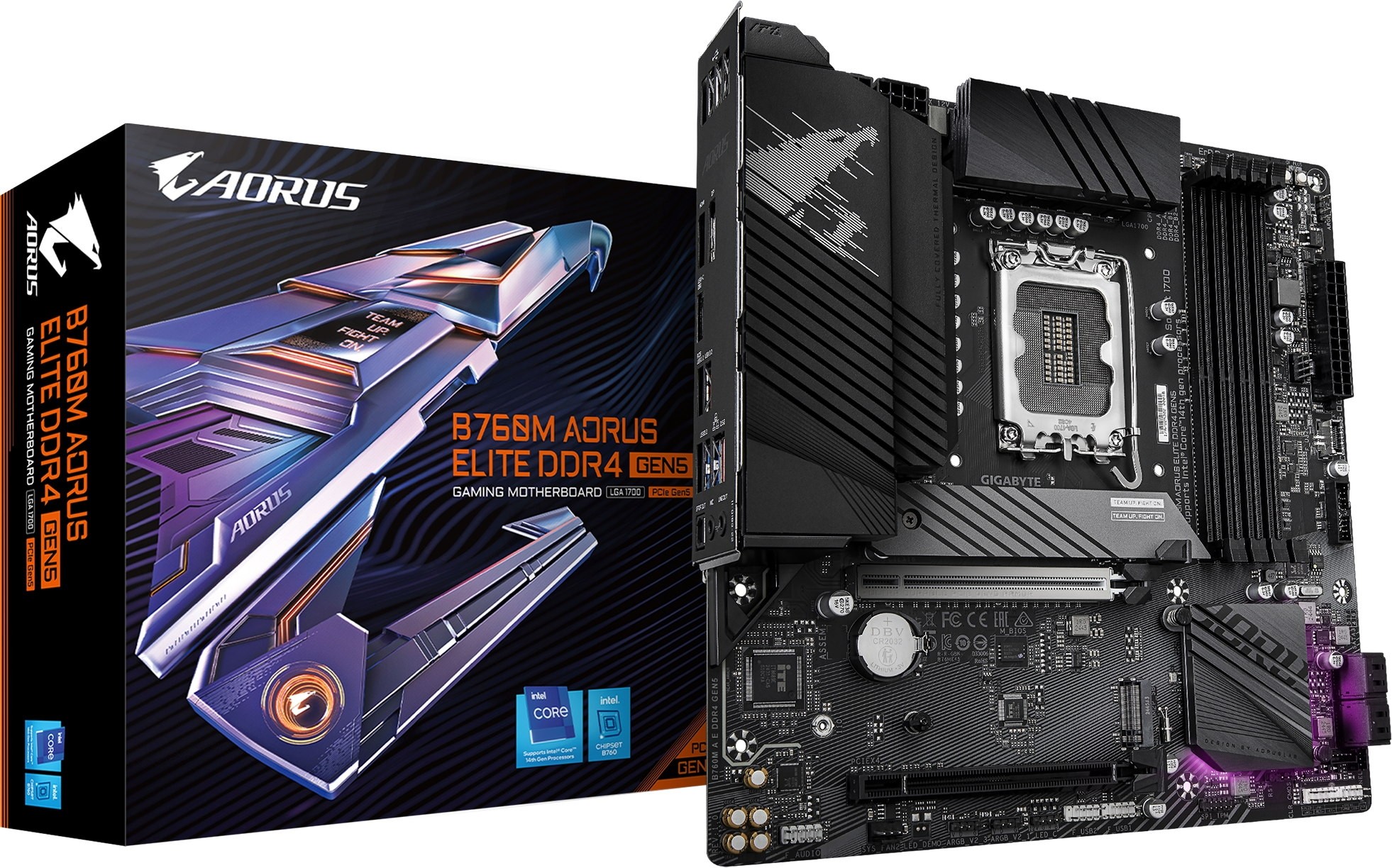

Gigabyte B760M AORUS ELITE DDR4 GEN5 Intel B760 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B760M AORUS ELITE DDR4 GEN5 Intel B760 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard

Product ID: 54220

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- Micro-ATX Form Factor
- Intel B760 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- Q-Flash Plus BIOS Flash Supports Future Processors
- 4x DDR4 DIMM Slots, Supports Up to 128GB (4x32GB)
- Supports up to DDR4-5333 (OC)
- Supports Intel XMP 2.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports USB 10Gbps Type-C Front-Panel Header
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 3x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 1x DisplayPort 1.2 Port
- 2x 3.5mm Audio Jacks (Line Out, Microphone)
- 1x Optical S/PDIF Audio Out Port
- 2x Antenna Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC1220 High-Definition Audio Codec
- Thermal Armor Advanced Twin 12+1+1 Digital VRM Solution
- Gigabyte M.2 Thermal Guard
- Gigabyte RGB Fusion Software
- Gigabyte Smart Fan 6 Technology
- Gigabyte Control Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

186 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,089.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	AORUS Elite Motherboard Series
Model	MB-GB760MAED4
CPU Support	Supports Intel 12th, 13th, 14th Gen Processors
Chipset	Intel B760 Chipset
Memory Support
Intel B760 Chipset	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x DisplayPort 1.2 Port, supporting a maximum resolution of 4096x2304 @ 60Hz, supports HDCP, HDR
HDMI	1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4096x2160 @ 60Hz, supports HDCP, HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Electrical Slots (x16 Physical) (PCIEX16)
Intel B760 Chipset	1x PCIe 4.0 x4 Electrical Slots (x16 Physical) (PCIEX4)
Storage
CPU Direct	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Intel B760 Chipset	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4x SATA 6Gbps connectors
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps
Audio
Codec	Realtek ALC1220 High-Definition Audio Codec
	Support for 7.1 Surround with front-panel jack retasking
	Support for S/PDIF Out
Connectivity

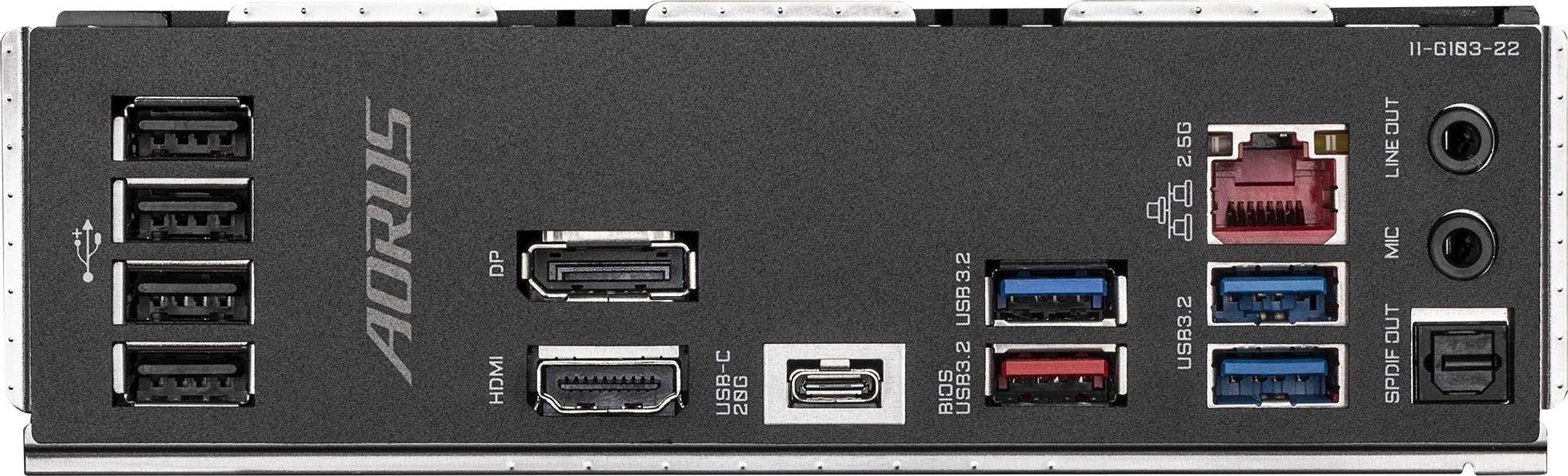

Ports	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-A Ports
	3x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	1x DisplayPort 1.2 Port
	2x 3.5mm Audio Jacks (Line Out, Microphone)
	1x Optical S/PDIF Audio Out Port
	2x SMA Connectors
Buttons	1x Q-Flash Plus BIOS button, 1x Reset Button (On Board)
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x 4-pin ATX 12V power connector
	1x CPU fan header
	3x system fan headers
	3x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 2 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	2x Thunderbolt add-in card connectors
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
	1x Q-Flash Plus button
	1x reset button
	1x reset jumper
	1x Clear CMOS jumper
LEDs	4x On-Board POST Debug LEDs
I/O Controller	iTE I/O Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Warranty Information
Warranty	3 Year Warranty
