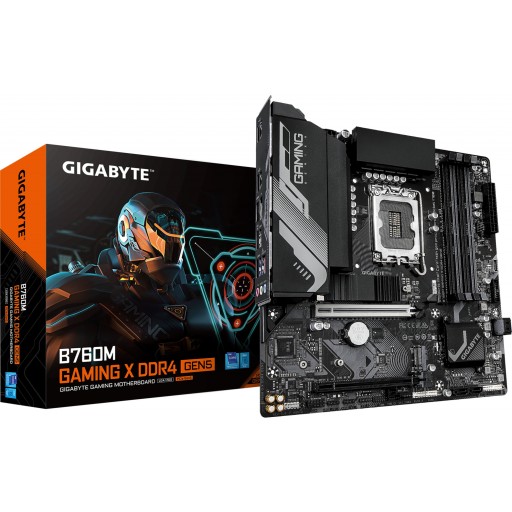

Gigabyte B760M GAMING X DDR4 GEN5 Intel B760 Raptor Lake LGA 1700 DDR4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B760M GAMING X DDR4 GEN5 Intel B760 Raptor Lake LGA 1700 DDR4 Micro-ATX Desktop Motherboard

Customer's Choice

for Intel B760 Micro ATX Motherboards

Product ID: 52197

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

4.8

5 Review(s) | Add Your Review

- Micro-ATX Form Factor Motherboard
- Intel B760 Chipset
- LGA 1700 Socket Supports 12th, 13th, 14th Gen Core Processors
- 4x DDR4 DIMM Slots, Up to 128GB (4x32GB)
- Supports Up to DDR4-5333MHz (OC)
- Supports Intel XMP 2.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slots (x16 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports USB 10Gbps Type-C Front Panel Chassis Port
- 3x USB 5Gbps Type-A Ports
- 5x USB 2.0 Type-A Ports
- 1x DisplayPort 1.2 Port
- 1x HDMI 2.1 (TMDS) Port
- 3x 3.5mm Audio Jacks
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- 8+1+1 Hybrid Digital VRM Solution
- Gigabyte EZ-DIY POST LED Array (CPU, MEM, VGA, BOOT)
- Gigabyte Q-Flash Plus BIOS Flashback
- Gigabyte EZ-Latch PCIe Slot Design
- Gigabyte Control Center with RGB Fusion
- Supports Windows 11 64-bit
- 3 Year Warranty

172 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,766.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (5)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	GAMING X Series
Model	B760M GAMING X DDR4 GEN5
CPU Support	LGA1700 socket with support for 12th, 13th, 14th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel B760 Express
Memory Support
Intel 12th, 13th & 14th Gen Series	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
	4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x DisplayPort 1.2 Port, supporting a maximum resolution of 4K @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3
HDMI	1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for HDMI 2.1 and HDCP 2.3
HDMI	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset	1x PCIe 3.0 x16 Physical, x4 Electrical Slot
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Intel B760 Chipset	1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4x SATA 3.0 6Gbps connectors
	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 High-Definition Codec
Codec	7.1-Channel USB High Performance Audio with front-panel jack retasking, jack detection
Connectivity
Ports	5x USB 5Gbps Type-A Ports
	5x USB 2.0 Type-A Ports
	1x DisplayPort 1.2 Port
	1x HDMI 2.1 (TMDS) Port
	3x 3.5mm Audio Jacks
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
Buttons	1x Q-Flash Plus BIOS Flashback Button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	3x system fan headers
	3x addressable LED strip headers
	1x RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x S/PDIF Out header
	1x USB Type-C header, with USB 3.2 Gen 2 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	2x Thunderbolt add-in card connectors
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x serial port header
	1x Q-Flash Plus button
	1x reset jumper
	1x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
LED Displays	1x QLED Status LED, 4x POST Debug LEDs (BOOT, CPU, VGA, RAM)
BIOS	1x 256 Mb flash
	UEFI AMI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
	Multi-language
Form Factor	Micro-ATX Form Factor, 244 x 244mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	User's Manual
	M.2 screw
	Two SATA cables
	One pack of M.2 thick/thin rubber pads
Warranty Information
Warranty	3 Year Warranty
