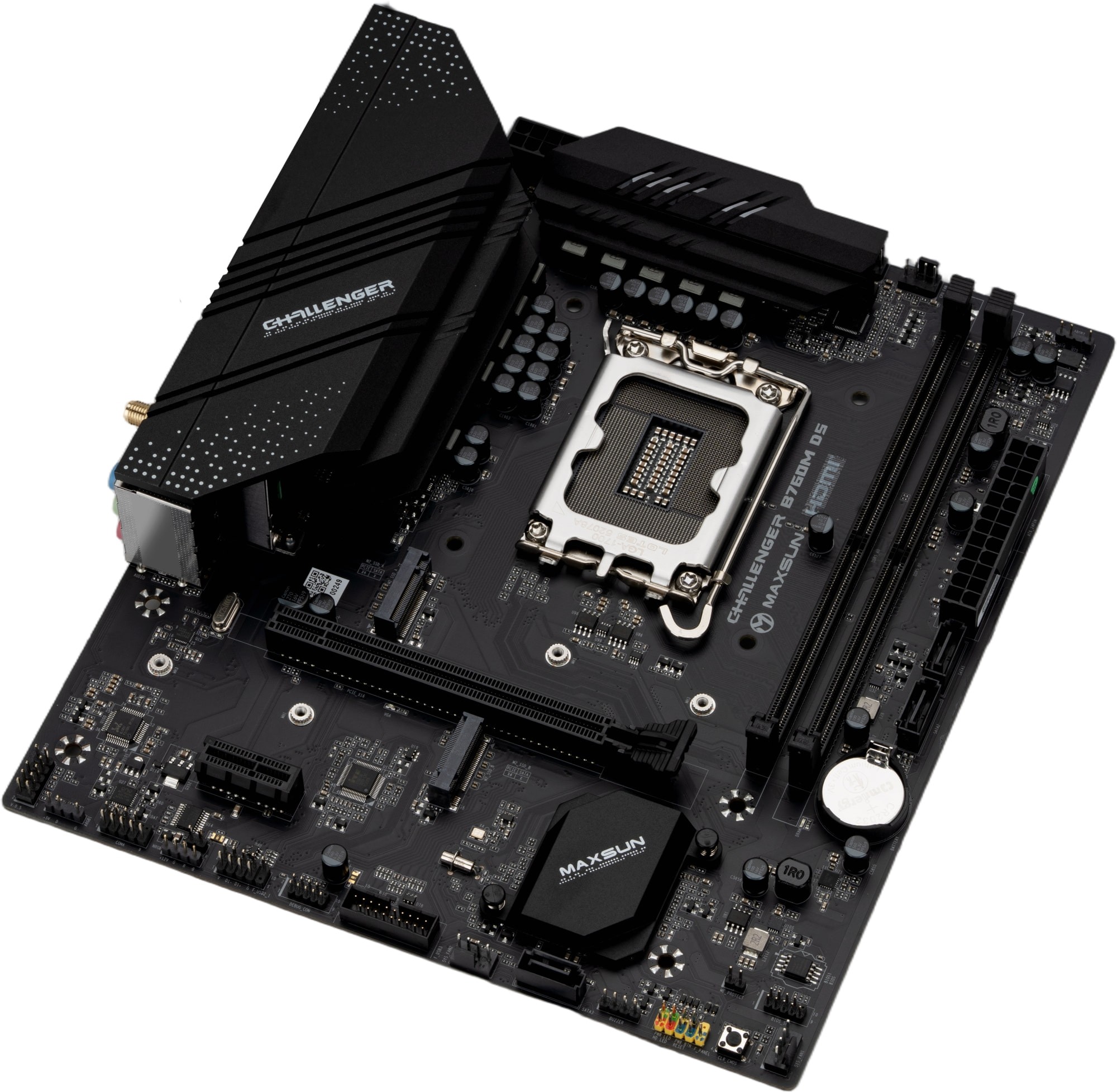

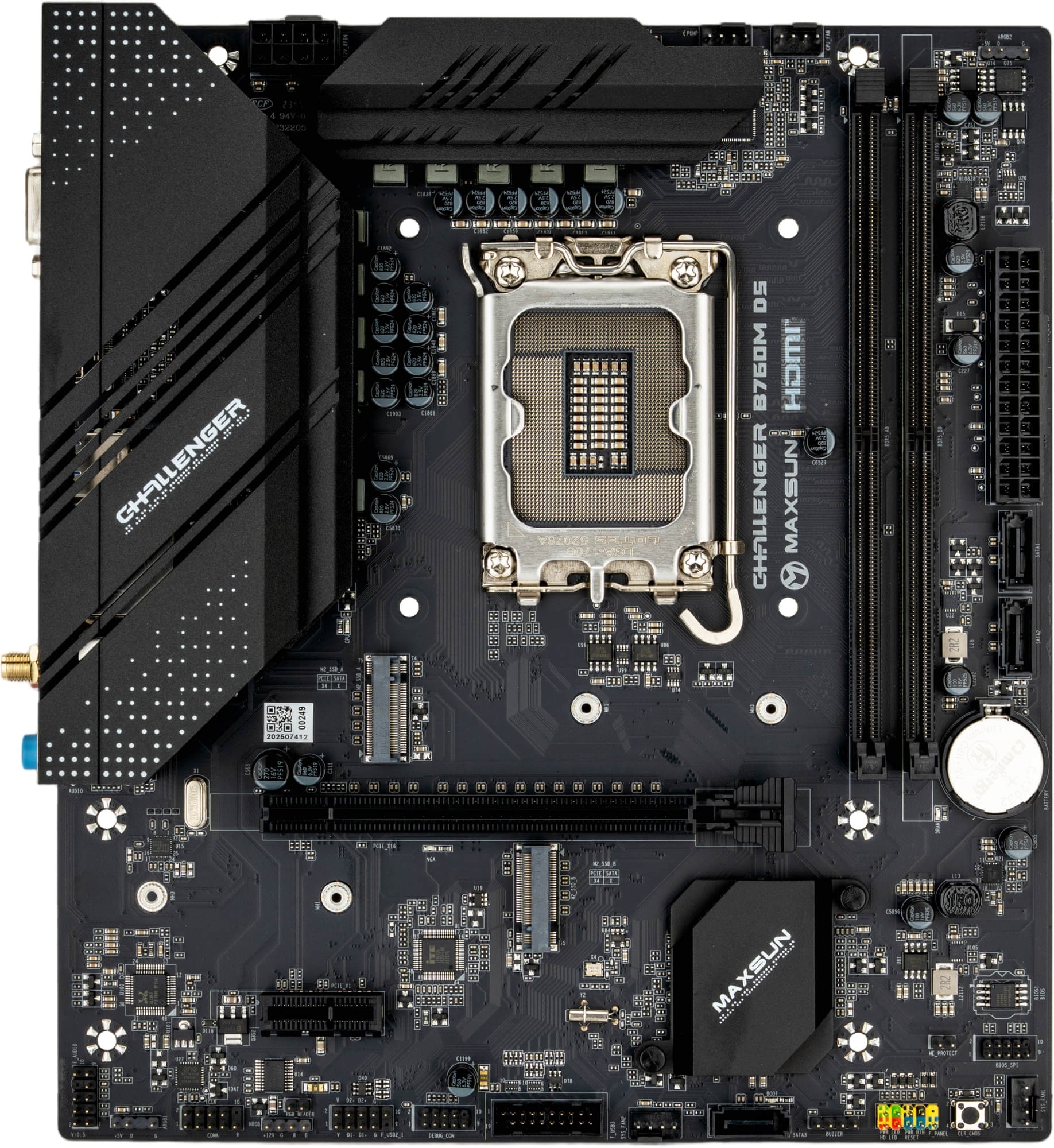

MAXSUN Challenger B760M D5 WIFI Intel B760 Raptor Lake LGA 1700 DDR5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MAXSUN Challenger B760M D5 WIFI Intel B760 Raptor Lake LGA 1700 DDR5 Micro-ATX Desktop Motherboard

Product ID: 52352

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 599.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

1 Review(s) | Add Your Review

- Micro-ATX Form Factor Motherboard
- Intel B760 Chipset
- LGA 1700 Socket Supports 12th, 13th, 14th Gen Core Processors
- Supports 125W TDP Processors
- 2x DDR5 DIMM Slots, Up to 96GB (2x48GB)
- Supports Up to DDR5-6400 (OC)
- Supports Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slots (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 3x SATA 3.0 Ports
- 4x USB 5Gbps Type-A Port
- 2x USB 2.0 Type-A Ports
- 1x VGA D-Sub Port
- 1x HDMI 1.4 Port
- 2x SMA Antenna Connectors
- 3x 3.5mm Audio Jacks
- Gigabit Ethernet RJ-45 LAN
- Intel AX101 CNVio2 WiFi 6 Dual-Band Adapter, Bluetooth 5.2
- Realtek ALC897 High-Definition Audio Codec
- 8+1+1 Hybrid Digital VRM Solution
- Supports Windows 11 64-bit
- 3 Year Warranty

RAM Compatibility Guide

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,999.00

R1,399.00

Save: R 1,600!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MAXSUN
Series	Challenger Series
Model	Challenger B760M D5 WIFI (MS-CHALLENGER-B760M-D5-WIFI)
CPU Support	LGA1700 socket with support for 12th, 13th, 14th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel B760 Express
Memory Support
Intel 12th, 13th & 14th Gen Series	Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	2x DDR5 DIMM sockets supporting up to 96GB (48GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) 3.0 memory modules
Video
VGA D-Sub	1x VGA D-Sub Port, supporting a maximum resolution of 1920x1200 @ 60Hz
HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @ 30Hz, Support for HDCP
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset	1x PCIe 3.0 x11 Physical, x1 Electrical Slot
Storage
Intel B760 Chipset	1x M.2 connector (Socket 3, M key, type 2280/2242 PCIe 4.0 x4/x2 SSD support)
	1x M.2 connector (Socket 3, M key, type 2280/2242 PCIe 4.0 x4/x2 SSD support)
	3x SATA 3.0 6Gbps connectors
	Support for SATA RAID 0, RAID 1, RAID 10
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	Intel AX101 CNVio2 WiFi 6 Dual-Band Adapter
Bluetooth	Bluetooth 5.2
Audio
Codec	Realtek ALC897 High-Definition Codec
Codec	7.1-Channel USB High Performance Audio with front-panel jack retasking, jack detection
Connectivity

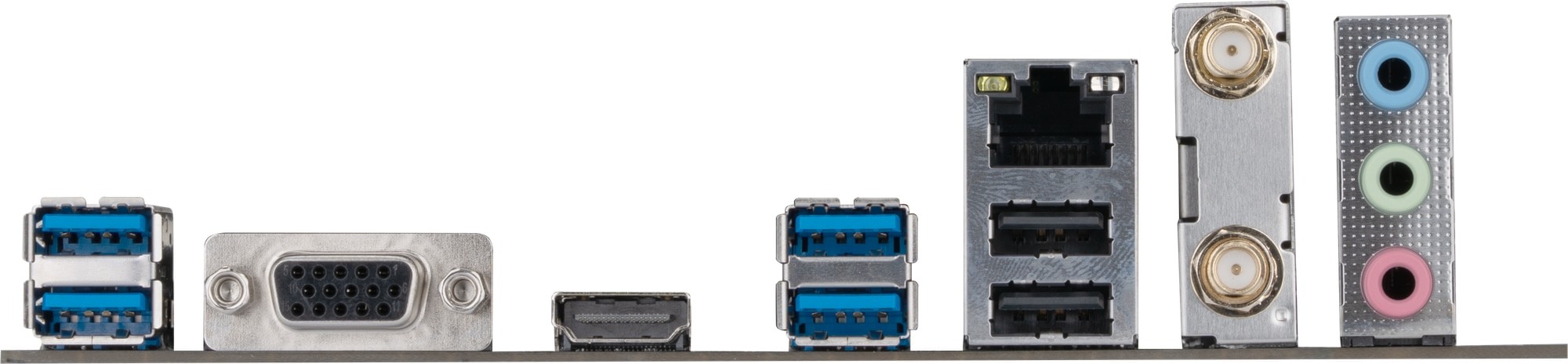

Ports	4x USB 5Gbps Type-A Port
	2x USB 2.0 Type-A Ports
	1x VGA D-Sub Port
	1x HDMI 1.4 Port
	2x SMA Antenna Connectors
	3x 3.5mm Audio Jacks
	1x Gigabit Ethernet RJ-45 LAN
Buttons	1x BIOS Reset Button
General
Internal Connectors	1x 24-PIN motherboard ATX power supply
	1x 8-PIN motherboard ATX 12V power supply, 12V input
	1x COM_A pin
	2x 4-Pin PWM system fan pins
	1x 4-Pin PWM CPU fan pins
	1x 3-Pin DC PUMP fan pins
	1x set of CLR_CMOS button
	1x Debug pin
	1x BIOS Burn-in pins
	1x ME protection pin
	1x 12V NRGB pin and 2x 5V ARGB pins
	1x group chassis front control panel pin (F_PANEL)
I/O Controller	N/A
LED Displays	N/A
BIOS	1x 128 Mb flash
	UEFI AMI BIOS
	Multi-language
Form Factor	Micro-ATX Form Factor, 230 x 05mm (H x W)
Operating System Support	Windows 11 64-bit (Recommended)
	Windows 10 64-bit
	Ubuntu Linux 64-bit
Warranty Information
Warranty	3 Year Warranty
