| SPECIFICATIONS | |
| Brand | ASUS |
| Series | B760 Series |

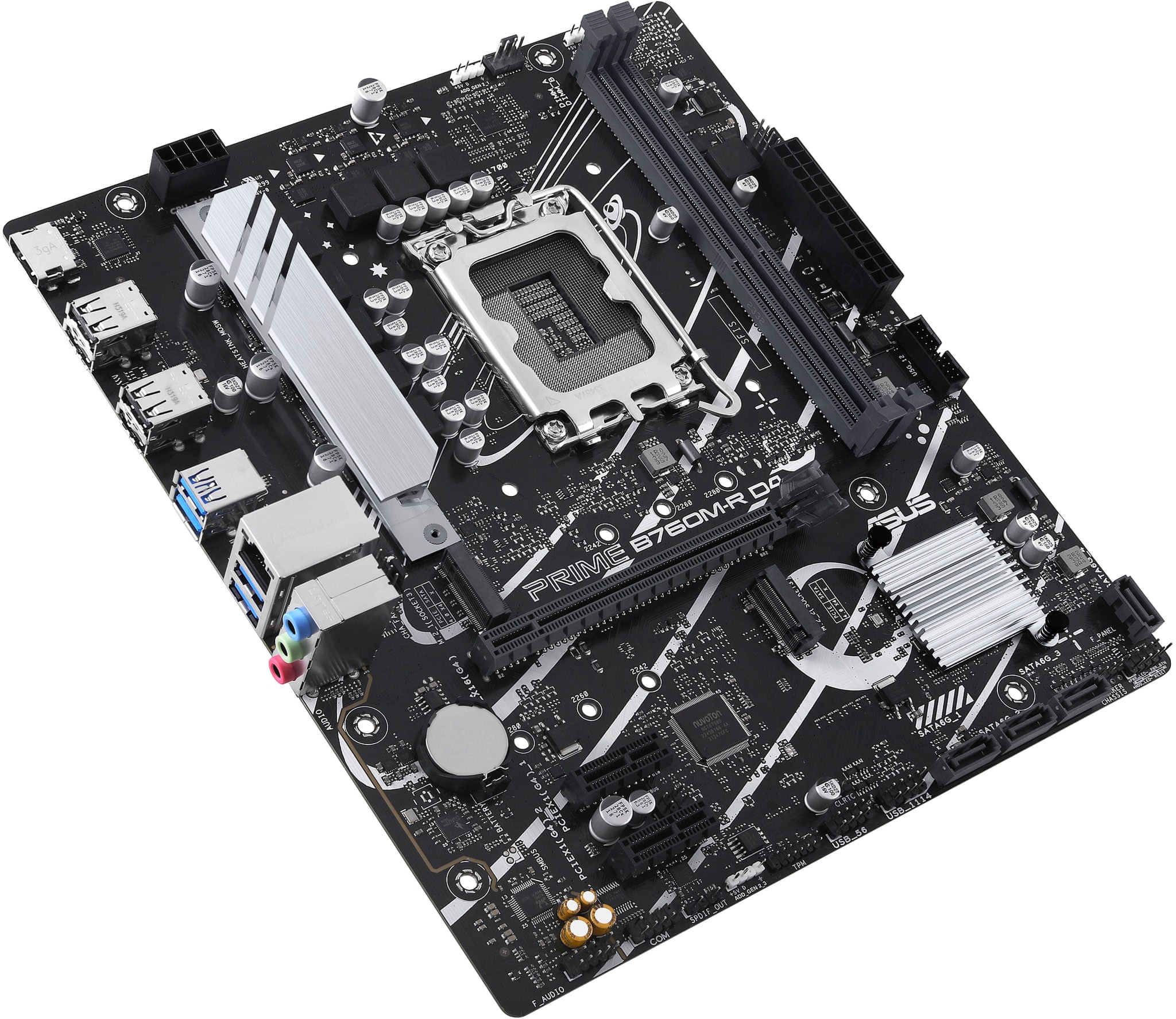

| Model | PRIME B760M-R D4 |
| CPU | Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel B760 Chipset |
| Memory | 2 x DIMM slots, Max. 64GB, DDR4 |
| 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* | |
| Dual channel memory architecture | |
| Supports Intel Extreme Memory Profile (XMP) memory module | |
| Graphics | 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) |
| 1 x PCIe 4.0 x16 slot | |
| Intel B760 Chipset | |
| 2 x PCIe 4.0 x1 slots | |
| Total Storage Support | 2 x M.2 slots |
| 4 x SATA 6Gb/s ports | |
| Storage | Intel Core Processors (14th & 13th & 12th Gen) |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 8 ports) |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A)* | |
| Front USB (Total 6 ports) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 4 x USB 5Gbps ports (4 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x HDMITM port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage Related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front panel audio header (F_AUDIO) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
| BIOS | 128 Mb Flash ROM |
| UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor |
| 24.4cm x 21.1cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Overall Awesome MB - Sufiii, 11 April 2025
Solid budget motherboard that pairs perfectly with my i3-14100F, 16GB DDR4 RAM, and RX 6600. Delivers great 1080p gaming performance with my Gen 4 SSD. Definitely recommend Wootware’s service—package arrived on time and in perfect condition.
