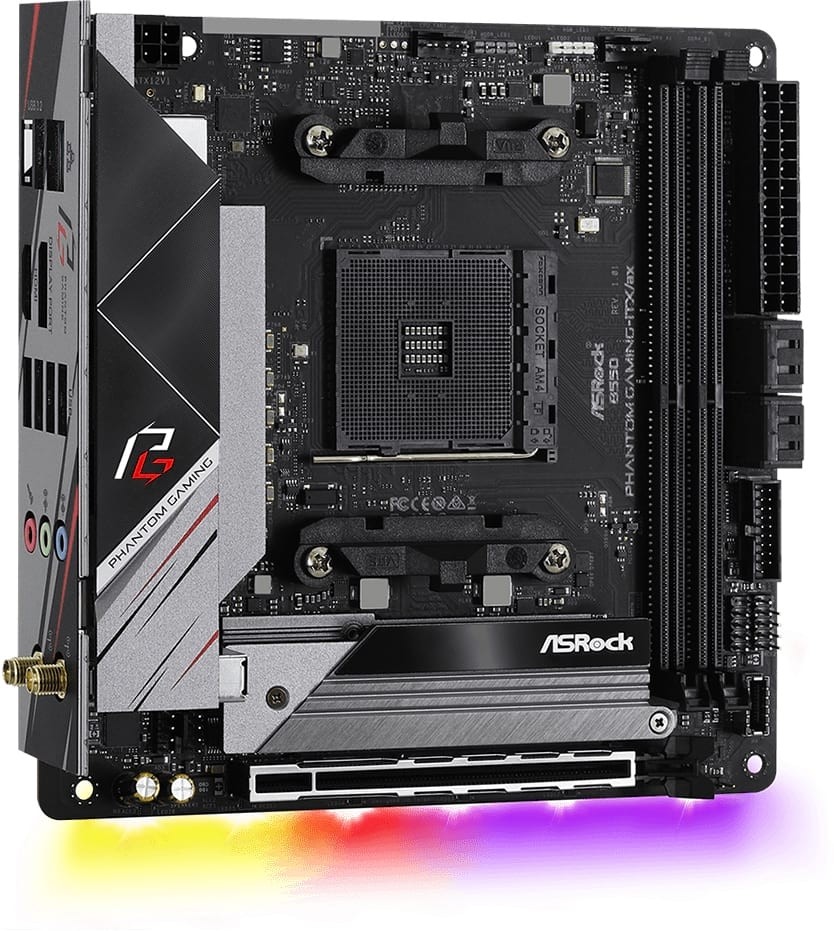

| SPECIFICATIONS | |
| Brand | ASRock |
| Series | Phantom Gaming |
| Model | B550 Phantom Gaming-ITX/ax |
| CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors* |
| Digi Power design | |
| 8 Power Phase design | |
| *Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. | |
| Chipset | AMD B550 |
| Memory | Dual Channel DDR4 Memory Technology |
| 2x DDR4 DIMM Slots | |
| AMD Ryzen series CPUs (Matisse) support DDR4 5100 (OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series APUs (Renoir) support DDR4 5400 (OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| Max. capacity of system memory: 64GB** | |
| Supports Extreme Memory Profile (XMP) memory modules | |
| 15μ Gold Contact in DIMM Slots | |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Supports "Plug and Play" | |
| ACPI 5.1 compliance wake up events | |
| Supports jumperfree | |
| SMBIOS 2.3 support | |
| CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V, 2.50V, 1.8V, VDDP Voltage Multi-adjustment | |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| DirectX 12, Pixel Shader 5.0 | |
| Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers | |
| Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz | |
| Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) | |
| Supports HDR (High Dynamic Range) with HDMI 2.1 | |
| Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports | |
| Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports | |
| Supports Microsoft PlayReady | |
| *Actual support may vary by CPU | |
| **The Max shared memory 16GB requires 32GB system memory installed. | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Premium Blu-ray Audio support | |
| Supports Surge Protection | |
| 120dB SNR DAC with Differential Amplifier | |
| Pure Power-In | |
| Direct Drive Technology | |
| PCB Isolate Shielding | |
| Impedance Sensing on Rear Out port | |
| Individual PCB Layers for R/L Audio Channel | |
| 15μ Gold Audio Connector | |
| Nahimic Audio | |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| GigaLAN Intel I225V | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Wireless LAN | Intel 802.11ax WiFi Module |
| Supports IEEE 802.11a/b/g/n/ax | |
| Supports Dual-Band (2.4/5 GHz) | |
| Supports WiFi6 802.11ax (2.4Gbps) | |
| 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| Supports Bluetooth 5.1 High speed class II | |
| Supports MU-MIMO | |
| Slots | AMD Ryzen series CPUs (Matisse) |
| - 1x PCI Express x16 Slot (PCIE1: Gen4x16 mode)* | |
| AMD Ryzen series APUs (Renoir) | |
| - 1x PCI Express x16 Slot (PCIE1: Gen3x16 mode)* | |
| - 1x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) | |
| - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| *Supports NVMe SSD as boot disks | |
| Storage | 4x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| 1x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* | |
| 1x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* | |
| *Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit (M2_1) | |
| Connector | 1x RGB LED Header* |
| 1x Addressable LED Header** | |
| 1x CPU Fan Connector (4-pin)*** | |
| 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** | |
| 1x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 1x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1x Front Panel Audio Connector (15μ Gold Audio Connector) | |
| 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| 1x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) | |
| *Supports in total up to 12V/3A, 36W LED Strip | |
| **Supports in total up to 5V/3A, 15W LED Strip | |
| ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 2x Antenna Ports |
| 1x HDMI Port | |
| 1x DisplayPort 1.4 | |
| 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) | |
| 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) | |
| 4x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| - ASRock Motherboard Utility (Phantom Gaming Tuning) | |
| - ASRock Polychrome SYNC | |
| - ASRock Key Master | |
| - ASRock XFast LAN | |
| UEFI | |
| - ASRock Full HD UEFI | |
| - ASRock Instant Flash | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD |
| 2x SATA Data Cables | |
| 1x ASRock WiFi 2.4/5 GHz Antenna | |
| 1x Screw for M.2 Socket | |
| Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore | |
| Form Factor | Mini-ITX Form Factor: 17.0 cm x 17.0 cm |
| 8 Layer PCB | |
| 2oz Copper PCB | |
| OS | Microsoft Windows 10 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Great motherboard with one major factor to consider when building in small ITX cases - Madimetja, 27 February 2022
The motherboard functions great without any major problems except for the fact that the sata ports point to the side and not up. This is a non-issue on regular sized motherboards but on an ITX board this might pose a major problem, such as in my case where i could not use regular sata cables in my NR200 due to the proximity of the power supply to the motherboard. I am forced to get low profile right angle cables in order to get around this issue
- Great Buy - LINDSAY, 11 February 2022
When I ordered this motherboard, I was surprised at the amount of features this ITX motherboard has. The best greatest thing is the hi speed WIFI adapter.
