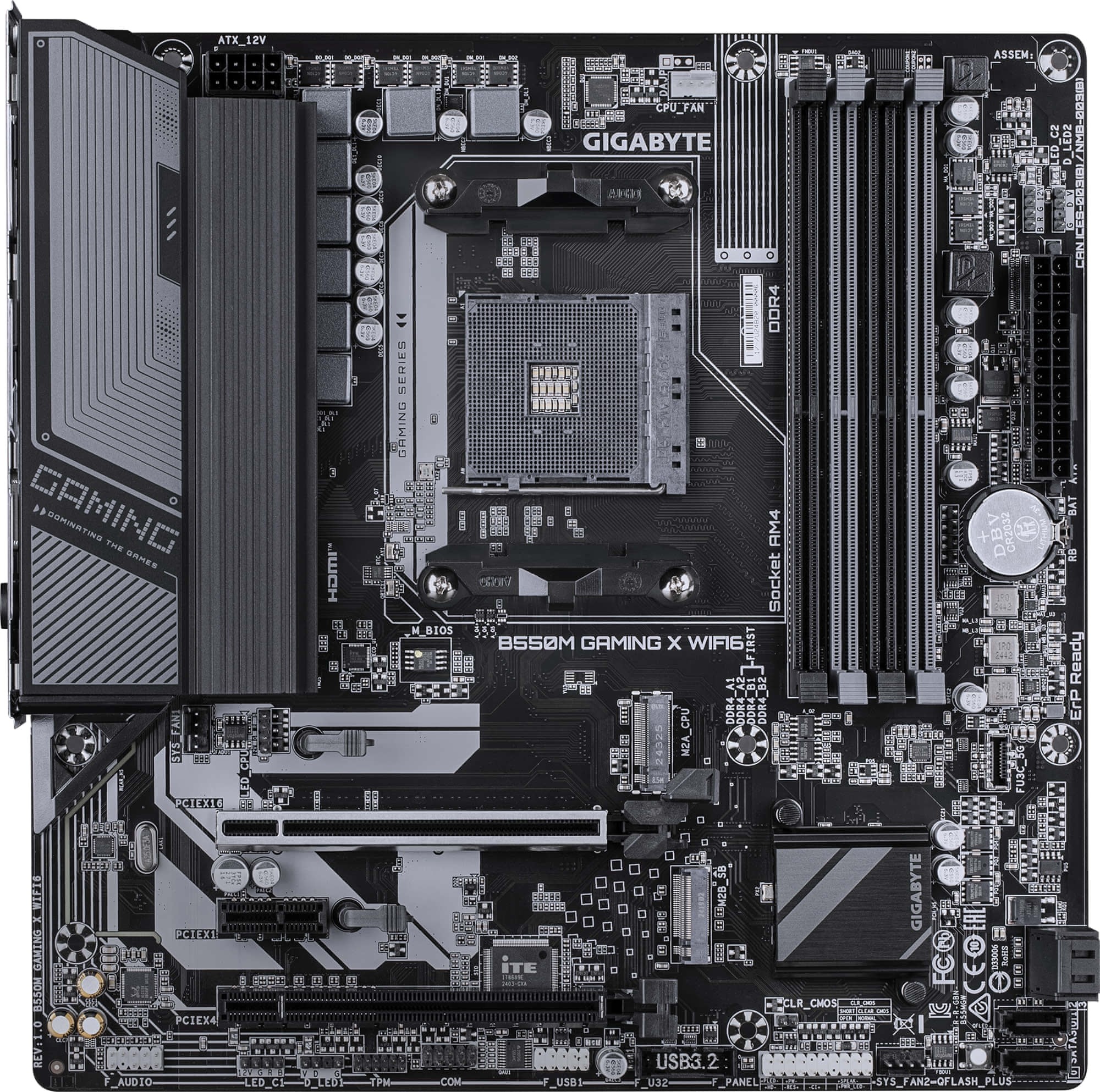

Gigabyte B550M GAMING X WIFI6 AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B550M GAMING X WIFI6 AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard

Product ID: 51848

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

2 Review(s) | Add Your Review

- Micro-ATX Form Factor
- AMD B550 Chipset, Socket AM4
- Supports Ryzen 5000/5000G, 4000G, 3000-Series Processors
- 4x DDR4 DIMM Slots, Supports Up to 128GB (4x32GB)
- Supports up to DDR4-3200 (OC)
- Supports Intel XMP 2.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 4x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks
- 2x Antenna Jacks
- 1x PS/2 Combo Port (Keyboard, Mouse)
- Gigabit Ethernet RJ-45 LAN Port
- WiFi 6 Dual-Band Adapter, Bluetooth 5.3
- Realtek ALC1220 High-Definition Audio Codec
- Gigabyte EZ-Latch M.2 Slots
- Gigabyte EZ-Plug WiFi Design
- Gigabyte APP Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

164 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,999.00

R2,499.00

Save: R 500!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (2)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	GAMING X Series
Model	B550M GAMING X WIFI6
CPU Support	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Chipset	AMD B550 Chipset
Memory Support
AMD B550 Chipset	4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
	Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x HDMI 2.1 (TMDS) port, supports a maximum resolution of 4096x2160 @ 60Hz, Support HDCP 2.3 & HDR
HDMI	1x DisplayPort 1.4 Port, supports a maximum resolution of 5120x2880 @ 60Hz, Support HDCP 2.3 & HDR
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical, x16 Physical Slot
AMD B550 Chipset	1x PCIe 3.0 x4 Electrical, x16 Physical slot
AMD B550 Chipset	1x PCIe 3.0 x1 Electrical, x1 Physical slot
Storage
CPU Direct	1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot (PCIe Gen 3 with Ryzen 5000G / 4000G Series)
AMD B550 Chipset	1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
	4x SATA 3.0 6Gbps connectors
	Support for SATA RAID 0, RAID 1, and RAID 10
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mb/s
WiFi	Realte Wi-Fi 6 RTL8851BE Dual-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek ALC1220 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking

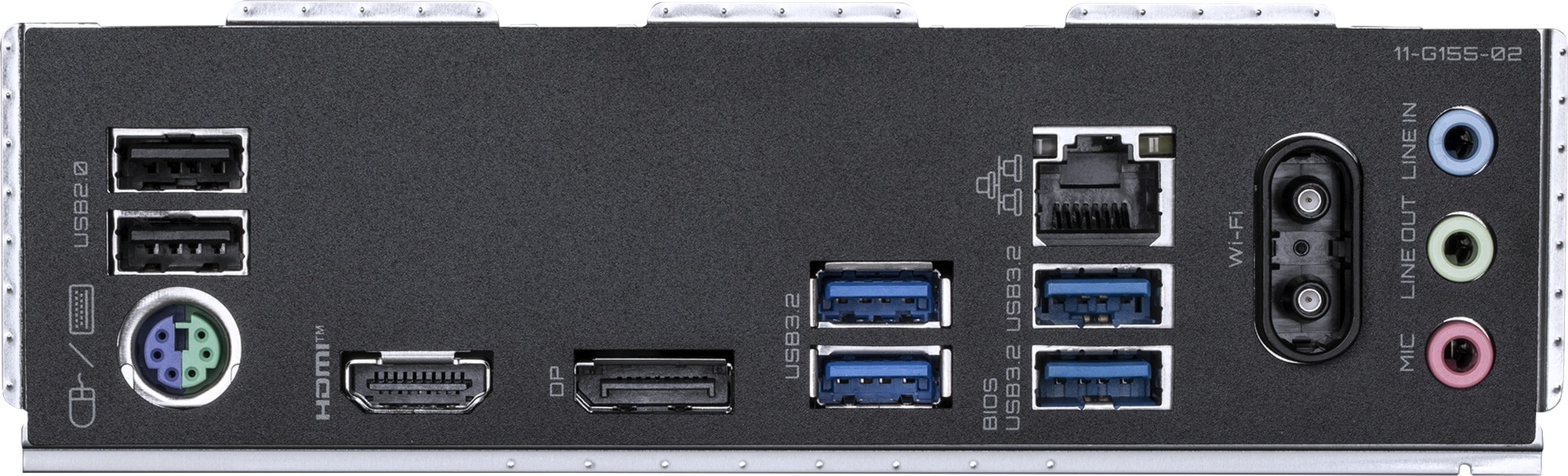

Connectivity
Ports	4x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks
	2x Antenna Jacks
	1x PS/2 Combo Port (Keyboard, Mouse)
	1x Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Q-Flash Plus Button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	2x system fan headers
	2x addressable LED strip headers
	2x RGB LED strip headers
	1x CPU cooler LED strip/RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	1x USB 2.0/1.1 header
	1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1x serial port header
	1x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
LED Displays	N/A
BIOS	1x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (Recommended)
Warranty Information
Warranty	3 Year Warranty
