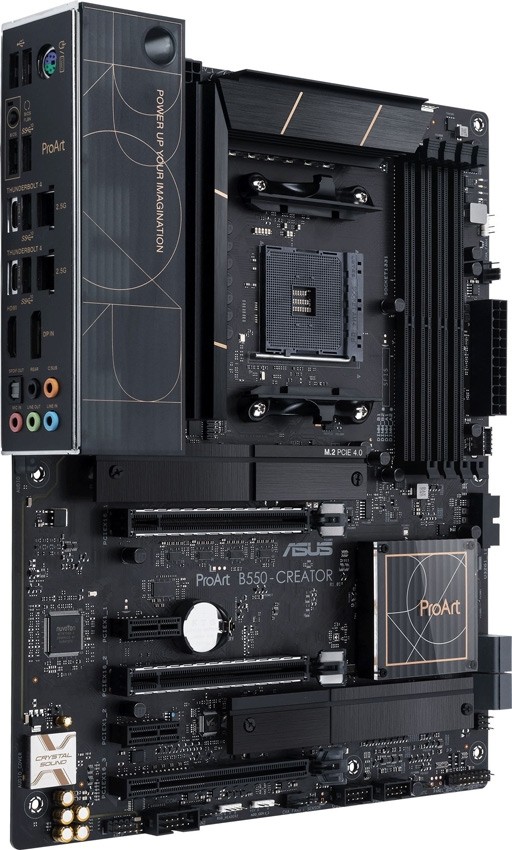

Asus ProArt B550-CREATOR AMD B550 Socket AM4 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Asus ProArt B550-CREATOR AMD B550 Socket AM4 ATX Desktop Motherboard

Product ID: 36397

Be the first to review this product

- ATX Form Factor
- AMD B550 Chipset
- Socket AM4
- 4x DDR4 DIMM Slots, Supports Up to 128GB
- Supports up to DDR4-5100
- 3x PCI-E 4.0/3.0 x16, 2x PCI-E 3.0 x1 Slots
- 4x SATA 6Gb/s Ports, 2x M.2 Slots
- 2x Thunderbolt 4/USB Type-C, 4x USB 3.2 Type-A Gen 2, 2x USB 2.0 Type-A
- 1x HDMI, 1x DisplayPort, 5x Audio Jacks
- Intel I225-V 2.5Gb Ethernet
- Audio Codec
- 3 Year Warranty

320 Products

End of Life

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF GAMING B550M-PLUS WIFI II AMD B550 Socket AM4 Micro-ATX ...

Stock Coming Soon

R3,499.00

R2,799.00

Save: R 700!

9 Review(s)

ASUS PRIME B550M-K ARGB AMD B550 Ryzen Socket AM4 Micro-ATX Deskt...

In stock with Wootware

R2,999.00

R1,799.00

Save: R 1,200!

7 Review(s)

Gigabyte B550M GAMING X WIFI6 AMD B550 Ryzen Socket AM4 Micro-ATX...

In stock with Wootware

R2,999.00

R2,499.00

Save: R 500!

4 Review(s)

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX Desk...

Stock Coming Soon

R5,199.00

R3,299.00

Save: R 1,900!

11 Review(s)

Gigabyte GA-B550-GAMING-X V2 B550 Gaming X V2 AMD B550 Ryzen Sock...

In stock with Wootware

R2,999.00

R2,499.00

Save: R 500!

2 Review(s)

ASUS ROG STRIX B550-A GAMING AMD B550 Socket AM4 ATX Desktop Moth...

In stock with Wootware

R5,399.00

R3,399.00

Save: R 2,000!

23 Review(s)

Gigabyte B550M DS3H R2 AMD B550 Socket AM4 Micro-ATX Desktop Moth...

In stock with Wootware

R2,699.00

R1,999.00

Save: R 700!

4 Review(s)

MSI B550M-A PRO AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Mothe...

In stock with Wootware

R1,999.00

R1,749.00

Save: R 250!

Gigabyte B550 EAGLE WiFi6 AMD AM4 Socket B550 ATX Desktop Motherb...

In stock with Wootware

R3,149.00

R2,599.00

Save: R 550!

2 Review(s)

Gigabyte B550 EAGLE AMD AM4 Socket B550 ATX Desktop Motherboard

In stock with Wootware

R2,749.00

R2,349.00

Save: R 400!

2 Review(s)

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Asus
Series	ProArt
Model	ProArt B550-CREATOR
CPU	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	AMD B550 Chipset
Memory	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
	DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-Buffered Memory
	AMD Ryzen 4000 G-Series Processors
	DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-Buffered Memory
	OptiMem II
	Dual Channel Memory Architecture
	ECC Memory (ECC Mode) Support Varies by CPU
Graphics	Output at TBT4_E1 and TBT4_E2, the USB Type-C Ports Right Under RJ45 Ports, Each Requires a USB-C to DisplayPort Adapter Cable. Graphics Specifications May Vary Between CPU Types
Graphics	VGA Resolution Support Depends on Processors' or Graphic Cards' Resolution
Expansion Slots	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
	2x PCIe 4.0 x16 (x16 or Dual x8) *1
	AMD Ryzen 4000 G-Series Processor
	2x PCIe 3.0 x16 (x16 or Dual x8) *1
	AMD B550 Chipset
	1x PCIe 3.0 x16 Slot (Supports x4 Mode) *2
	2x PCIe 3.0 x1 Slots *3
Storage	Supports 2x M.2 Slots and 4x SATA 6Gb/s Ports
	Total Supports 2x M.2 Slots and 4x SATA 6Gb/s Ports
	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
	M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 & SATA Modes)
	AMD Ryzen 4000 G-Series Processor:
	M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 & SATA Modes)
	AMD B550 Chipset
	M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 & SATA Modes)
	4x SATA 6Gb/s Ports
	Supports RAID 0, 1, 10
Ethernet	2x Intel I225-V 2.5Gb Ethernet
USB	Rear USB: Total 8 Ports
	2x Thunderbolt 4 Ports (2x USB Type-C) with Up to 5V/3A, 15W Charging Support
	4x USB 3.2 Gen 2 Ports (4x Type-A)
	2x USB 2.0 Ports (2x Type-A)
	Front USB: Total 7 Ports
	1x USB 3.2 Gen 1 Connector (Supports USB Type-C)
	1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports
	2x USB 2.0 Headers Supports Additional 4 USB 2.0 Ports
Audio	Impedance Sense for Front and Rear Headphone Outputs
	Internal Audio Amplifier to Enhance the Highest Quality Sound for Headphone and Speakers
	Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
	High Quality 120 dB SNR Stereo Playback Output and 113 dB SNR Recording Input (Line-In)
	Supports Up to 32-Bit/192 kHz Playback *4
	Audio Features
	Power Pre-Regulator Reduces Power Input Noise to Ensure Consistent Performance
	Rear Optical S/PDIF Out Port
	Premium Japanese Audio Capacitors
	Dedicated Audio PCB Layers
	Audio Cover
	Unique De-Pop Circuit
Back Panel I/O Ports	2x Thunderbolt 4 USB Type-C Port(s)
	4x USB 3.2 Gen 2 Port(s) (4x Type-A)
	2x USB 2.0 Port(s) (2x Type-A)
	1x DisplayPort (Input Only)
	1x HDMI Port
	2x Intel I225-V 2.5Gb Ethernet Ports
	5x Audio Jacks
	1x Optical S/PDIF Out Port
	1x BIOS FlashBack Button
	1x PS/2 Keyboard/Mouse Combo Port
Internal I/O Connectors	Fan and Cooling Related
	1x 4-pin CPU Fan Header
	1x 4-pin CPU OPT Fan Header
	1x 4-pin AIO Pump Header
	4x 4-pin Chassis Fan Headers
	Power Related
	1x 24-pin Main Power Connector
	1x 8-pin +12V Power Connector
	1x 4-pin +12V Power Connector
	Storage Related
	2x M.2 Slots (Key M)
	4x SATA 6Gb/s Ports
	USB
	1x USB 3.2 Gen 1 Connector (Supports USB Type-C)
	1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports
	2x USB 2.0 Headers Supports Additional 4 USB 2.0 Ports
	Miscellaneous
	2x AURA Addressable Gen 2 Headers
	2x AURA RGB Headers
	1x Clear CMOS Header
	1x COM Port Header
	1x Front Panel Audio Header (AAFP)
	1x Speaker Header
	1x SPI TPM Header (14-1pin)
	1x 20-5 pin System Panel Header
	1x Thermal Sensor Header
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	30.5cm x 24.4cm
Package Contents	Cables
	2x SATA 6Gb/s Cables
	1x DP to DP Cable for Thunderbolt 4
	Miscellaneous
	1x M.2 Rubber Package
	Installation Media
	1x Support DVD
	Documentation
	1x ACC Express Activation Key Card
	1x User Manual
Notes	*1 Support PCIe bandwidth bifurcation for RAID on CPU function.
	*2 PCIe 3.0 x4 will be switched from Thunderbolt 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt 4 will have no output
	*3 These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will
	*4 Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Warranty Information
Warranty	3 Year Warranty
