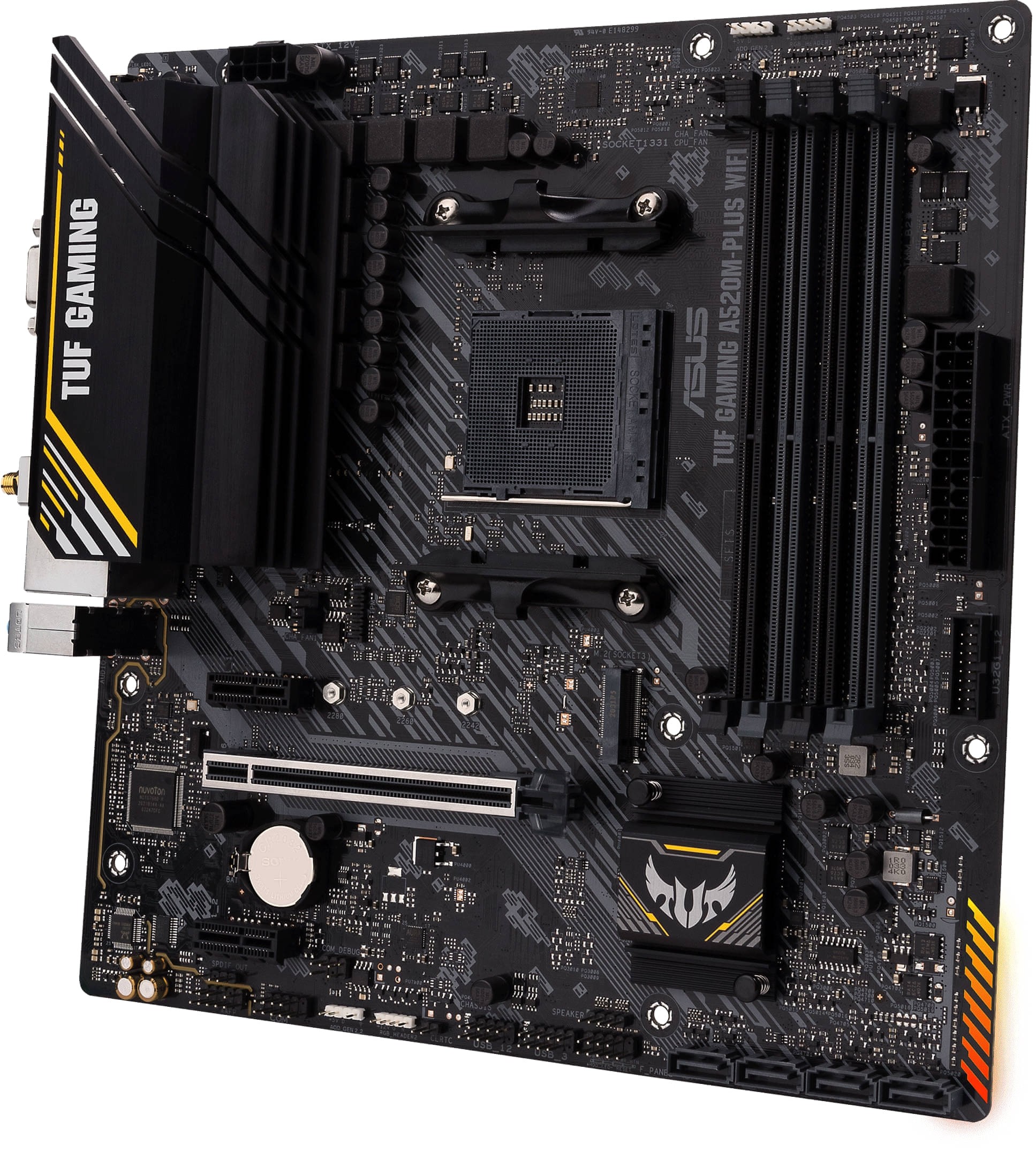

ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Ryzen AM4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Ryzen AM4 Micro-ATX Desktop Motherboard

Product ID: 47885

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 699.00
- View

WiFi 7 Router (Optional):
ASUS TUF Gaming WiFi 7 Dual-Band 2.5 Gigabit Ethernet AiMesh Wireless Gaming Router

R 2,399.00
- View

Stock Coming Soon

ETA: 8 September 2026 (Pre-Order Now to Reserve Stock!)

4.5

2 Review(s) | Add Your Review

- ATX Form Factor
- AMD A520 Chipset
- Socket AM4
- 4x DDR4 DIMM Slots, Supports Up to 128GB
- Supports up to DDR4-4866(OC)
- 1x PCIe 3.0 x16 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x1 Physical)
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 4 x USB 3.2 Gen 1 Type-A Ports, 2x USB 2.0 Type-A Ports
- 1x DisplayPort, 1x HDMI port, 1x D-Sub
- Realtek Gigabit Ethernet
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio Codec
- Aura Sync Onboard RGB Headers
- 3 Year Warranty

327 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,499.00

R1,499.00

Save: R 1,000!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (2)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	TUF GAMING Series
Model	TUF GAMING A520M-PLUS WIFI
CPU	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	A520
Memory	4 x DIMM, Max. 128GB
	DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
	Dual Channel Memory Architecture
	*ECC Memory (ECC mode) support varies by CPU.
	*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics	1 x DisplayPort 1.2
	1 x HDMI 2.1(4K@60Hz)
	1 x D-Sub
	*Graphics specifications may vary between CPU types.
Expansion Slots	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
	1 x PCIe 3.0 x16 slot (supports x16 mode)
	AMD A520 Chipset
	2 x PCIe 3.0 x1 slots
Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
	AMD A520 Chipset
	4 x SATA 6Gb/s ports
	Support RAID 0, 1, 10
Ethernet	1 x Realtek 1Gb Ethernet
	TUF LANGuard
	1 x Realtek 1Gb Ethernet
	TUF LANGuard
Wireless & Bluetooth	Realtek Wi-Fi 5 8821CE
	1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
	Supports dual frequency band 2.4/5GHz
	Supports channel bandwidth: HT20/HT40/HT80
	Bluetooth v5.0
USB	Rear USB:Total 6 ports
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
	- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback"
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

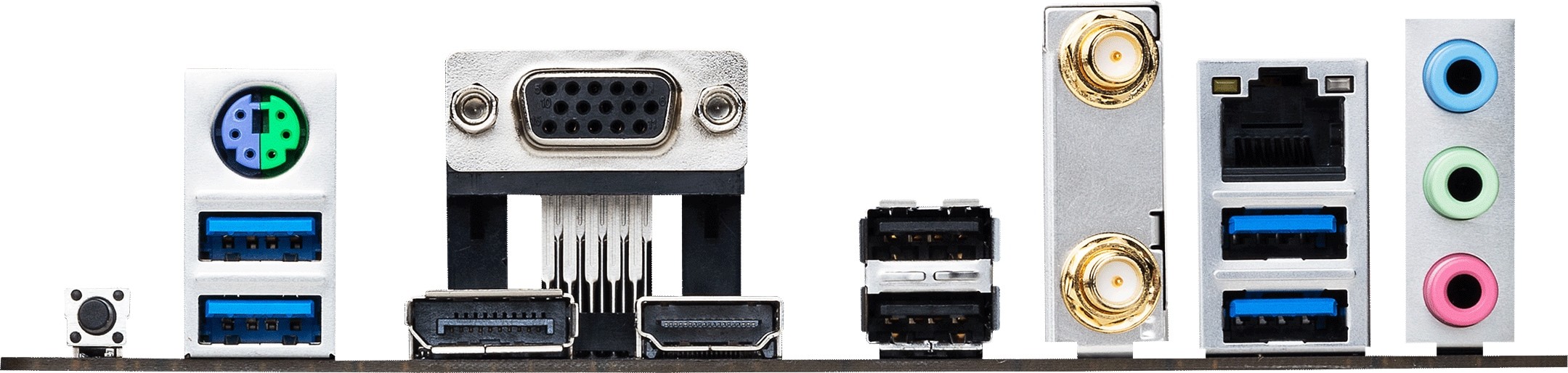

Back Panel I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x Display Port
	1 x HDMI port
	1 x D-Sub
	1 x ASUS Wi-Fi Module
	1 x Realtek 1Gb Ethernet port
	3 x Audio jacks
	1 x BIOS FlashBack button
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and cooling related
	1 x 4-pin CPU Fan header
	2 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	Storage related
	1 x M.2 slot (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 3 USB 2.0 ports
	Miscellaneous
	2 x AURA Addressable Gen 2 header
	2 x AURA RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x Speaker header
	1 x SPI TPM header (14-1pin)
	1 x 10-1 pin System Panel header
BIOS	128 Mb Flash ROM
BIOS	UEFI AMI BIOS
Form Factor	Micro-ATX
Form Factor	24.4cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty
