Features Product Description
Additional Information
Reviews (1)
| SPECIFICATIONS | |
| Brand | Galax |
| Series | SG Series |

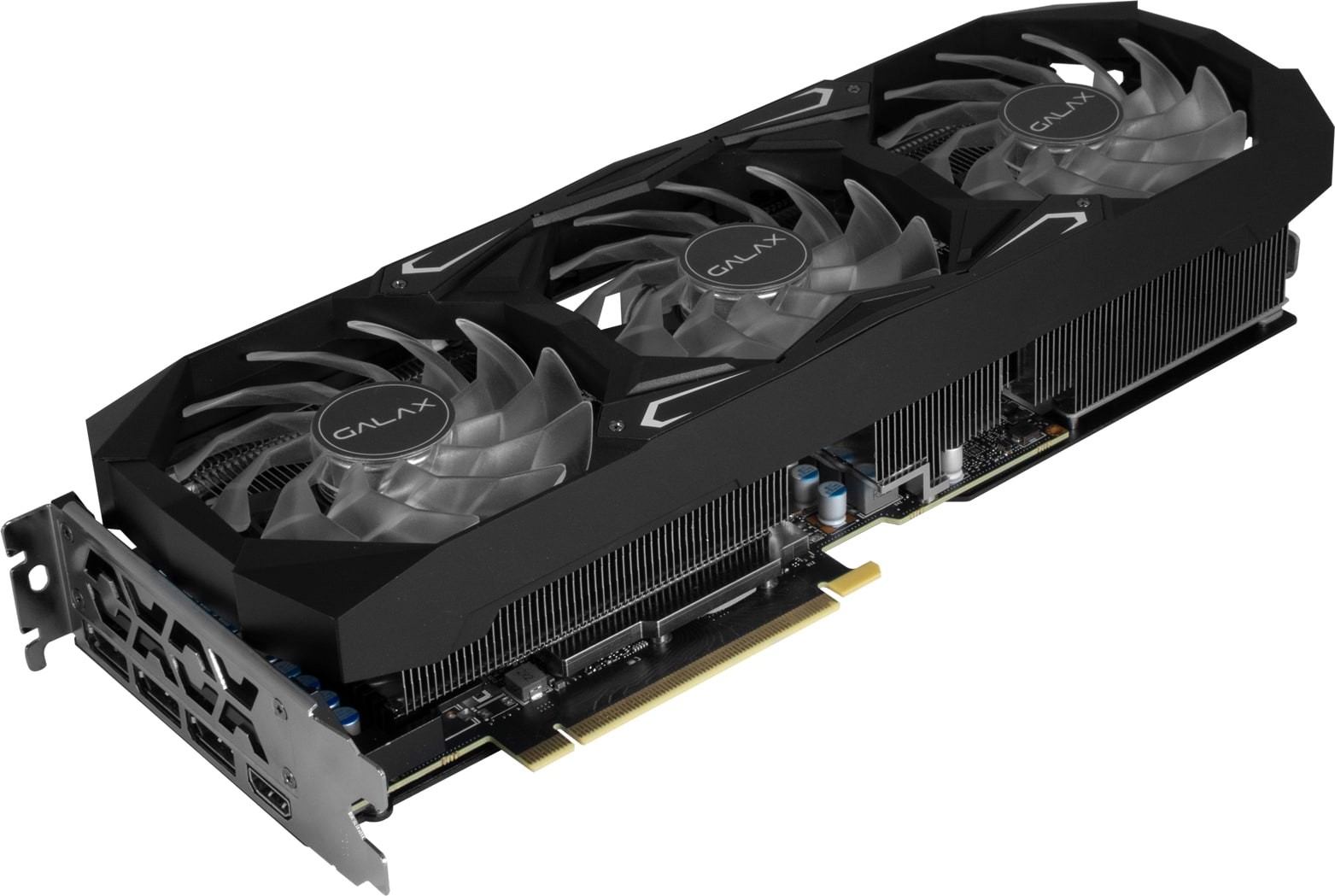

| Model | 3090 SG Edition 1-Click OC (39NSM5MD1GNA) |
| Chipset | |
| GPU | GeForce RTX 3090 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCI-E 4.0 x16 |
| Base Clock | 1400 MHz |
| Boost Clock | 1695 MHz |
| 1-Click OC Clock | 1710 MHz* |
| *Requires installation of Xtreme Tuner Plus software and using the 1-Click OC feature. | |
| CUDA Cores | 10496 |
| GPU Architecture | NVIDIA Ampere |
| Memory | |
| Effective Memory Clock | 19.5 Gbps |
| Memory Size | 24GB |
| Memory Interface | 384-bit |
| Memory Type | GDDR6X |
| Memory Bandwidth | 936 GB/s |
| 3D API | |
| DirectX | 12 |
| OpenGL | 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |

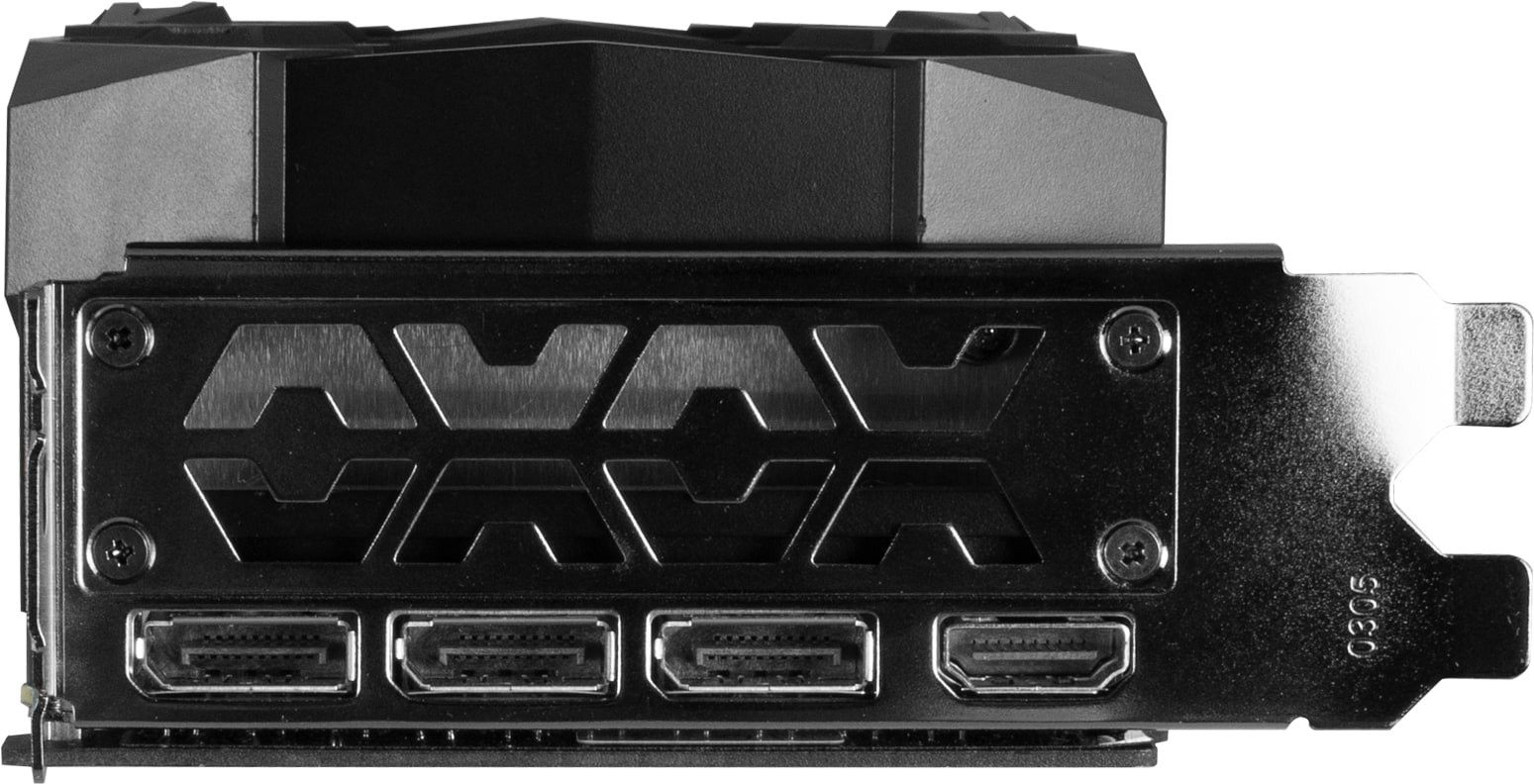

| Ports | 3x DisplayPort 1.4a |
| 1x HDMI 2.1 | |
| HDCP Support | Yes, v2.3 |
| Multi-Monitor Support | 4x Displays |
| VR Ready | Yes |
| General | |
| SLI Support | Yes, NVIDIA SLI Ready (NVLINK) |
| Features | Innovative 1-Clip Booster |

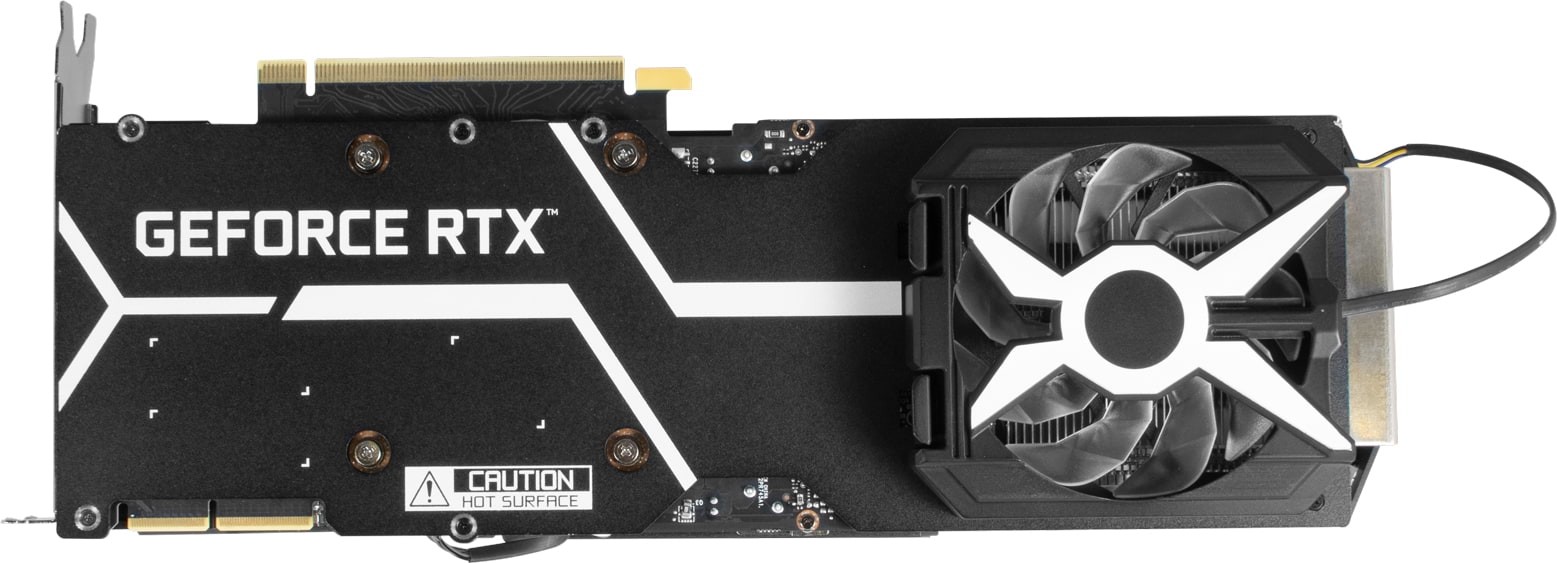

| Backplate with Additional Ventilation Holes | |

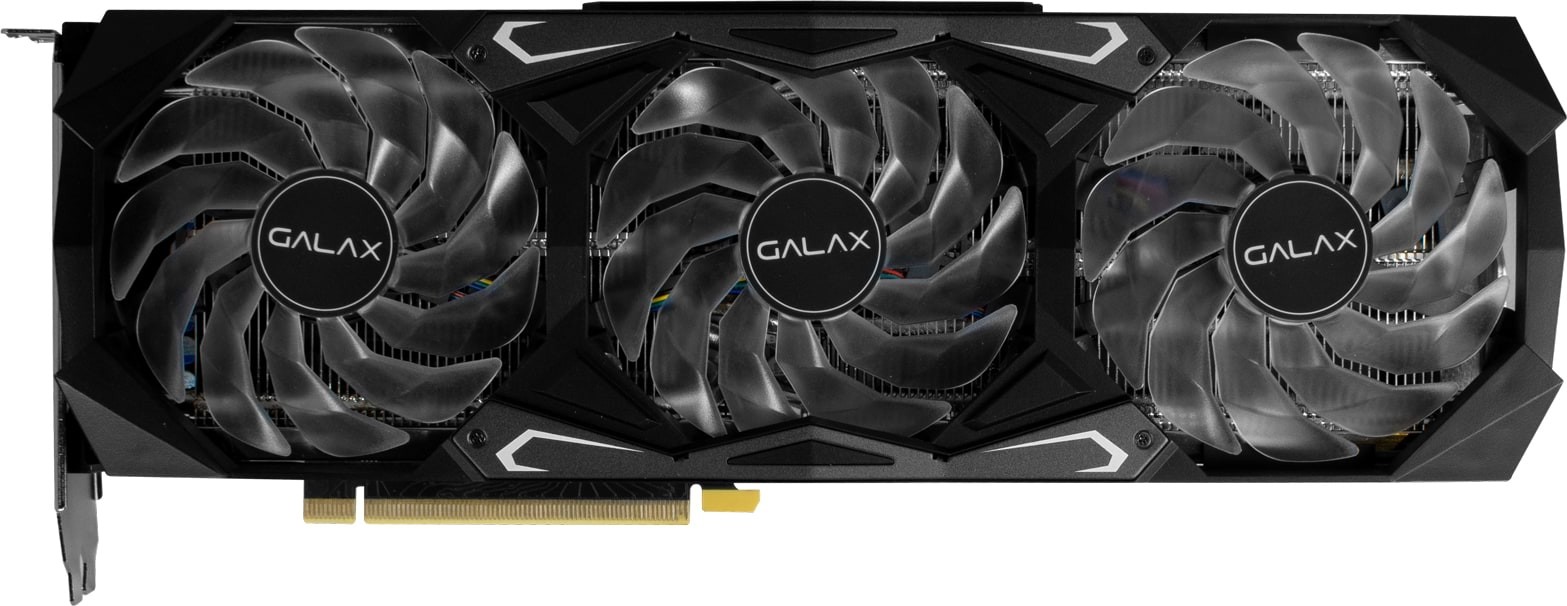

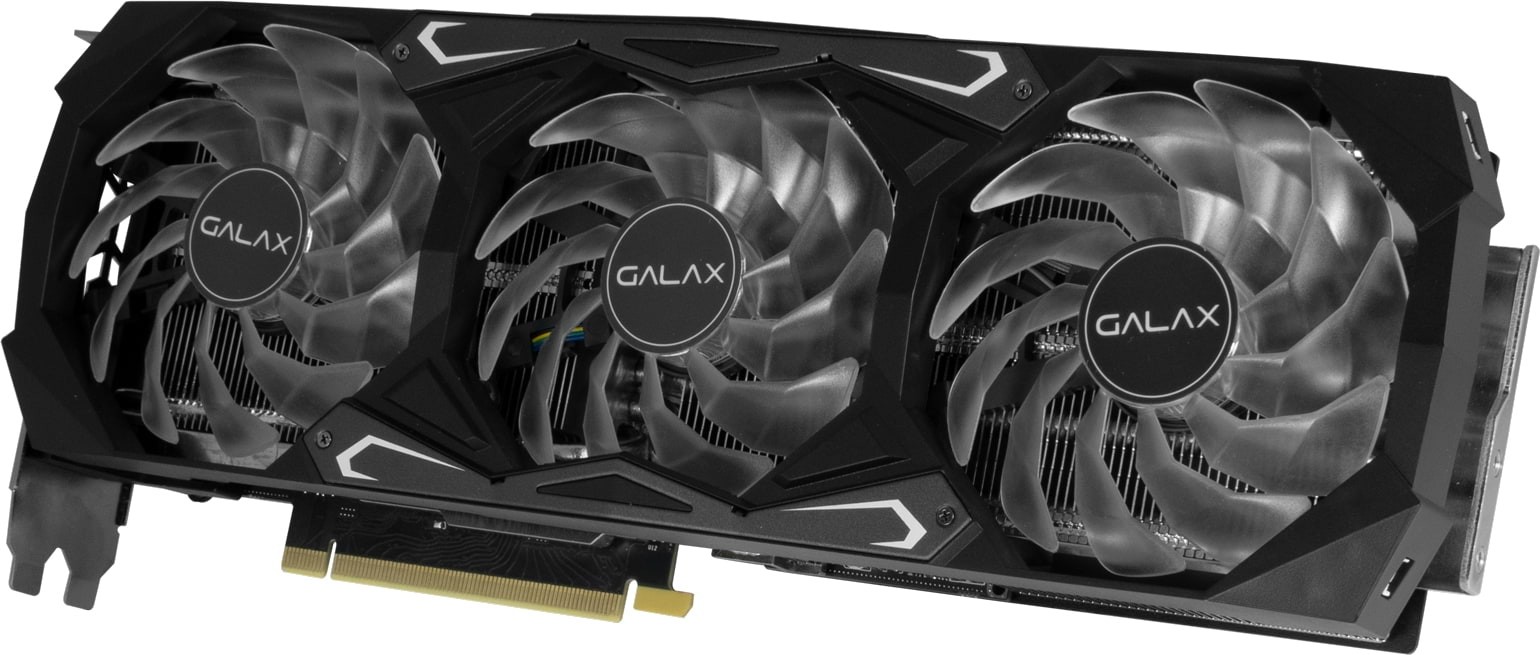

| Exclusive "WINGS" Fan Blade Design | |
| Silent Extreme Technology | |
| 2nd Gen Ray Tracing Cores | |
| 3rd Gen Tensor Cores | |
| PCI Express Gen 4 | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS | |
| NVIDIA GeForce Experience | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA G-SYNC | |
| Game Ready Drivers | |
| NVIDIA Studio Drivers | |
| NVIDIA GPU Boost | |
| NVIDIA Encoder, 7th Generation | |
| NVIDIA Decoder, 5th Generation | |
| Power Requirements | |
| Minimum Recommended Power Supply | 750W |
| Power Connector | 2x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | Triple Slot |
| Dimensions | 329 x 130 x 61 mm (LxWxH) |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- All good - Pieter, 2 December 2020
Once over the "whats the game" logo, quite good card. Runs ~73C with custom boost curve at ~1900 mhz. Fan speed auto at ~60% less loud than case fans. At 80% start to be audible, temps at ~65C. Power limits cannot be raised as expected
