Gigabyte A520M K V2 AMD A520 Socket AM4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte A520M K V2 AMD A520 Socket AM4 Micro-ATX Desktop Motherboard

Product ID: 47533

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- AMD A520 Chipset
- Socket AM4
- 2x DDR4 DIMM Slots, Supports Up to 64GB
- Supports up to DDR4-5100
- 1x PCIe 3.0 x16 Slot, 1x PCIe 3.0 x1 Slot
- 4x SATA 6Gb/s Ports, 1x M.2 Slots
- 4x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports
- 1x D-Sub port, 1x HDMI port
- Realtek GbE LAN Chip (1000 Mbit/100 Mbit)
- Realtek Audio Codec
- 3 Year Warranty

154 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,256.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	A520 Motherboard Series
Model	GA-A520M-K V2
CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 and Ryzen 3000 G-Series Processors
Chipset	AMD A520
Memory
Memory Support	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
Memory Speed	DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Memory Architecture	Dual channel
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Non-ECC Support	Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP Support	Yes
Onboard Graphics
Ports	1x D-Sub Port (Max resolution 1920x1200@60 Hz)
Ports	1x HDMI Port (Max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR)
Maximum Shared Memory	16 GB
Audio
Audio Codec	Realtek Audio CODEC
Audio Channels	2/4/5.1/7.1-channel
LAN
LAN Chip	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU	1 x PCIe 3.0 x16 Slot
Chipset	1 x PCIe 3.0 x1 Slot
Storage Interface
M.2 Connectors	1 x M.2 (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
SATA Connectors	4 x SATA 6Gb/s
RAID Support	RAID 0, RAID 1, and RAID 10
General
USB	4 x USB 3.2 Gen 1 ports on the back panel
	2 x USB 3.2 Gen 1 ports available through the internal USB header
	6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x speaker header
	1 x Clear CMOS jumper
	1 x chassis intrusion header

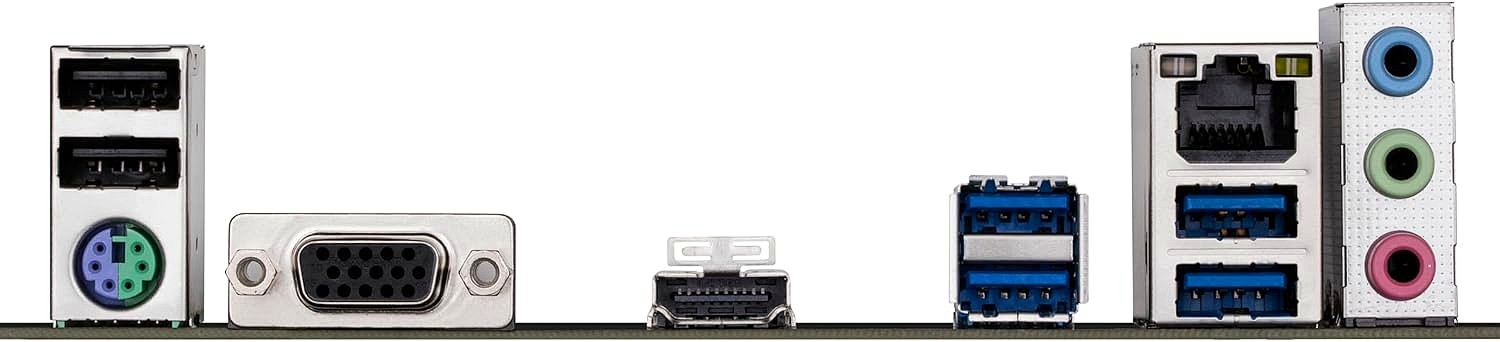

Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Fan fail warning
	Fan speed control
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor
Form Factor	23.3cm x 19.8cm
Warranty Information
Warranty	3 Year Warranty
