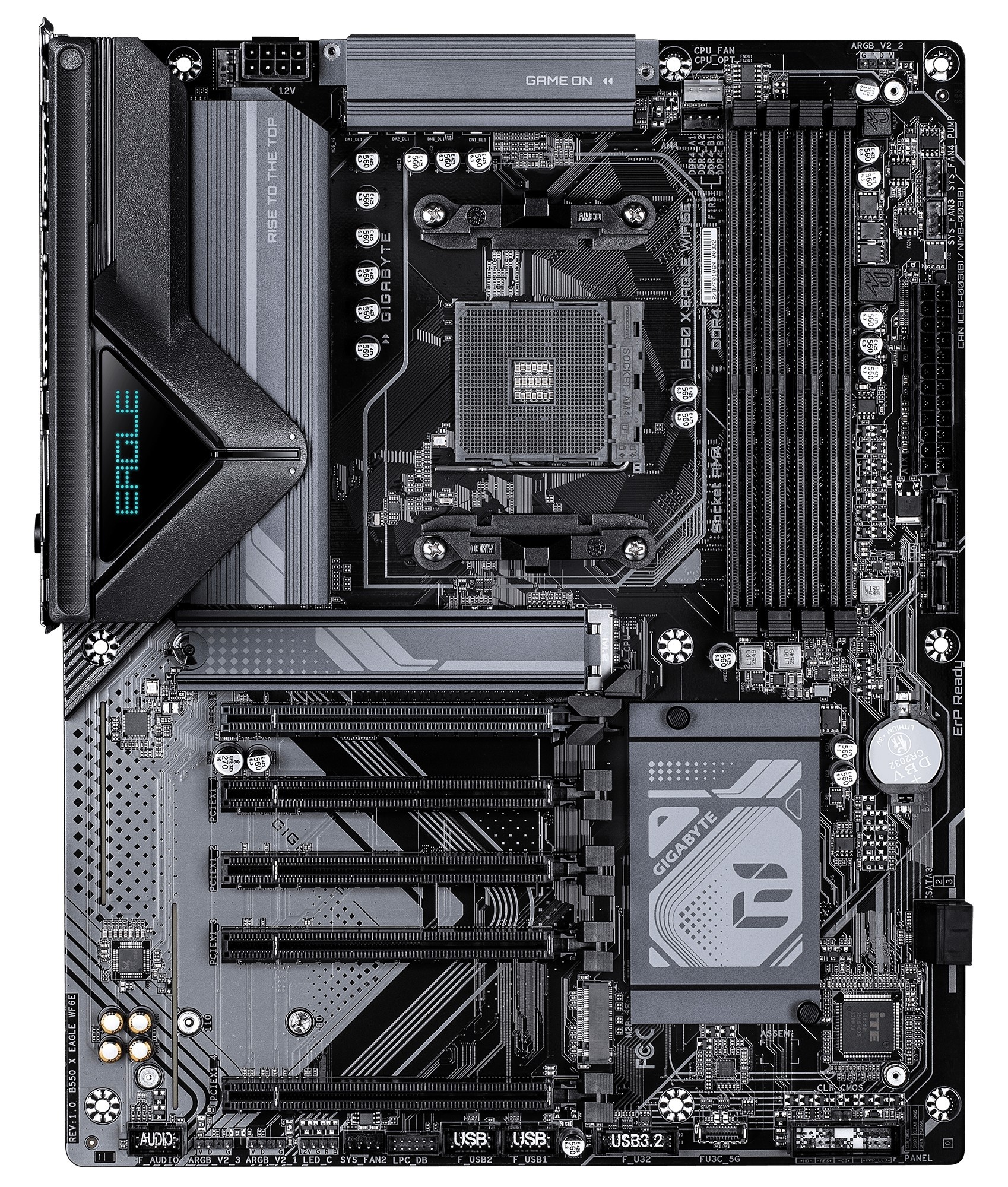

Gigabyte B550 X Eagle WIFI6E AMD B550 Ryzen Socket AM4 ATX DDR4 Wi-Fi 6E Desktop Motherboard (B550 X Eagle WF6E)

AM4 power.
Modern I/O.
Built to expand.

A full-size AMD B550 platform that pairs Ryzen compatibility with Wi-Fi 6E, 2.5GbE networking, dual M.2 storage and practical build-friendly controls.

Ryzen-ready AM4 socket

Supports listed Ryzen 5000 G-Series, 5000, 4000 G-Series, 3000 G-Series and 3000 Series processors. Check Gigabyte's current CPU support list before choosing a processor.

Four-slot DDR4 capacity

Four DIMM sockets support up to 128GB of DDR4 memory in a dual-channel architecture, with XMP module support. Memory speed and module count remain CPU- and configuration-dependent.

Storage and graphics paths

Two M.2 slots, four SATA 6Gb/s connectors and a CPU-connected x16 slot give the platform room for fast storage and discrete graphics. PCIe generation depends on the installed processor.

Designed to keep the platform composed

An 8+2 Twin Hybrid Digital VRM design is paired with VRM thermal armour, an M.2 Thermal Guard and Smart Fan 6 controls.

Modern connectivity is already on the board

Use wired 2.5GbE or tri-band Wi-Fi 6E, pair supported devices over Bluetooth 5.3, and reach USB Type-C from both the rear panel and an internal header.

CPU-dependent PCIe

PCIe 4.0 x16 with compatible Ryzen 5000/3000 Series processors; listed G-Series processors use PCIe 3.0 x16.

M.2 plus SATA

Two M.2 positions, four SATA 6Gb/s connectors and RAID 0, 1 and 10 support for SATA and NVMe storage.

HDMI 2.1 output

Up to 4096 × 2160 at 60Hz when paired with a processor that provides supported integrated Radeon graphics.

Realtek HD Audio

The on-board codec supports 2/4/5.1/7.1-channel audio configurations.

Q-Flash Plus

A dedicated Q-Flash Plus button is positioned on the back panel for streamlined firmware access.

EZ-Latch access

PCIe EZ-Latch and M.2 EZ-Latch Plus/Click simplify graphics-card release and screwless M.2 installation.

Match the processor before the build

Processor choice affects PCIe generation, M.2 behaviour, display-output availability and supported memory configuration. Check Gigabyte's current CPU and memory support lists for the exact planned combination.

The essentials, accounted for

A Wi-Fi antenna and M.2 screws are included for the board's integrated wireless and storage setup.
