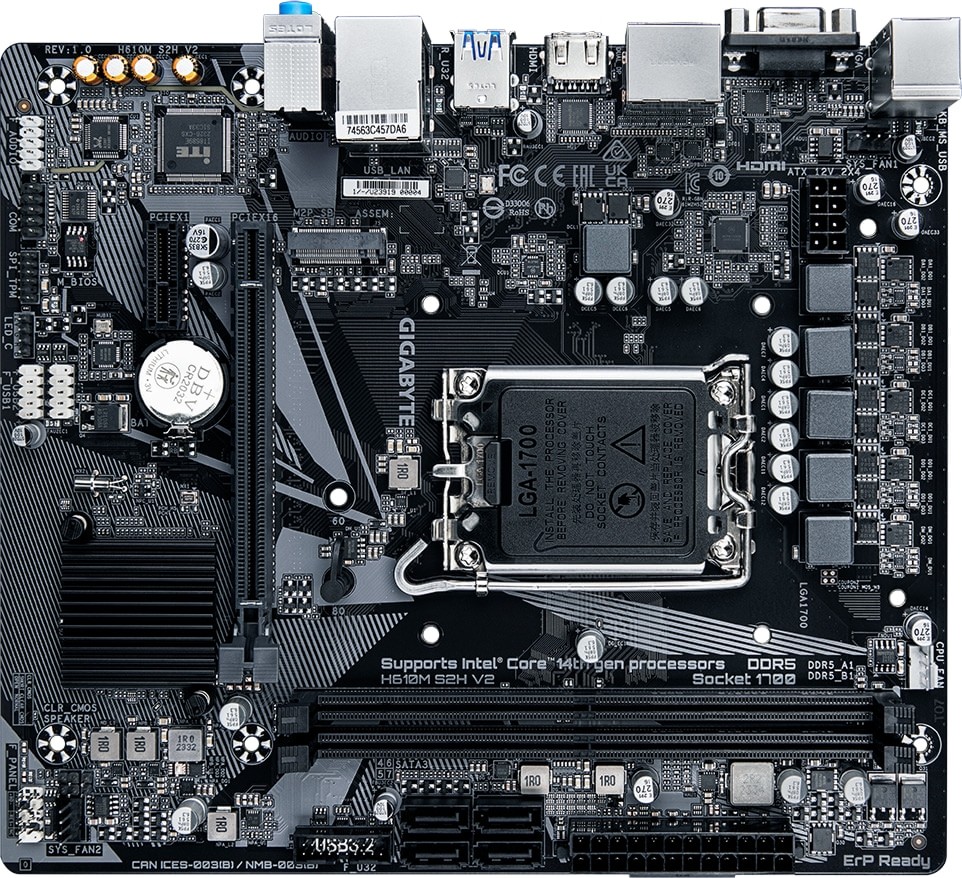

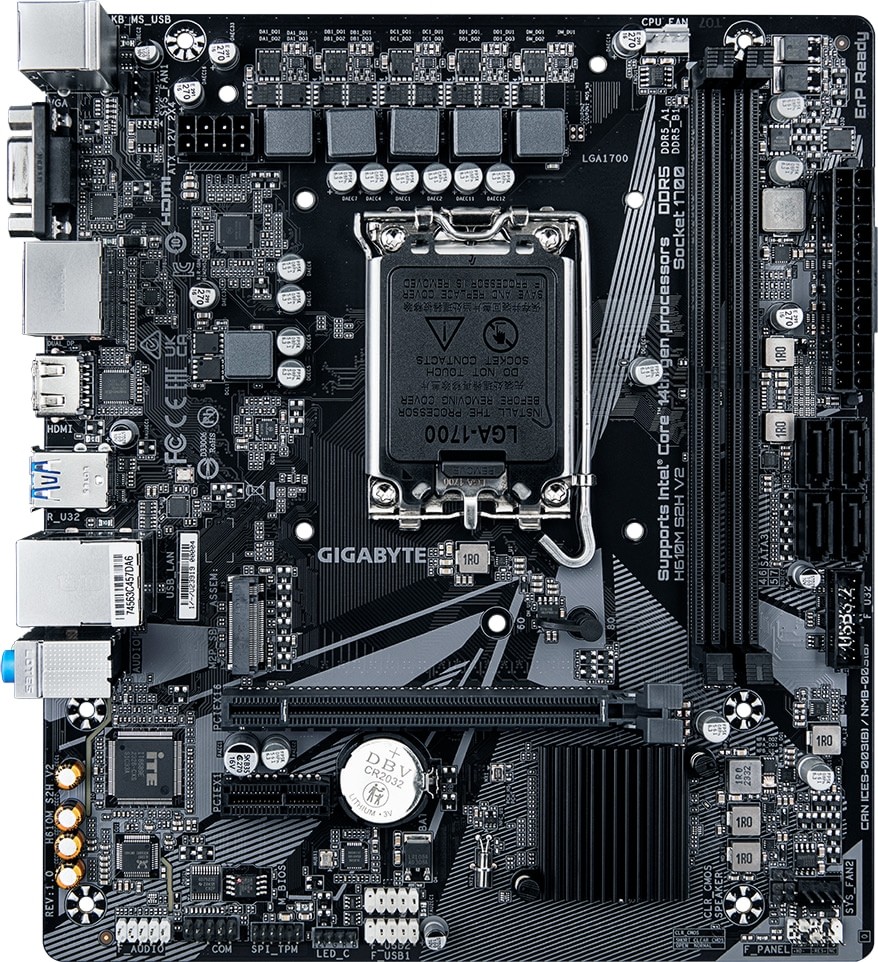

Gigabyte H610M S2H V2.0 DDR5 H610M-S2H-V2-REV-10 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte H610M S2H V2.0 DDR5 H610M-S2H-V2-REV-10 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard

Product ID: 50350

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- Intel H610 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB
- Supports Up to DDR5-5600
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS), 1x VGA D-Sub Port
- 2x DisplayPort 1.2 Ports
- 3x 3.5mm Audio Jacks
- 1x PS/2 Combo Port (Mouse, Keyboard)
- Realtek Gigabit Ethernet RJ-45 LAN
- Realtek High Definition Audio Codec
- Hybrid 4+1+1 Phase Digital VRM Solution
- Gigabyte EZ-Latch M.2 Design
- Gigabyte RGB Fusion
- Gigabyte Smart Fan 6 Technology
- Gigabyte Control Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

154 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,685.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	UD Motherboard Series
Model	H610M-S2H-V2-rev-10
CPU Support	Intel Socket LGA1700 for 13th & 14th Gen Intel Core Processors, & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel H610 Express
Memory Support
13th Gen Intel Core i9/i7	Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Gen Intel Core i5/i3	Support for DDR5 4800/4400 MT/s memory modules
12th Gen Intel Core, Pentium Gold and Celeron	Support for DDR5 4800/4400 MT/s memory modules
	2x DDR DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
HDMI	1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4K 4096x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	2x DisplayPort 1.2 ports, supporting a maximum resolution of 4K 4096x2160 @ 60Hz, Support for HDCP 2.3, and HDR
VGA D-Sub	1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
VGA D-Sub	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical slot
Intel H610 Chipset	1x PCIe 3.0 x1 Physical, x1 Electrical slot
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
Intel H610 Chipset	4x SATA 6Gb/s ports
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek 7.1 Surround Sound High Definition Audio CODEC
	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Support for S/PDIF Out (internal header)
Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port
	1x VGA D-Sub Port
	2x DisplayPort 1.2 Ports
	3x 3.5mm Audio Jacks
	1x PS/2 Combo Port
	1x Gigabit Ethernet RJ-45 LAN Port
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	2x system fan headers
	1x M.2 Socket 3 connector
	4x SATA 6Gb/s connectors
	1x RGB LED strip header
	1x front panel header
	1x front panel audio header
	1x speaker header
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1x serial port header
	1x Clear CMOS jumper
	1x chassis intrusion header
Buttons	N/A
LED Displays	N/A
BIOS	128Mb Flash ROM, UEFI AMI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 223 x 196 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Warranty Information
Warranty	3 Year Warranty
