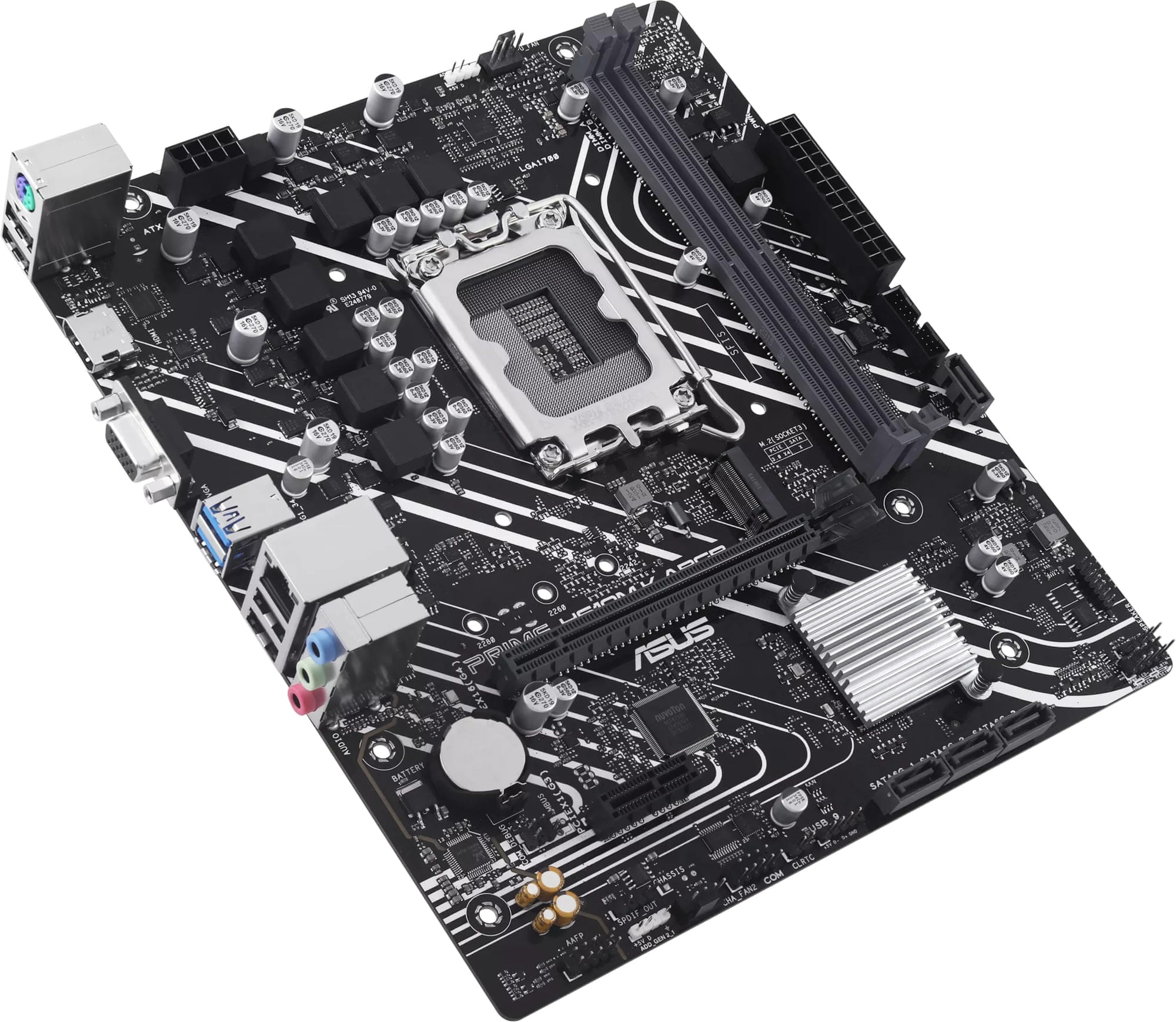

ASUS PRIME H610M-K ARGB DDR5 Intel H610 Alder Lake Socket LGA 1700 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS PRIME H610M-K ARGB DDR5 Intel H610 Alder Lake Socket LGA 1700 Micro-ATX Desktop Motherboard

Product ID: 46611

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- Micro-ATX Form Factor
- Intel H610 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th & 14th Gen Processors
- 2x DDR5 DIMM Slots, Supports Up to 96GB (2x48GB)
- Supports Up to DDR5-5600
- Supports Intel XMP 3.0 Memory Profiles
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (4K 60Hz)
- 1x VGA D-Sub
- 1x PS/2 Combo Port (Mouse/Keyboard)
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- Realtek Gigabit Ethernet RJ-45 LAN Port
- Realtek High-Definition Audio Codec
- Digital VRM Solution
- ASUS Fan Xpert 2+ Utility
- ASUS Q-LED Core POST Debug LED Pattern
- ASUS Aura RGB Gen 2
- ASUS Armoury Crate Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty

243 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,291.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	H610 Series
Model	PRIME H610M-K ARGB (90MB1G90-M0EAY0)
CPU Support	Supports Intel 12th, 13th & 14th Gen Processors
Chipset	Intel H610
Memory Support
Intel 12th & 13th Gen Processors	2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
Video
HDMI	1x HDMI 2.1 port, supporting a maximum resolution of 3840x2160 @ 60Hz, Supports HDCP 2.3
VGA D-Sub	1x VGA D-Sub port, supporting a maximum resolution of 1920 x 1200 @ 60Hz
VGA D-Sub	Integrated Intel graphics Required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Intel H610 Chipset	1x PCIe 3.0 x1 Physical, x1 Electrical Slot
Storage
Intel H610 Chipset	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
Intel H610 Chipset	4 x SATA3 6.0 Gb/s Connectors
Networking
LAN	Realtek Gigabit LAN Port 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek High Definition Audio
Codec	2/4/5.1/7.1-channel support with front-panel jack retasking
Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port
	1x VGA D-Sub
	1x PS/2 Ports (Mouse, Keyboard)
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	1x Realtek Gigabit Ethernet RJ-45 LAN Port
General
Internal Connectors	1x 4-pin CPU Fan header
	2x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	1x 8-pin 12V Power connector
	1x M.2 slot (Key M)
	4x SATA 6Gb/s ports
	1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
	1x USB 2.0 header supports 1 additional USB 2.0 port
	2x Addressable Gen 2 headers
	1x Clear CMOS header
	1x Front Panel Audio header (AAFP)
	1x COM Port header
	1x S/PDIF Out header
	1x Speaker header
	1x SPI TPM header (14-1pin)
	1x 10-1 pin System Panel header
LED Displays	ASUS Q-LED Core POST LED Pattern (Power button LED)
I/O Controller	iTE I/O Controller Chip
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Remote Management	WOL by PME, PXE
Form Factor	Micro-ATX Form Factor, 234 x 203 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Box Contents	ASUS PRIME H610M-K ARGB Motherboard
	2x SATA 6Gb/s cables
	1x I/O Shield
	1x M.2 Anchor
	1x User guide
Warranty Information
Warranty	3 Year Warranty
