Gigabyte H810M H Intel H810 LGA1851 Micro ATX DDR5 Desktop Motherboard (GA-H810M-H)

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte H810M H Intel H810 LGA1851 Micro ATX DDR5 Desktop Motherboard (GA-H810M-H)

Product ID: 56761

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- CPU Socket: LGA1851
- Intel Core Ultra Processors (Series 2)
- Intel H810 Express Chipset
- 2 x DDR5 DIMM Slots
- Maximum Memory Capacity: 128GB
- Memory Type: DDR5
- Supported Memory Speed: DDR5 6400/5600MHz
- Intel Extreme Memory Profile (XMP) Support
- Total M.2 Slots: 1
- 4 x SATA 6GB/S Ports
- Realtek GbE LAN
- Wi-Fi Standard: Not Included
- Total Rear USB Ports: 6
- Realtek High Definition Audio CODEC
- 4+1+2 Hybrid Power Design
- Form Factor: Micro ATX
- 3 Year Warranty

186 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,799.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Ultra Durable
Model	H810M H
Product Code	H810M H
Cpu
CPU Socket	LGA1851
Supported Processors	Intel Core Ultra Processors (Series 2)
CPU Support Note	L3 Cache Varies by CPU; Refer to the GIGABYTE CPU Support List for Latest Compatibility
Chipset
Chipset	Intel H810 Express Chipset
Memory
Memory Slots	2 x DDR5 DIMM Slots
Maximum Memory Capacity	128GB
Maximum Capacity per DIMM	64GB
Memory Type	DDR5
Supported Memory Speed	DDR5 6400/5600MHz
Memory Architecture	Dual-Channel Memory Architecture
Memory Overclocking	Intel Extreme Memory Profile (XMP) Support
Memory Features	ECC and Non-ECC Unbuffered DIMM Support; ECC Modules Operate in Non-ECC Mode
Memory Support Note	Supported memory type, speed and module count vary by CPU and memory configuration
Integrated Graphics
HDMI Output	1 x HDMI 2.1 with HDCP 2.3, Up to 4096 x 2160 at 60Hz
D-Sub Output	1 x D-Sub, Up to 1920 x 1200 at 60Hz
Graphics Support Note	Display support and maximum resolution vary by installed CPU
Expansion Slots
CPU Slot	1 x PCIe 4.0 x16 Slot Running at x16
Chipset Slot	1 x PCIe 3.0 x1 Slot Running at x1
Primary Slot Note	The PCIe 4.0 x16 slot supports a graphics card or NVMe SSD
Storage
M.2 Slot	1 x M.2 2280 PCIe 4.0 x4/x2
SATA RAID Support	RAID 0, 1, 5 and 10 for SATA Storage Devices
Total M.2 Slots	1
Total SATA Ports	4 x SATA 6Gb/s Ports
Ethernet
Ethernet Controller	Realtek GbE LAN
Ethernet Port	1 x RJ-45, 1Gbps/100Mbps/10Mbps
Wireless And Bluetooth
WiFi Standard	Not Included
Bluetooth	Not Included
Rear USB Ports
Total Rear USB Ports	6
USB 5Gbps Ports	1 x USB 3.2 Gen 1 Type-A
USB 2.0 Ports	5 x USB 2.0 Type-A
Audio
Audio Channels	2/4/5.1/7.1-Channel
Audio Codec	Realtek High Definition Audio CODEC
Digital Audio	S/PDIF Out Support

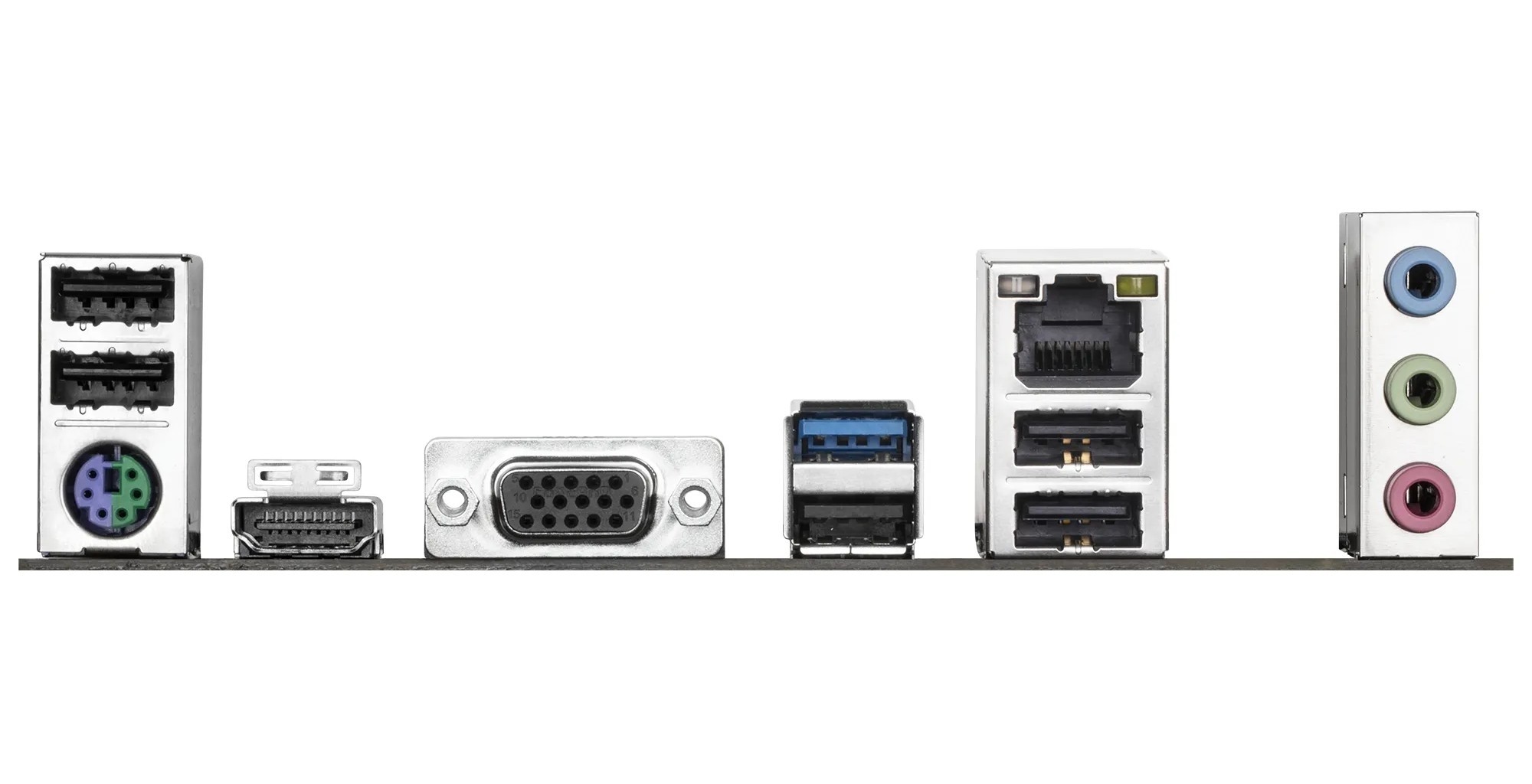

Back Panel I/O Ports
Display Outputs	1 x HDMI and 1 x D-Sub
Legacy Input	1 x PS/2 Keyboard/Mouse Port
Network Port	1 x RJ-45
Analogue Audio	3 x Audio Jacks
Internal Fan And Cooling Connectors
CPU Fan Header	1 x 4-Pin CPU Fan Header
System Fan Headers	2 x 4-Pin System Fan Headers
Internal Power Connectors
Main Power Connector	1 x 24-Pin ATX
CPU Power Connector	1 x 8-Pin ATX 12V
Internal USB Connectors
Front USB Type-C Header	1 x USB 3.2 Gen 1 Type-C Header
USB 5Gbps Header	1 Header Supports 2 x USB 3.2 Gen 1 Ports
USB 2.0 Header	1 Header Supports 2 x USB 2.0 Ports
Other Internal Connectors
Addressable RGB Headers	2 x Addressable RGB Gen2 LED Strip Headers
TPM Header	1 x Trusted Platform Module Header
Serial Port Header	1 x Serial Port Header
Front-Panel Audio Header	1 x Front-Panel High Definition Audio Header
Status LEDs	CPU, DRAM, VGA and BOOT Status LEDs
BIOS Control	1 x Clear CMOS Jumper
Power Design
Power Stages	4+1+2 Hybrid Power Design
Bios
BIOS Memory	256Mbit Flash
BIOS Type	Licensed AMI UEFI BIOS
Firmware Features	Q-Flash and Smart Backup
Accessories - Cables
Included Cables	2 x SATA Cables
Accessories - Miscellaneous
Included Accessories	I/O Shield
Documentation
Included Documentation	User Manual and Quick Installation Guide
Operating System
Supported Operating System	Windows 11 64-Bit and Windows 10 64-Bit
Form Factor
Form Factor	Micro ATX
Dimensions	24.4cm x 21.5cm
Warranty Information
Warranty	3 Year Warranty
