| SPECIFICATIONS | |

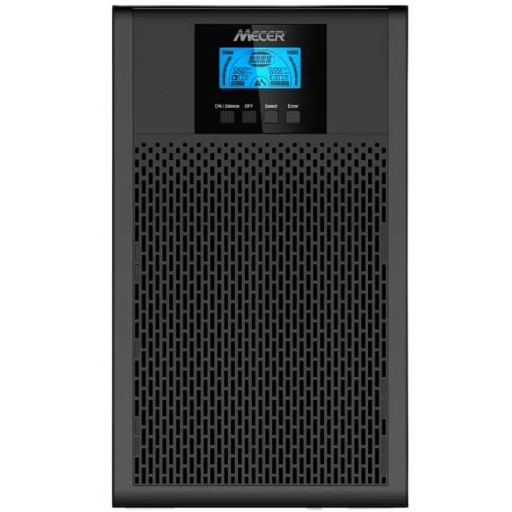

| Brand | Mecer |
| Series | Innova |
| Model | ME-3000-WPTV |
| Efficiency | |
| Double coversion mode | 0.91 |
| ECO mode | Up to 98% |
| Input Performance | |
| Voltage range | 176-300V 100% load, 100-176V derating to 40% load linearly |
| Rated frequency | 50Hz/60Hz |
| Frequency range | 40Hz-70Hz(45Hz-55Hz |
| 54Hz-66Hz @ load>60%) | |
| PF | >0.99 |
| THDI | <5% |
| Input Connection | |
| Wiring / Socket | IEC C19 |
| Output Performance | |
| Rated Voltage | 220/230/240V |
| Rated frequency | 50Hz/60Hz |
| Maximum PF | 0.9 |
| Voltage accuracy | ±1% |
| THDv | <2% linear load |
| <6% non linear load | |
| Transfer time | 0ms(4ms @ line <-> |
| bypass;10ms @ ECO <->In- verter) | |
| Crest Ratio | max 3:1 |
| Overload (line mode) | 100% |
| 105%< load ≤ 130% for 60 second | |
| 130 | |
| >150% for 0.3s. | |
| Output Connection | |
| Wiring/socket | 4 x IEC C13 + 1 x SA |
| Battery | |
| Voltage | 72VDC |
| Capacity | 6 x 12V/9Ah |
| Charger | |
| Maximum Charging Current | 1.5A |
| Other Working Mode | |
| CVCF | Yes (derating to 60% load) |
| HMI (human-machine interface) | |
| Display | segment LCD |
| USB | USB 2.0 |
| RS232 | yes |
| EPO | yes |
| Intelligent slot | yes |
| Network card | yes ,NMC mini card |
| Modbus card | Optional,CMC/Modbus Long Card |
| Dry contactor card | Optional,AS400 Long Card |
| Monitor software | Winpower |
| Physical Performance | |
| Dimension | 190mm x 393mm x 327mm |
| Net Weight | 22.7Kg |
| IP protection level | IP20 |
| Environment | |
| Operating Temperature | 0-40℃ |
| Relative Humidity | 0-95% |
| Operating Altitude | 0~3000m(the load derating 1 % every up 100m@1000~3000m) |
| Acoustic Noise | <41dB @ typical load with battery fully charged |
| Enviromental & Safety | |
| EMC Standard | IEC/ EN 62040-2 |
| Safety Standard | IEC/ EN 62040-1 |
| Accessory | |
| Input power cable | Yes |
| Output power cable | No |
| USB cable | Optional |
| RS232 cable | Optional |
| Manual | Yes |
| Warranty Information | |
| Warranty | 1 Year Warranty With 6 Month Battery Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | No |
