Product Description
Additional Information
Reviews (0) Questions (0)
| SPECIFICATIONS | |
| Brand | Thermaltake |
| Series | Smart BX3 Series |

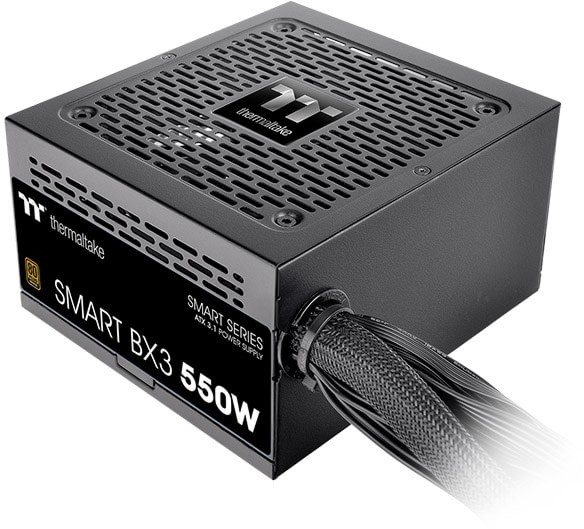

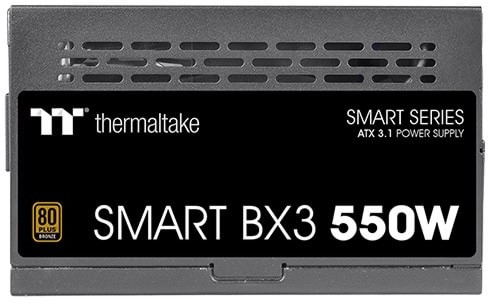

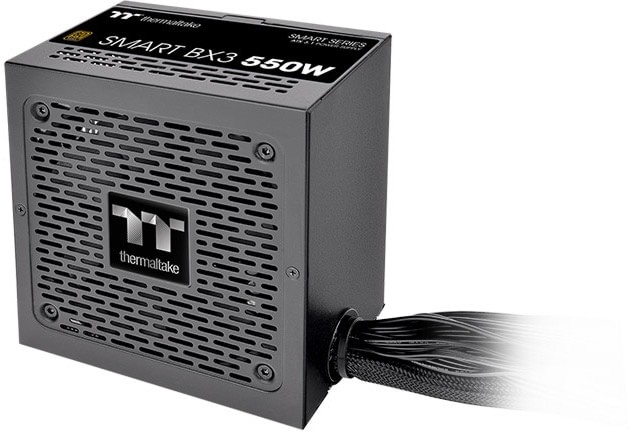

| Model | Smart BX3 550W Bronze (PS-SPD-0550NNFABE-3) |
| ATX Version | ATX12V 3.1 |
| Modularity | Non-Modular |
| Continuous Power | 550W |
| MTBF | 100,000 Hours (Minimum) |
| Certifications | 80 Plus Bronze Certified |
| Performance | |
| Power Good Signal | 100 - 150 milliseconds |
| Hold Up Time | > 17msec at 100% of full load |
| Power Excursions | 1000W for 100μs |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Protections | OCP/OVP/UVP/OPP/OTP/SCP |
| Multi-GPU Ready | Yes |
| Cables | 1x 24-Pin ATX 12V Cable (600mm) |
| 1x 8-Pin (4+4) EPS 12V CPU Cable (650mm) | |
| 1x 8-Pin (6+2) PCIe Twin-Head Cables (500 + 150mm) | |
| 4x SATA Connectors | |
| 4x 4-Pin Peripheral Connectors (Molex) | |
| Fan | |

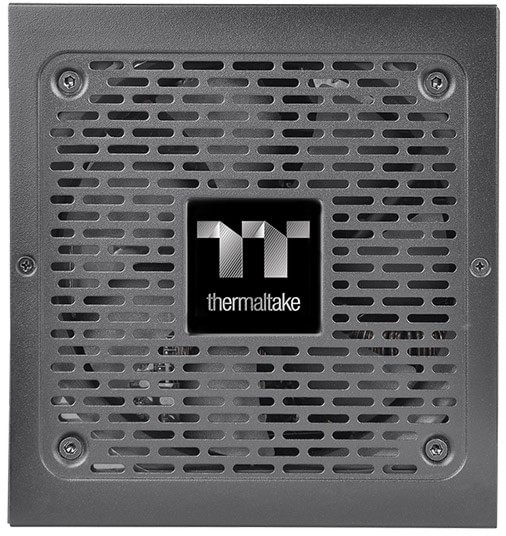

| Fan Size | 120mm |
| Bearing Technology | Fluid Dynamic Bearing |
| Zero RPM Mode | Yes, silent at below 30% load cycle |
| General | |
| Form Factor | ATX |
| Dimensions | 140 x 150 x 86mm (D x W x H) |
| Weight | N/A |
| Colour | Black |
| Safety Certifications | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Warranty Information | |
| Warranty | 5 Year Limited Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
