| SPECIFICATIONS |
| Brand | ASUS |
| Series | PRIME |

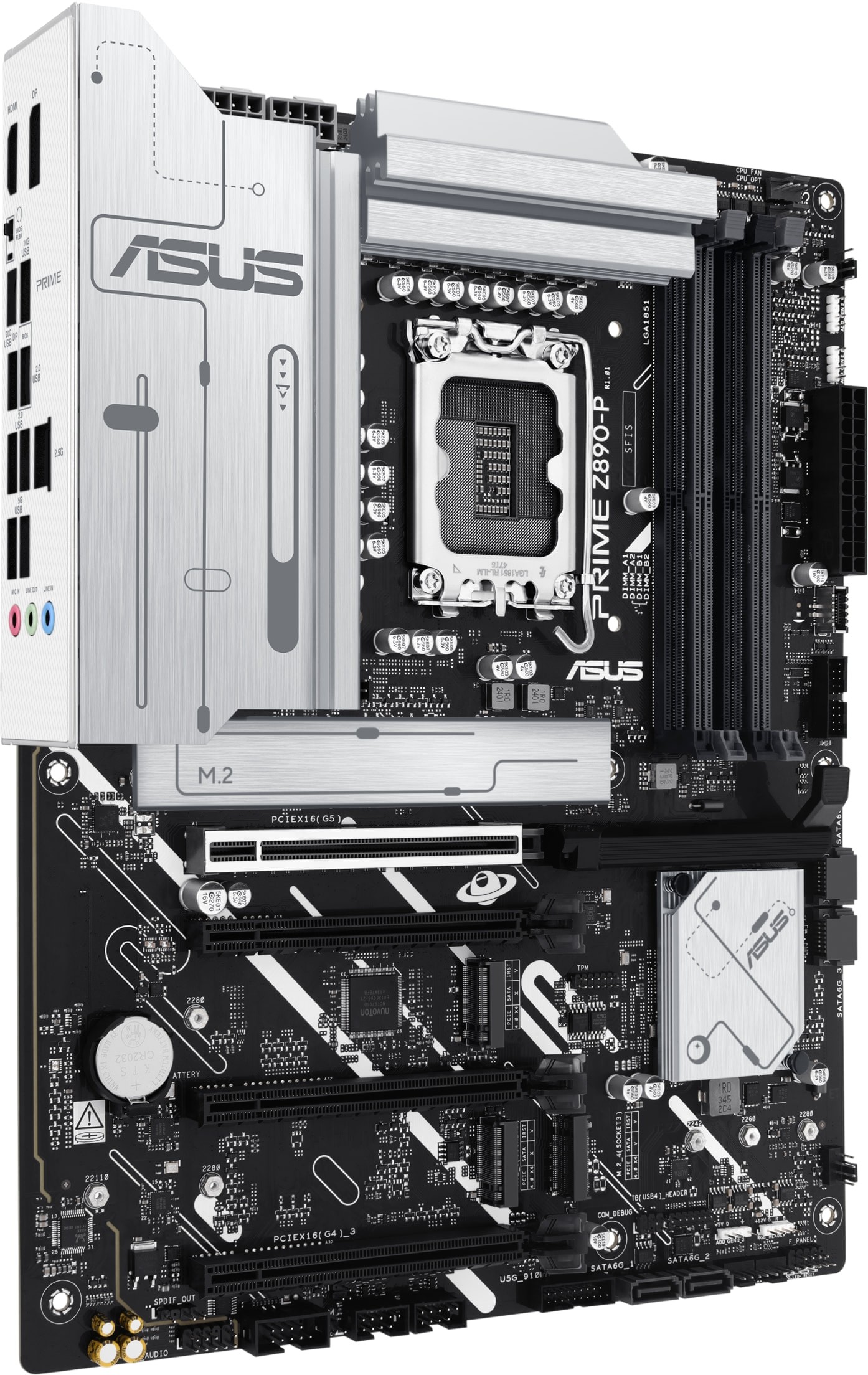

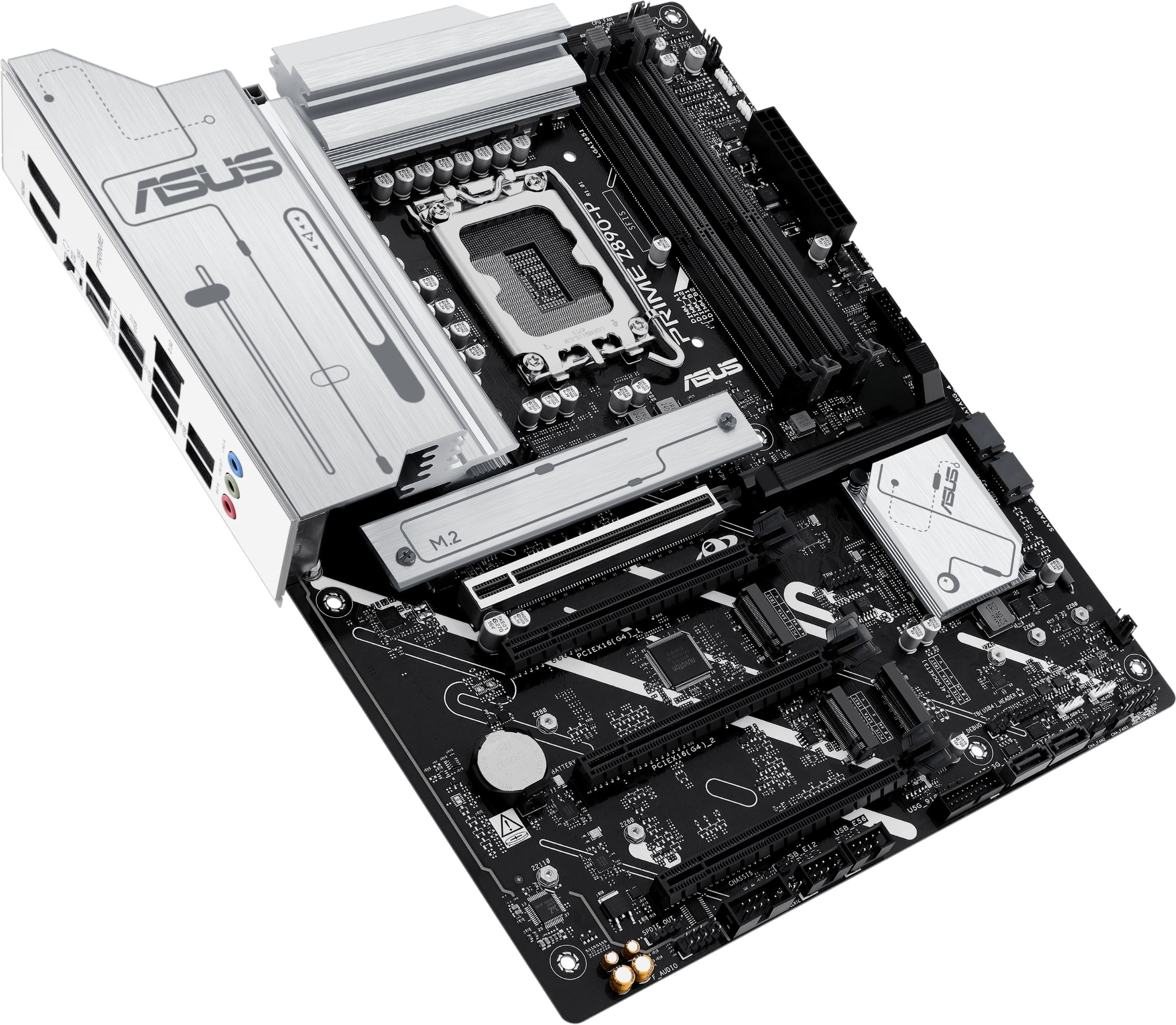

| Model | PRIME Z890-P (90MB1I50-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(Series 2), LGA1851 |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual channel memory architecture |
| DIMM Fit |
| Supports Intel Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III(AEMPIII) |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port** |
| 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output**** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
| *** Supports 4K@60Hz as specified in HDMI 2.1. |
| **** Supports max. 4K@120Hz as specified in DisplayPort 1.4. |
| ***** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel Core Ultra Processors(series 2)* |
| 1 x PCIe 5.0 x16 slot |
| Intel Z890 Chipset |
| 2 x PCIe 4.0 x16 slots (support x4 mode) |
| 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors(series 2)* |
| M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Intel Z890 Chipset |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 8 ports) |
| 1 x USB 20Gbps port (1 x USB Type-C) |
| 1 x USB 10Gbps port (1 x Type-A) |
| 2 x USB 5Gbps ports (2 x Type-A)* |
| 4 x USB 2.0 ports (4 x Type-A)* |
| Front USB (Total 9 ports) |
| 1 x USB 10Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports* |
| * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4port share the bandwidth. |
| * USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| - Audio Shielding |
| - Premium audio capacitors |
| - Dedicated audio PCB layers |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

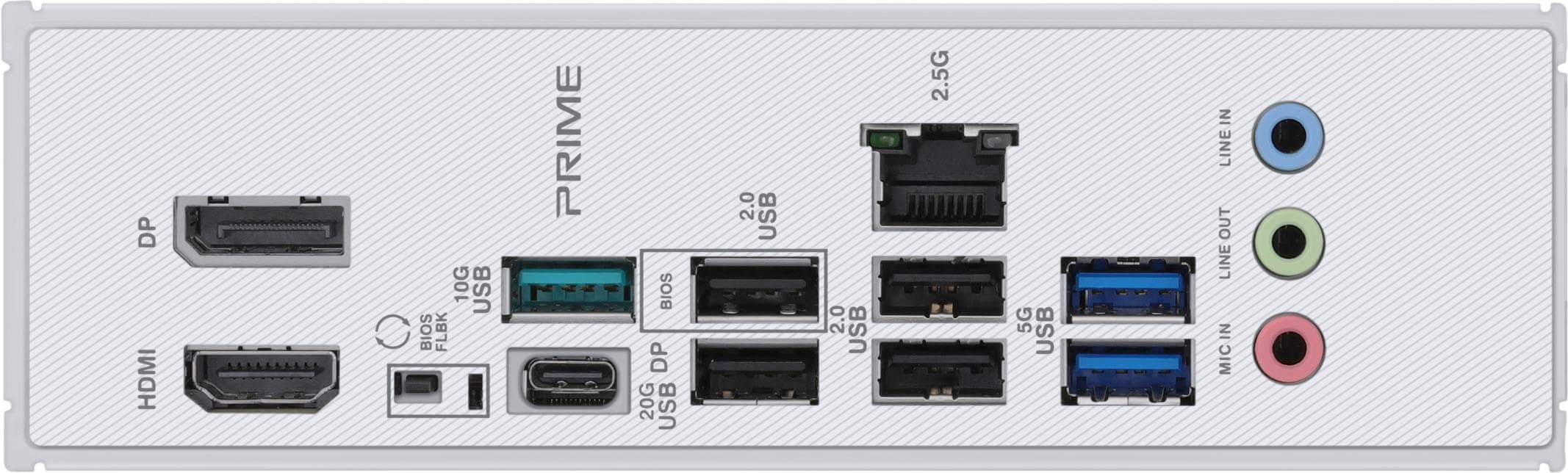

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) |
| 1 x USB 10Gbps port (1 x Type-A) |
| 2 x USB 5Gbps ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMITM port |
| 1 x Realtek 2.5Gb Ethernet port |
| 3 x Audio jacks |
| 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connector |
| Storage related |
| 4 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 10Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen2 headers |
| 1 x Aura RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 10-1 pin Front System Panel header |
| 1 x Thunderbolt (USB4) header |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM (- Digital power design with DrMOS) |
| - LANGuard |
| - Overvoltage Protection |
| - SafeSlot |
| - Stainless-Steel Back I/O |
| ASUS Q-Design |
| - M.2 Q-Latch |
| - PCIe Slot Q-Release |
| - Q-Dashboard |
| - Q-DIMM |
| - Q-LED Core |
| - Q-Slot |
| ASUS Thermal Solution |
| - M.2 heatsink |
| - VRM heatsink design |
| ASUS EZ DIY |
| - BIOS FlashBack button |
| - BIOS FlashBack LED |
| - ProCool |
| - Pre-mounted I/O shield |
| Aura Sync |
| - Aura RGB header |
| - Addressable Gen2 headers |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
| Warranty Information |
| Warranty | 3 Year Warranty |
