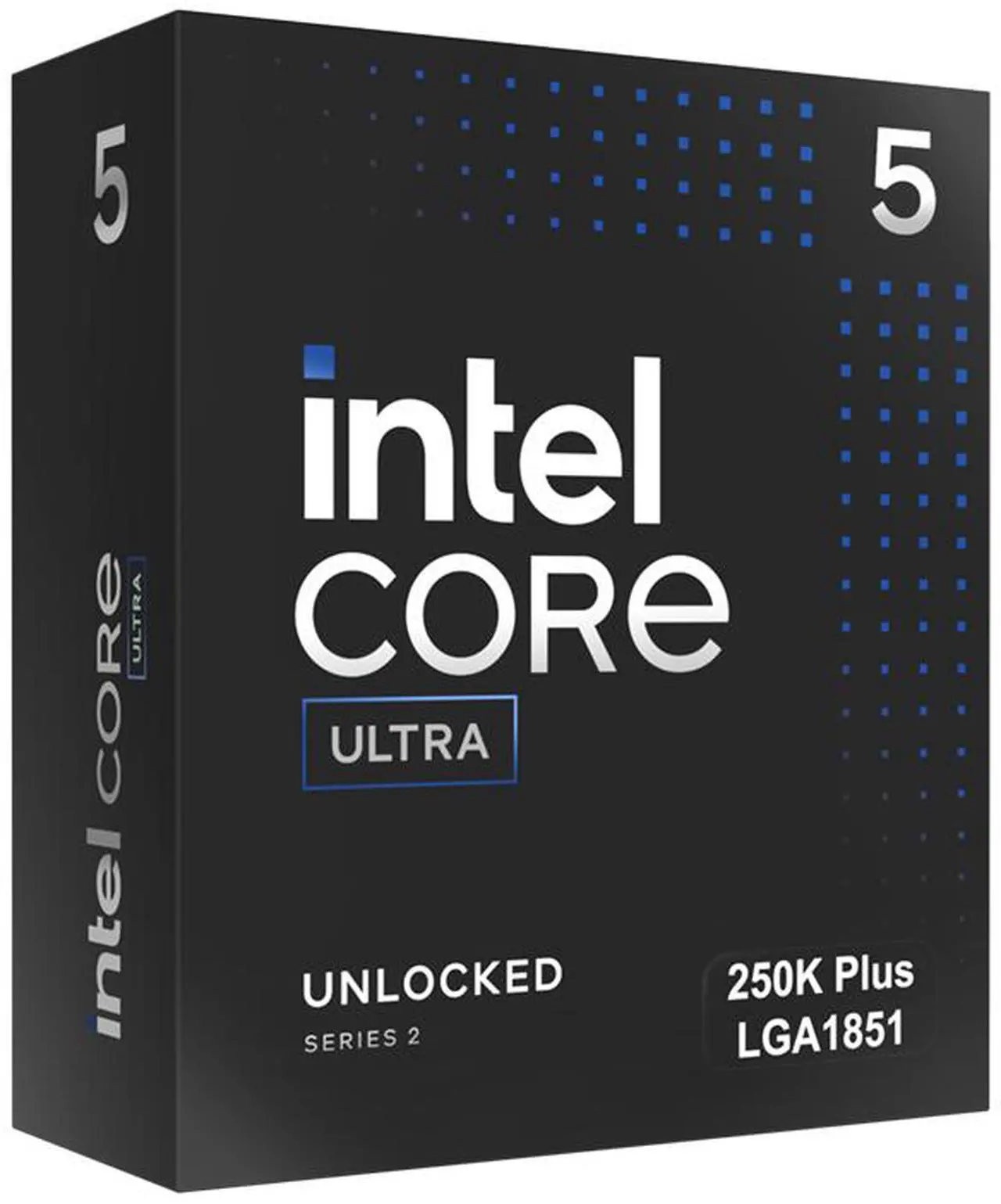

Intel BX80768250K Core Ultra 5 250K Plus 18-Core 5.30GHz Arrow Lake-S Socket LGA1851 Desktop CPU - Cooler Not Included

Product ID: 54086

- Intel 15th Generation Arrow Lake-S Processor
- Intel AI Boost AI Accelerator NPU
- Up to 13 TOPs AI Performance (NPU)
- 6x Performance Cores
- 12x Efficient Cores
- 18 Cores, 18 Threads
- 30MB Intel Smart Cache
- Intel Graphics
- P-Core Max Turbo Clock: Up to 5.30GHz
- E-Core Max Turbo Clock: Up to 4.40GHz
- Socket LGA 1851 Compatible
- Up to DDR5-7200 Dual-Channel Memory Supported
- Up to 256GB (4x64GB) DDR5 Memory Supported
- PCI Express Version 5.0 Supported
- Intel eXtreme Memory 3.0 Overclocking Profiles
- Intel Turbo Boost Max Technology 3.0
- Intel Deep Learning Boost on CPU
- Intel Stock Cooler Not Included
- Base Power: 125W
- Turbo Power: Up to 159W
- Socket LGA 1851 Compatible
- Supports Windows 11, Linux
- 3 Year Warranty

43 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Intel BX80768245K Core Ultra 5 245K 14-Core 5.2GHz Arrow Lake-S S...

In stock with Wootware

R6,499.00

R3,999.00

Save: R 2,500!

Intel BX80768225F Core Ultra 5 225F 10-Core 4.90GHz Arrow Lake-S ...

In stock with Supplier

R3,288.00

Intel BX80768225 Core Ultra 5 225 10-Core 4.90GHz Arrow Lake-S So...

In stock with Supplier

R3,848.00

Features
Product Description
Additional Information
Reviews (0)

Features Product Description

SPECIFICATIONS
Brand	Intel
Series	15th Gen Arrow Lake S
Model	Core Ultra 5 250K Plus (BX80768250K)
CPU Specifications
Cores	18 cores
Number of Performance-cores	6 cores
Number of of Efficient-cores	12 cores
Total Threads	18 threads
Max Turbo Frequency	5.30 GHz
Performance-core Max Turbo Frequency	5.30 GHz
Efficient-core Max Turbo Frequency	4.60 GHz
Performance-core Base Frequency	4.20 GHz
Efficient-core Base Frequency	3.3 GHz
Cache	30MB Intel Smart Cache
Total L2 Cache	30MB
Processor Base Power	125W
Maximum Turbo Power	159W
Intel Deep Learning Boost (Intel DL Boost) on CPU	Yes, supported
AI Software Frameworks Supported by CPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography	TSMC N3B
Memory Specifications
Max Memory Size (dependent on memory type)	256GB
Memory Types	DDR5
Maximum Memory Speed	7200 MT/s
Max # of Memory Channels	2, dual-channel
ECC Memory Supported	Yes
GPU Specifications
GPU Name	Intel Graphics
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	1.9 Ghz
GPU Peak TOPS (Int8)	8
Graphics Output	eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores	4
Max Resolution (HDMI)	4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)
Max Resolution (HDMI)	7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)	7680 x 4320 @ 60Hz
*DirectX Support**	Direct3D 12
*OpenGL Support**	4.5
*OpenCL Support**	3.0
H.264 Hardware Encode/Decode Yes, supported
H.265 (HEVC) Hardware Encode/Decode	Yes, supported
AV1 Encode/Decode	Yes, supported
Intel Quick Sync Video	Yes, supported
Simultaneous Displays Supported	4x simultaneous
Intel Deep Learning Boost (Intel DL Boost) on GPU	Yes, supported
NPU Specifications
NPU Name	Intel AI Boost
NPU Peak TOPS (Int8)	13 TOPs
Sparsity Support	Yes
Windows Studio Effects Support	Yes
AI Software Frameworks Supported by NPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Intel Thunderbolt 4	Yes, supported
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16 2x4, 2x8 2x4, 1x8 4x4
Max # of PCI Express Lanes	24
Package Specifications
Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2020A
Max Operating Temperature	105 °C
General
Platform Support	Windows 11 64-bit
Platform Support	Linux
Warranty Information
Warranty	3 Year Warranty
