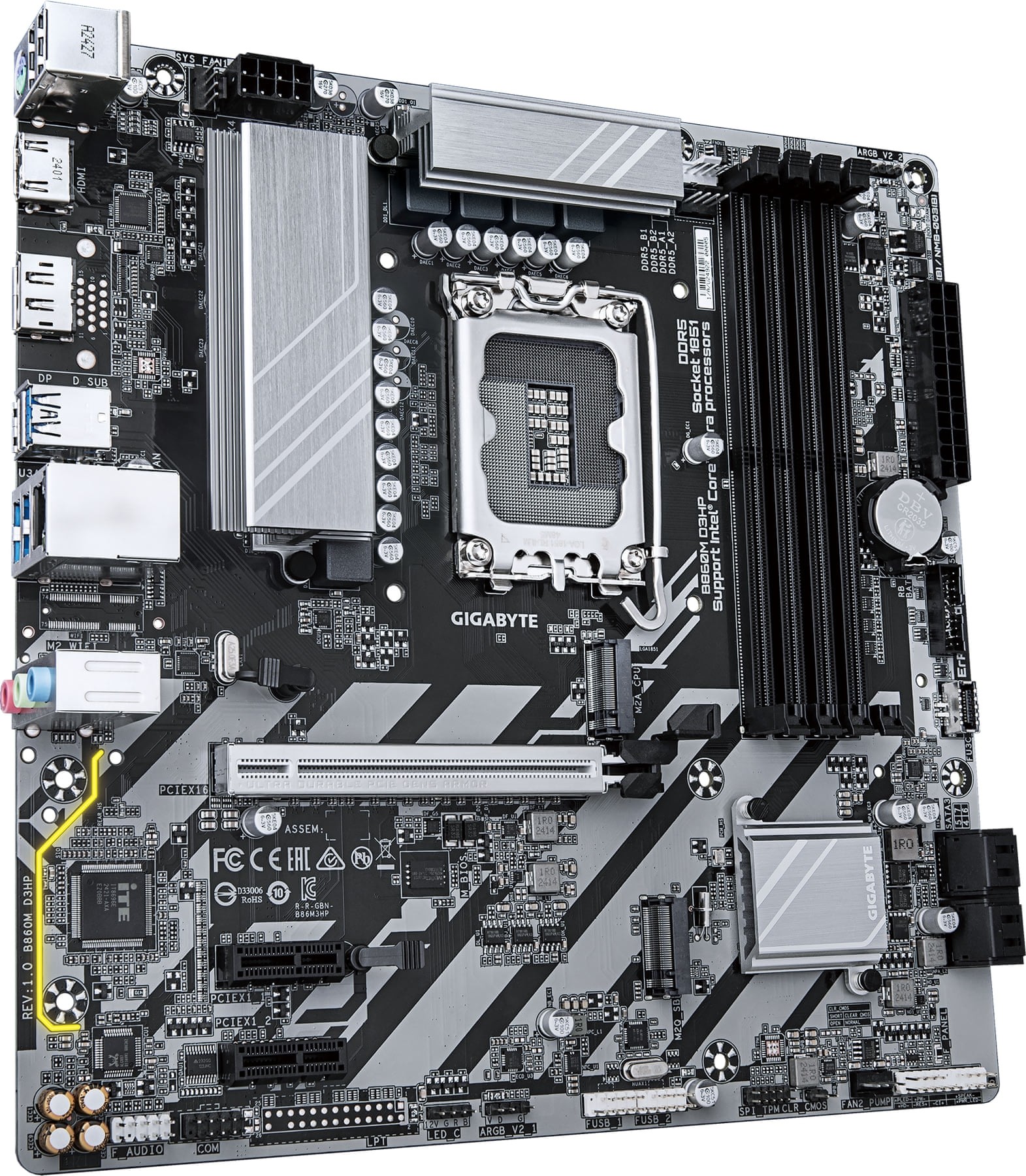

Gigabyte GA-B860M-D3HP B860M D3HP Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte GA-B860M-D3HP B860M D3HP Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

Product ID: 49898

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

1 Review(s) | Add Your Review

- Micro-ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
- Supports Up to DDR5-9066 (OC)
- Supports CUDIMM DDR5 Modules
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x1 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 3x USB 5Gbps Type-A Ports
- 3x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port
- 3x 3.5mm Audio Jacks
- 1x PS/2 Combo Port (Keyboard, Mouse)
- Realtek Gigabit Ethernet RJ-45 LAN
- Realtek High Definition Audio CODEC
- 4+1+2 Twin Hybrid VRM Solution
- Gigabyte EZ-Debug Diagnostic LEDs
- Gigabyte RGB Fusion
- Gigabyte Control Center App
- Supports Windows 11 64-Bit
- 3 Year Warranty

193 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,573.00

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (1)
Questions (0)

Features Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	D3HP Series
Model	B860M D3HP (GA-B860M-D3HP)
CPU Support	Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2)
Chipset	Intel B860 Express
Memory Support
Intel Core Ultra Series Processors (Series 2)	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
HDMI	1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	1x DisplayPort 2.1 port, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR
DisplayPort	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical slot
Intel B860 Chipset	2x PCIe 2.0 x1 Physical, x1 Electrical slots
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Intel B860 Chipset	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
	4x SATA 6Gb/s ports
	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek 7.1 Surround Sound CODEC
Codec	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones
Connectivity
Ports	3x USB 5Gbps Type-A Ports
	3x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS)
	1x DisplayPort 2.1 Port
	3x 3.5mm Audio Jacks
	1x PS/2 Combo Port (Keyboard, Mouse)
	1x Realtek Gigabit Ethernet RJ-45 LAN
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	1x system fan header
	1x system fan/water cooling pump header
	2x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x serial port header
	1x Clear CMOS jumper
Buttons	N/A
LED Displays	Gigabyte EZ-Debug Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Remote Management	WOL by PME, PXE
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Box Contents	User's Manual
	Quick Installation Guide
	I/O Shield
	Two SATA cables
Warranty Information
Warranty	3 Year Warranty
