| SPECIFICATIONS |
| Brand | Gigabyte |
| Series | Gaming X Series |

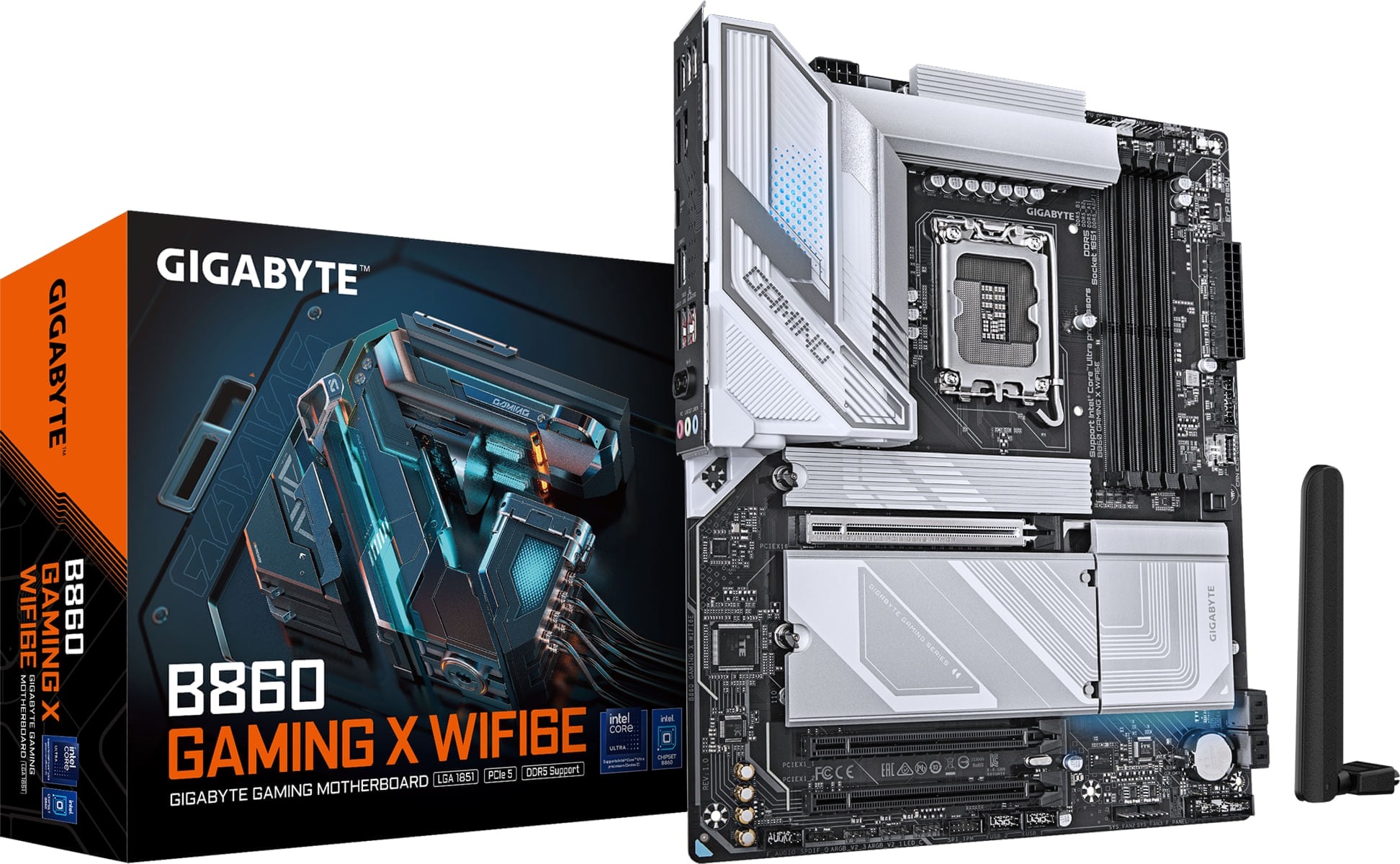

| Model | B860 GAMING X WIFI6E (GA-B860-GAMING-X-WIFI6E) |
| CPU Support | Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2) |
| Chipset | Intel B860 Express |
| Memory Support |
| Intel Core Ultra Series Processors (Series 2) | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Video |
| HDMI | 1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 2.1 port, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR |
| 1x USB4 Type-C Port with DisplayPort 2.1, supporting a maximum resolution of 8K @ 30Hz (DSC), Support for HDCP 2.3, and HDR |
| NOTE: The USB Type-C Port can optionally work exclusively in DisplayPort Alt Mode, supporting DisplayPort 2.1 UHBR10 displays up to 8K @ 30Hz |
| Integrated graphics required. Actual support may vary by CPU. |
| Expansion Slots |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel B860 Chipset | 2x PCIe 4.0 x16 Physical, x1 Electrical slots |
| Storage |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| Intel B860 Chipset | 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) |
| 4x SATA 6Gb/s ports |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Networking |
| LAN | Intel 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 6E 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio |
| Codec | Realtek 7.1 Surround Sound CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones |
| Connectivity |

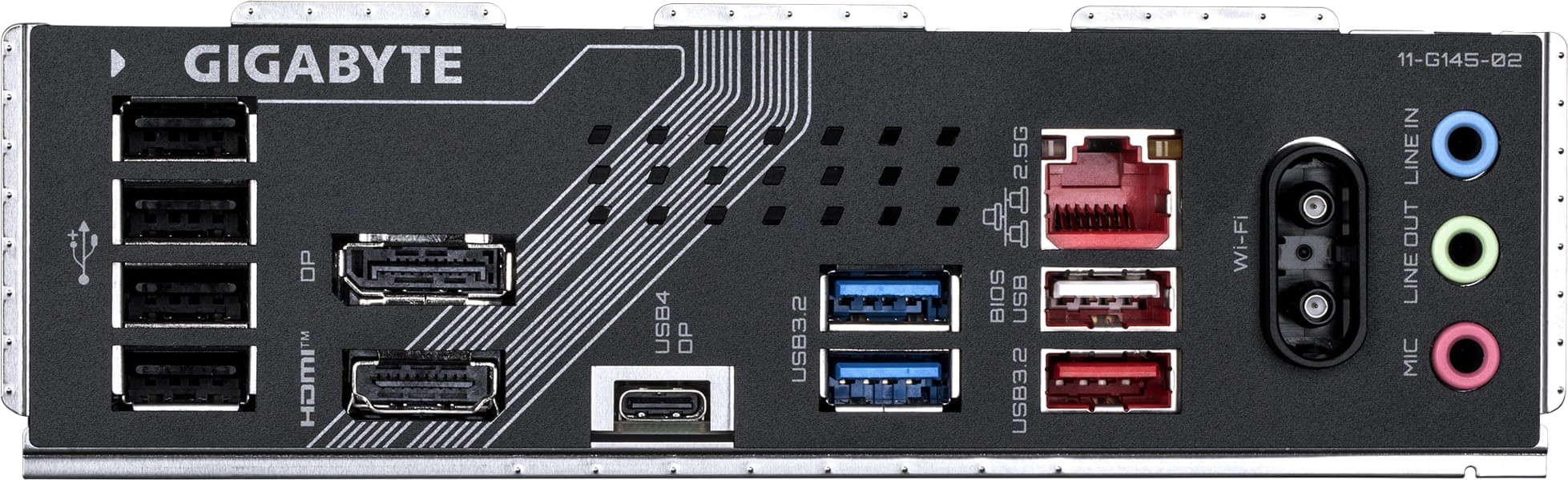

| Ports | 1x USB 40Gbps Type-C Port with DisplayPort Alt Mode |
| 1x USB 10Gbps Type-A Port |
| 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports |
| 1x HDMI 2.1 (TMDS) |
| 1x DisplayPort 2.1 Port |
| 3x 3.5mm Audio Jacks |
| 2x Antenna Connectors |
| 1x Intel 2.5 Gigabit Ethernet RJ-45 LAN |
| General |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector |
| 1x CPU fan header |
| 1x CPU fan/water cooling pump header |
| 3x system fan headers |
| 1x system fan/water cooling pump header |
| 3x addressable RGB Gen2 LED strip headers |
| 1x RGB LED strip header |
| 3x M.2 Socket 3 connectors |
| 4x SATA 6Gb/s connectors |
| 1x front panel header |
| 1x front panel audio header |
| 1x S/PDIF Out header |
| 1x USB Type-C header, with USB 3.2 Gen 2 support |
| 1x USB 3.2 Gen 1 header |
| 2x USB 2.0/1.1 headers |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| 1x Q-Flash Plus button |
| 1x reset jumper |
| 1x Clear CMOS jumper |
| Buttons | 1x Q-Flash Plus Button |
| LED Displays | Gigabyte EZ-Debug Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Box Contents | User's Manual |
| Quick Installation Guide |
| One antenna |
| Two SATA cables |
| Three packs of M.2 thick/thin rubber pads |
| Warranty Information |
| Warranty | 3 Year Warranty |
