| SPECIFICATIONS | |
| Brand | Intel |
| Series | 15th Gen Arrow Lake S |

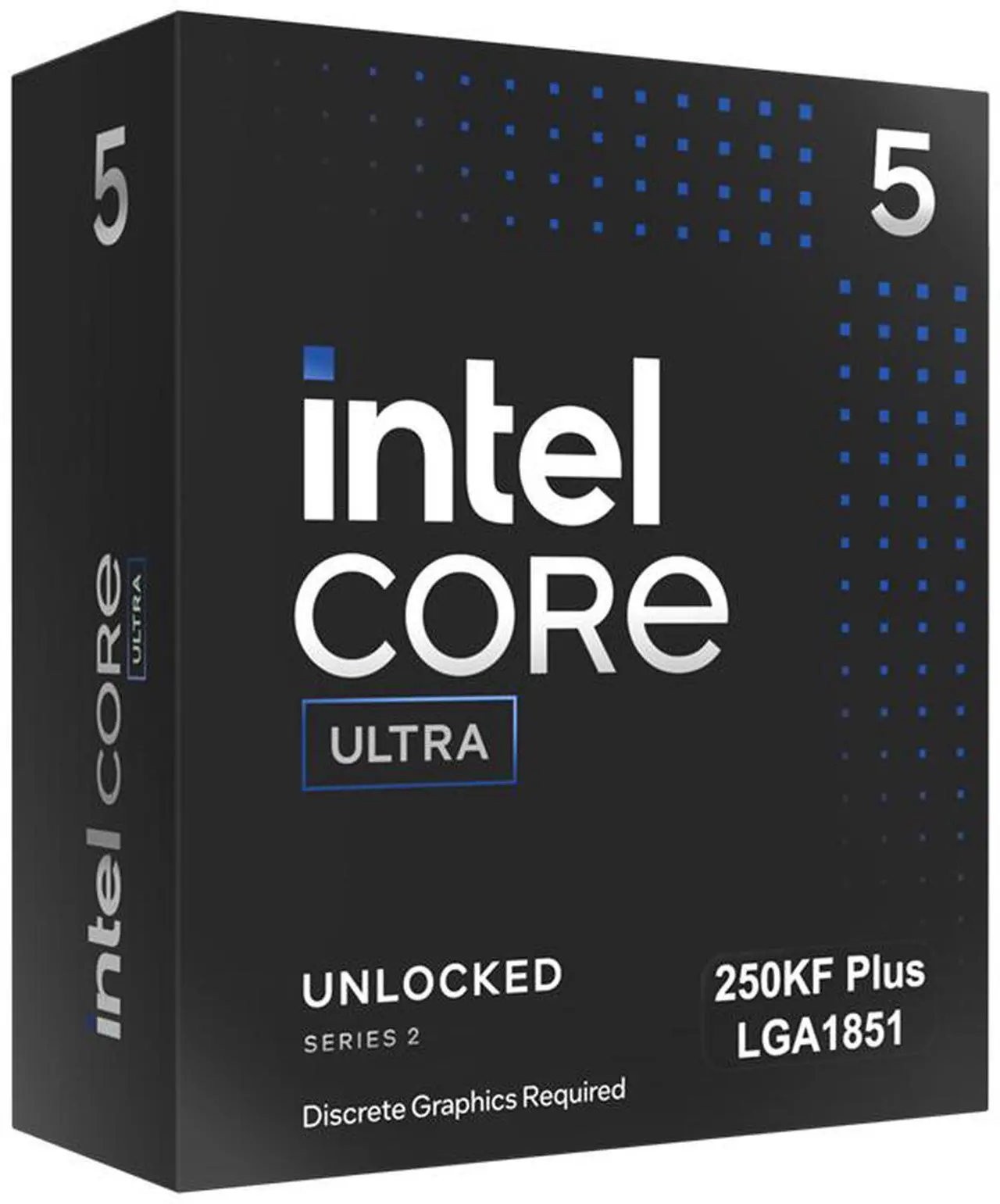

| Model | Core Ultra 5 250KF Plus (BX80768250KF) |
| CPU Specifications | |
| Cores | 18 cores |
| Number of Performance-cores | 6 cores |
| Number of of Efficient-cores | 12 cores |
| Total Threads | 18 threads |
| Max Turbo Frequency | 5.30 GHz |
| Performance-core Max Turbo Frequency | 5.30 GHz |
| Efficient-core Max Turbo Frequency | 4.60 GHz |
| Performance-core Base Frequency | 4.20 GHz |
| Efficient-core Base Frequency | 3.3 GHz |
| Cache | 30MB Intel Smart Cache |
| Total L2 Cache | 30MB |
| Processor Base Power | 125W |
| Maximum Turbo Power | 159W |
| Intel Deep Learning Boost (Intel DL Boost) on CPU | Yes, supported |
| AI Software Frameworks Supported by CPU | OpenVINO, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 256GB |
| Memory Types | DDR5 |
| Maximum Memory Speed | 7200 MT/s |
| Max # of Memory Channels | 2, dual-channel |
| ECC Memory Supported | Yes |
| GPU Specifications | |
| GPU Name | N/A, No integrated Graphics |
| NPU Specifications | |
| NPU Name | Intel AI Boost |
| NPU Peak TOPS (Int8) | 13 TOPs |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO, WindowsML, DirectML, ONNX RT, WebNN |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel Thunderbolt 4 | Yes, supported |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16 2x4, 2x8 2x4, 1x8 4x4 |
| Max # of PCI Express Lanes | 24 |
| Package Specifications | |
| Sockets Supported | FCLGA1851 |
| Thermal Solution Specification | PCG 2020A |
| Max Operating Temperature | 105 °C |
| General | |
| Platform Support | Windows 11 64-bit |
| Linux | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
