| SPECIFICATIONS |
| Brand | ASUS |
| Series | ROG MAXIMUS |

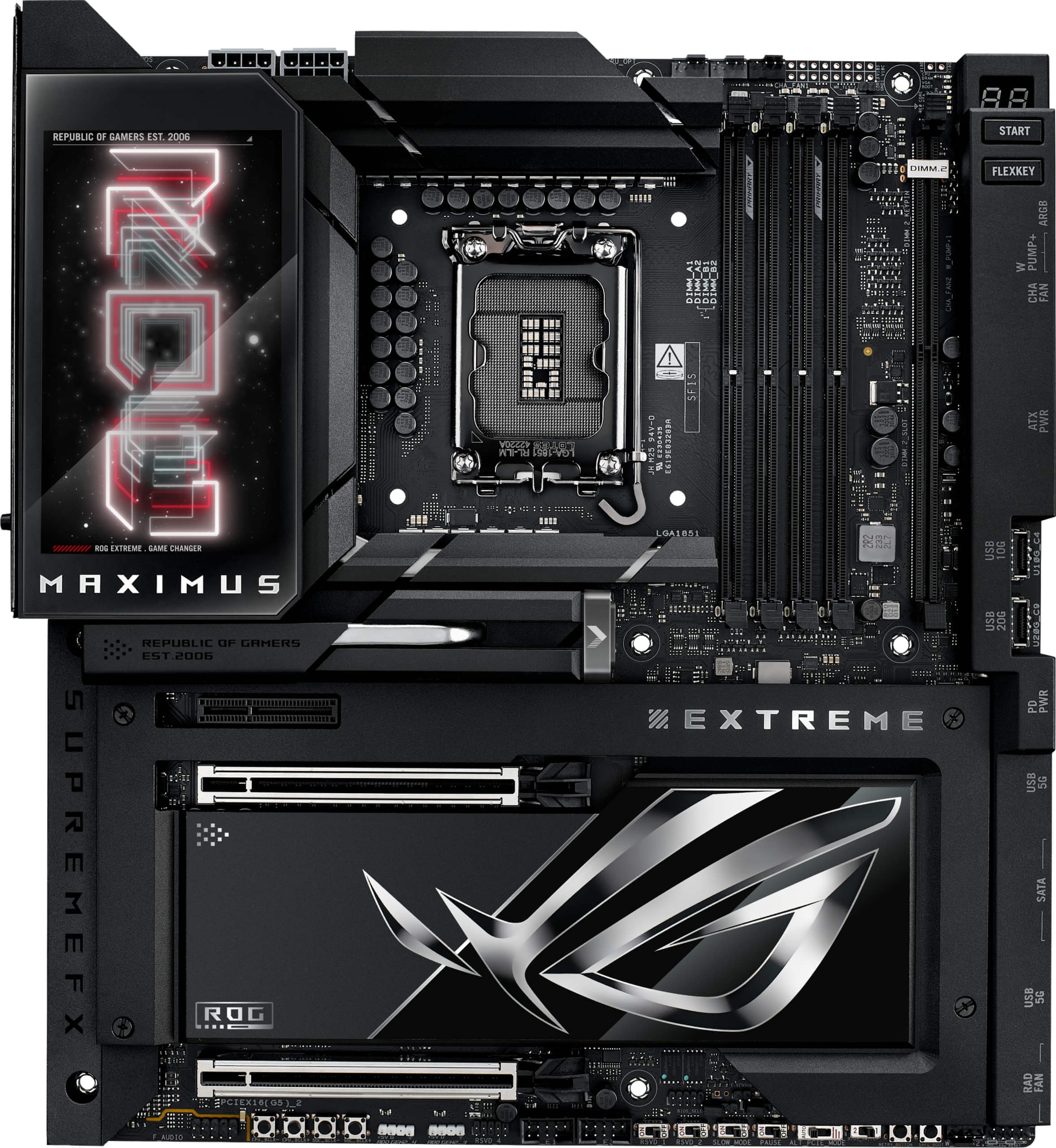

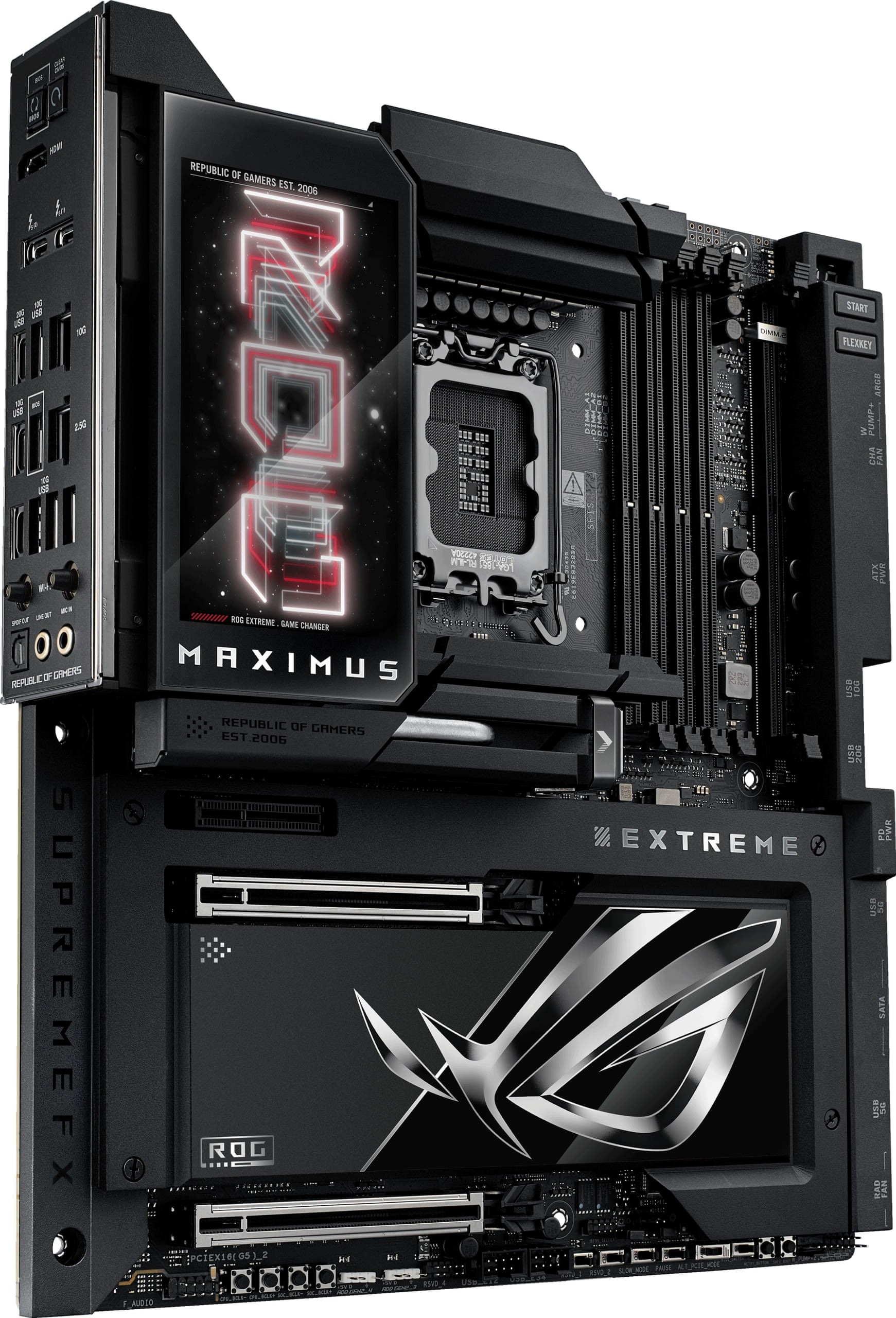

| Model | ROG MAXIMUS Z890 EXTREME (90MB1IA0-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(series 2) |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual Channel Memory Architecture |
| Supports Intel Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III (AEMP III) |
| Supports DIMM Flex |
| Supports DIMM Fit |
| NitroPath DRAM Technology |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMI port** |
| 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs*** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| **Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. |
| ***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt cable. |
| ****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort 2.1 with up to 77.4 Gbit/s. |
| *****VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel Core Ultra Processors(series 2)* |
| 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)** |
| Intel Z890 Chipset** |
| 1 x PCIe 4.0x4 slot |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Support Intel Core Ultra Processors(series 2)* |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)** |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** |
| Intel Z890 Chipset |
| DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| 4 x SATA 6Gb/s ports*** |
| *Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| 1 x Marvell AQtion 10Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth | Intel Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. |
| Bluetooth v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. |
| For Windows 10, only Wi-Fi 6 is supported. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 10 ports) |
| 2 x Thunderbolt 5 ports (2 x USB Type-C) |
| 1 x USB 20Gbps port (1 x USB Type-C) |
| 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) |
| Front USB (Total 10 ports) |
| 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)* |
| 1 x USB 10Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB Type-C power delivery output: max. 5V/3A |
| *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** |
| - Impedance sense for front and rear headphone outputs |
| - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
| - High quality 120 dB SNR stereo playback output and 10 dB SNR recording input |
| - Supports up to 32-Bit/384 kHz playback on front panel |
| Audio Features |
| - SupremeFX Shielding Technology |
| - ESS ES9219 QUAD DAC |
| - LED-illuminated audio jacks |
| - Rear optical S/PDIF out port |
| - Premium audio capacitors |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Back Panel I/O Ports | 2 x Thunderbolt 5 USB Type-C ports |
| 1 x USB 20Gbps port (1 x USB Type-C) |
| 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) |
| 1 x HDMI port |
| 1 x Wi-Fi Module |
| 1 x Intel 2.5Gb Ethernet port |
| 1 x Marvell AQtion 10Gb Ethernet port |
| 2 x LED-illuminated audio jacks |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBack button |
| 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 2 x 4-pin Chassis Fan headers |
| 2 x 4-pin Radiator Fan headers |
| 2 x W_PUMP+ headers |
| 1 x WB_SENSOR header |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connector |
| 1 x 8-pin PCIe Power connector |
| Storage related |
| 4 x M.2 slots (Key M) |
| 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 20Gbps connector (supports USB Type-C) |
| 1 x USB 10Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers |
| 2 x Addressable Gen 2 header |
| 1 x Alteration PCIe mode switch |
| 4 x BCLK button |
| 1 x BIOS Switch button |
| 1 x FlexKey button |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x LN2 Mode jumper |
| 18 x ProbeIt Measurement Points |
| 1 x ReTry button |
| 2 x RSVD switchs |
| 1 x RSVD header |
| 1 x Safe Boot button |
| 1 x Slow Mode switch |
| 1 x Start button |
| 1 x 10-1 pin System Panel header |
| 1 x Thermal Sensor header |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | E-ATX Form Factor |
| 30.5 cm x 27.7 cm |
| Warranty Information |
| Warranty | 3 Year Warranty |
