| SPECIFICATIONS |
| Brand | ASUS |
| Series | ROG Strix Series |
| Model | ROG STRIX B860-G GAMING WIFI |
| CPU Support | Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2) |
| Chipset | Intel B860 Express |
| Memory Support |
| Intel Core Ultra Series Processors (Series 2) | 4x DIMM slots, max. 256GB, DDR5 |
| Supports up to 9066 MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual channel memory architecture |
| DIMM Fit |
| Supports Intel Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III (AEMPIII) |
| Video |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| 1x Thunderbolt 4 USB Type-C Port with DisplayPort 1.4, supporting a maximum resolution of 8K @ 60Hz (DSC), Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. |
| Expansion Slots |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Storage |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| Intel B860 Chipset | M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gb/s ports |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Networking |
| LAN | Intel 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| ASUS LANGuard Protection |
| WiFi | WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio |
| Codec | Realtek ALC1220P 7.1 Surround Sound |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
| Supports up to 32-Bit/384 kHz playback |
| Savitech SV3H712 AMP with premium audio capacitors |
| Dedicated audio PCB layers |
| Connectivity |

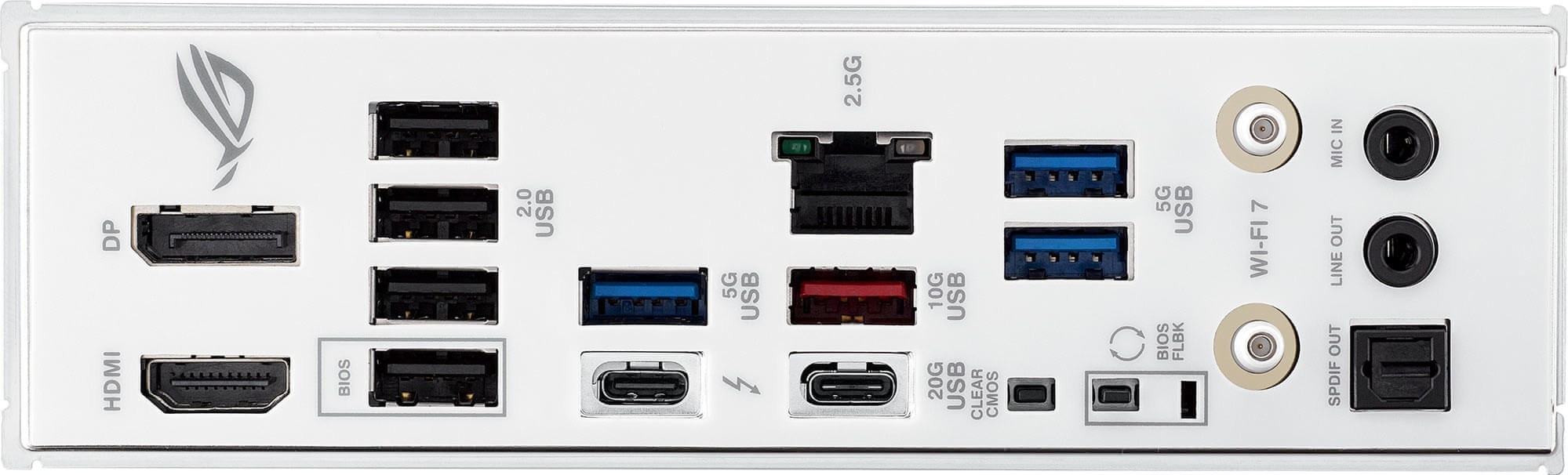

| Ports | 1x Thunderbolt 4 USB Type-C Port with DisplayPort |
| 1x USB 20Gbps Type-C Port |
| 1x USB 10Gbps Type-A Port |
| 3x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports |
| 1x HDMI 2.1 Port |
| 1x DisplayPort 1.4 Port |
| 2x 3.5mm Audio Jacks (Headphone, Microphone) |
| 2x SMA Connectors |
| 1x Optical S/PDIF Audio Port |
| 1x Intel 2.5 Gigabit Ethernet RJ-45 LAN |
| General |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header |
| 1x 4-pin AIO Pump header |
| 2x 4-pin Chassis Fan headers |
| 1x 24-pin Main Power connector |
| 2x 8-pin 12V CPU Power connector |
| 4x M.2 slots (Key M) |
| 4x SATA 6Gb/s ports |
| 1x USB 10Gbps connector (supports USB Type-C ) |
| 1x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2x USB 2.0 header supports 3 additional USB 2.0 ports |
| 3x Addressable Gen2 header(s) |
| 1x Front Panel Audio header (F_AUDIO) |
| 1x 10-1 pin Front System Panel header |
| 1x Thermal Sensor header |
| Buttons | 1x BIOS Flashback Button, 1x CMOS Reset Button |
| LED Displays | ASUS Q-LED Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |

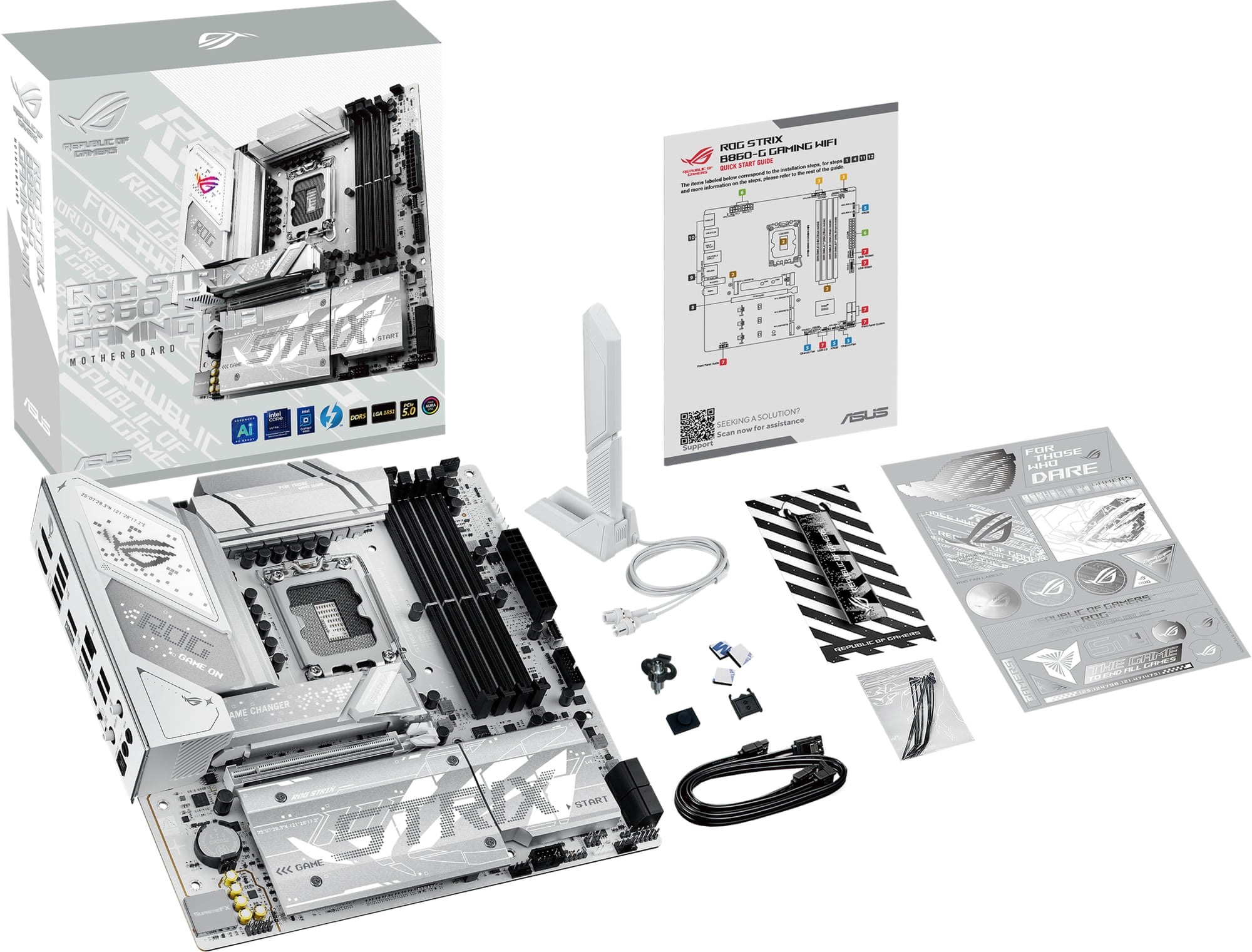

| Box Contents | 2x SATA 6Gb/s cables |
| 1x ASUS WiFi Q-Antenna |
| 1x Cable ties package |
| 1x M.2 Q-Latch |
| 1x M.2 Q-Slide |
| 1x ROG key chain |
| 1x ROG Strix stickers |
| 3x M.2 rubbers |
| 1x M.2 backplate rubber package(s) |
| 1x Quick start guide |
| Warranty Information |
| Warranty | 3 Year Warranty |
