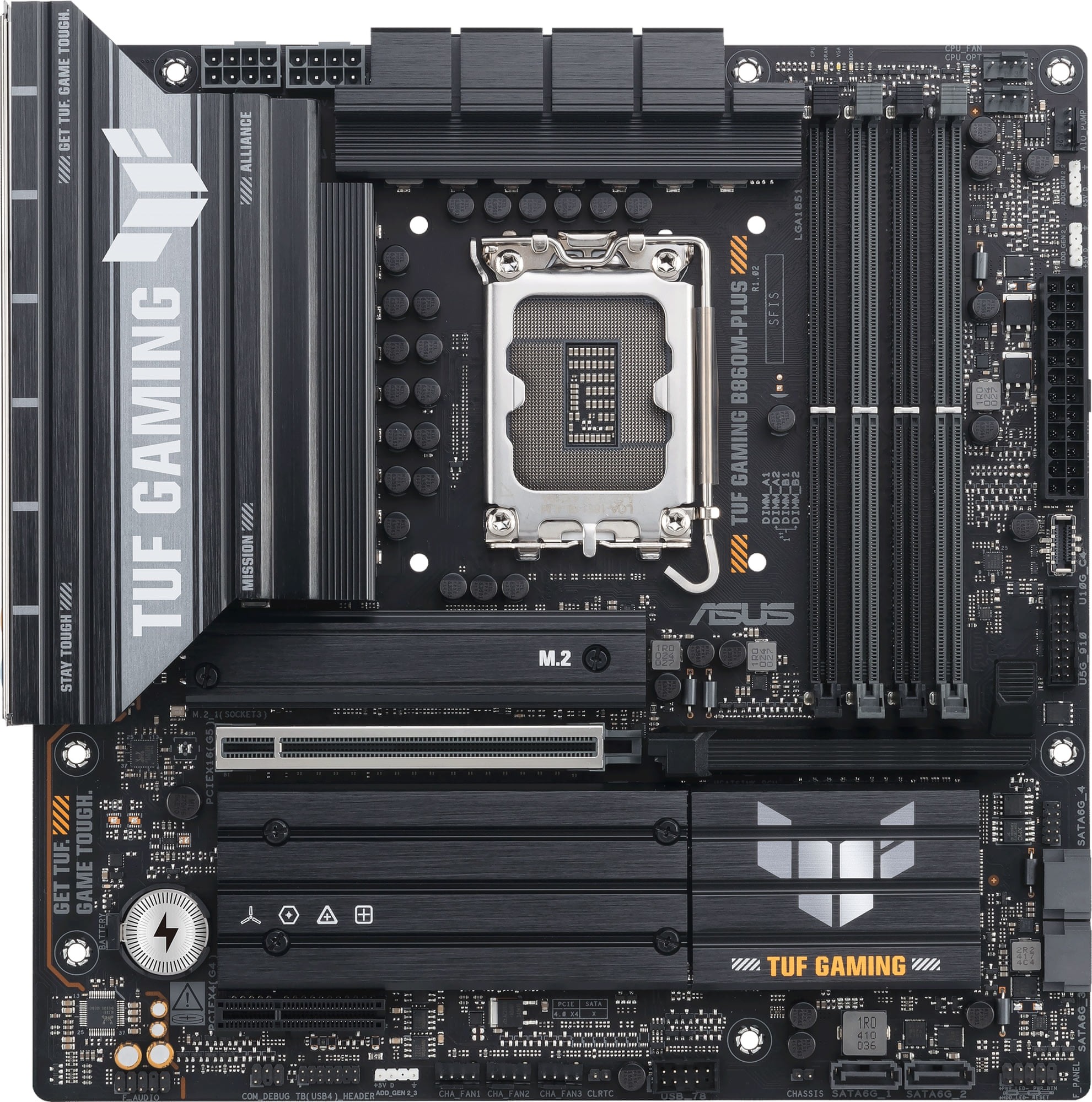

ASUS TUF GAMING B860M-PLUS Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS TUF GAMING B860M-PLUS Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

Product ID: 49514

Be the first to review this product

- Micro-ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 4x DDR5 DIMM Slots, Supports Up To 256GB
- Supports Up to DDR5-8800 CU-DIMM (OC)
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x4 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 10Gbps Type-C Port
- 1x USB 20Gbps Type-C Port with DisplayPort
- 2x USB 10Gbps Type-A Port
- 4x USB 5Gbps Type-A Ports
- 1x USB 2.0 Type-A Port
- 1x HDMI 2.1, 1x DisplayPort 1.4 Port
- 5x 3.5mm Audio Jacks Support Surround Sound
- 1x Optical S/PDIF Audio Port
- Intel 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek High Definition Audio CODEC
- 12+1+2+1 Digi+VRM Solution
- ASUS Q-Design including Q-DIMM, DIMM Fit & M.2 Q-Latch
- ASUS PCIe Slot Q-Release Mechanism
- ASUS Aura RGB Sync
- ASUS Q-LED Diagnostic LEDs
- ASUS Armoury Crate Software
- Supports Windows 11 64-Bit
- 3 Year Warranty

214 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte B860M D3HP Intel B860 LGA 1851 Arrow Lake Micro-ATX Desk...

In stock with Supplier

R2,595.00

1 Review(s)

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	TUF Gaming Series
Model	TUF GAMING B860M-PLUS
CPU Support	Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2)
Chipset	Intel B860 Express
Memory Support
Intel Core Ultra Series Processors (Series 2)	4x DIMM slots, max. 256GB, DDR5
	Support up to 8800 MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
	Dual Channel Memory Architecture
	DIMM Fit
	Supports Intel Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile III (AEMPIII)
Video
HDMI	1x HDMI 2.1 (TMDS) port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
	1x USB 20Gbps Type-C Port with DisplayPort 1.4, supporting a maximum resolution of 4K @ 60Hz (DSC), Support for HDCP 2.3, and HDR
	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical slot
Intel B860 Chipset	1x PCIe 4.0 x4 Physical, x4 Electrical slot
Storage
CPU Direct	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	4x SATA 6Gb/s ports
	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Networking
LAN	Intel 2.5 Gigabit LAN 10/100/1000/2500Mbps
LAN	ASUS LANGuard Protection
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek 7.1 Surround Sound CODEC
	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones
	Supports up to 24-Bit/192 kHz playback
	Dedicated audio PCB layers
	Audio Shielding
	Rear optical S/PDIF out port
Connectivity

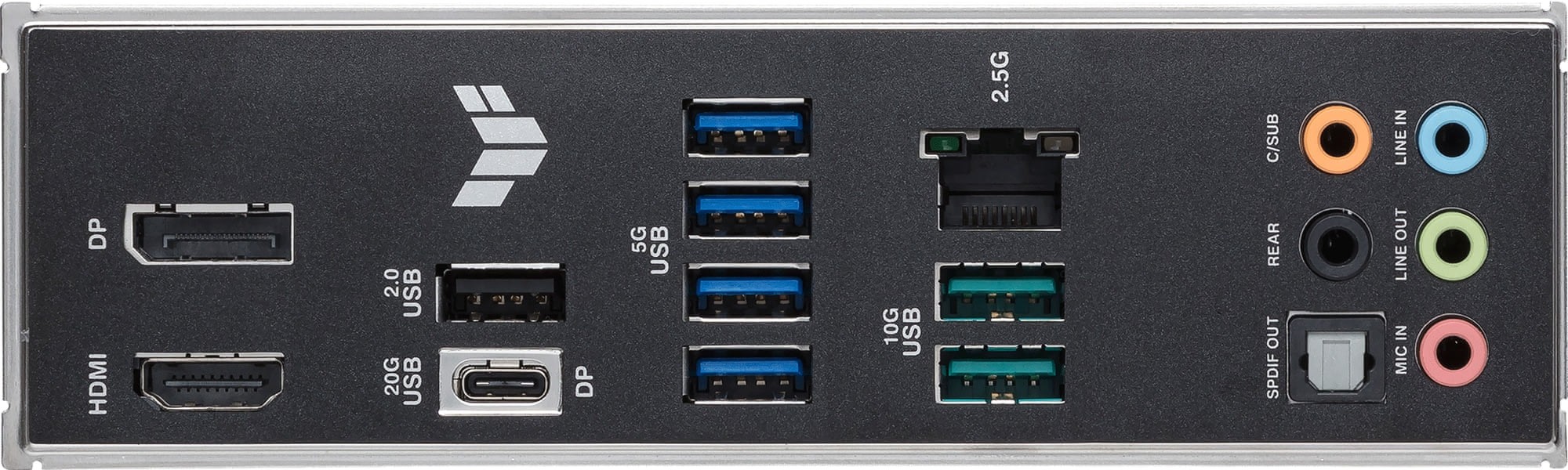

Ports	1x USB 20Gbps Type-C Port with DisplayPort
	2x USB 10Gbps Type-A Port
	4x USB 5Gbps Type-A Ports
	1x USB 2.0 Type-A Port
	1x HDMI 2.1
	1x DisplayPort 1.4 Port
	5x 3.5mm Audio Jacks Support Surround Sound
	1x Optical S/PDIF Audio Port
	1x Intel 2.5 Gigabit Ethernet RJ-45 LAN
General
Internal Connectors	1x 4-pin CPU Fan header
	1x 4-pin CPU OPT Fan header
	1x 4-pin AIO Pump header
	3x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	2x 8-pin 12V Power connectors
	3x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	1x USB 10Gbps connector (supports USB Type-C )
	1x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1x USB 2.0 header supports 2 additional USB 2.0 ports
	3x Addressable Gen 2 headers
	1x Clear CMOS header
	1x Chassis Intrusion header
	1x Front panel audio header (F_AUDIO)
	1x 10-1 pin Front System Panel header
	1x Thunderbolt (USB4) header
Buttons	N/A
LED Displays	ASUS Q-LED Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Remote Management	WOL by PME, PXE
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Box Contents	2x SATA 6Gb/s cables
	2x M.2 Rubber Packages
	1x TUF Gaming sticker
	1x Screw package for M.2 SSD
	1x Quick start guide
Warranty Information
Warranty	3 Year Warranty
