| SPECIFICATIONS |
| Brand | MSI |
| Series | GAMING Series |

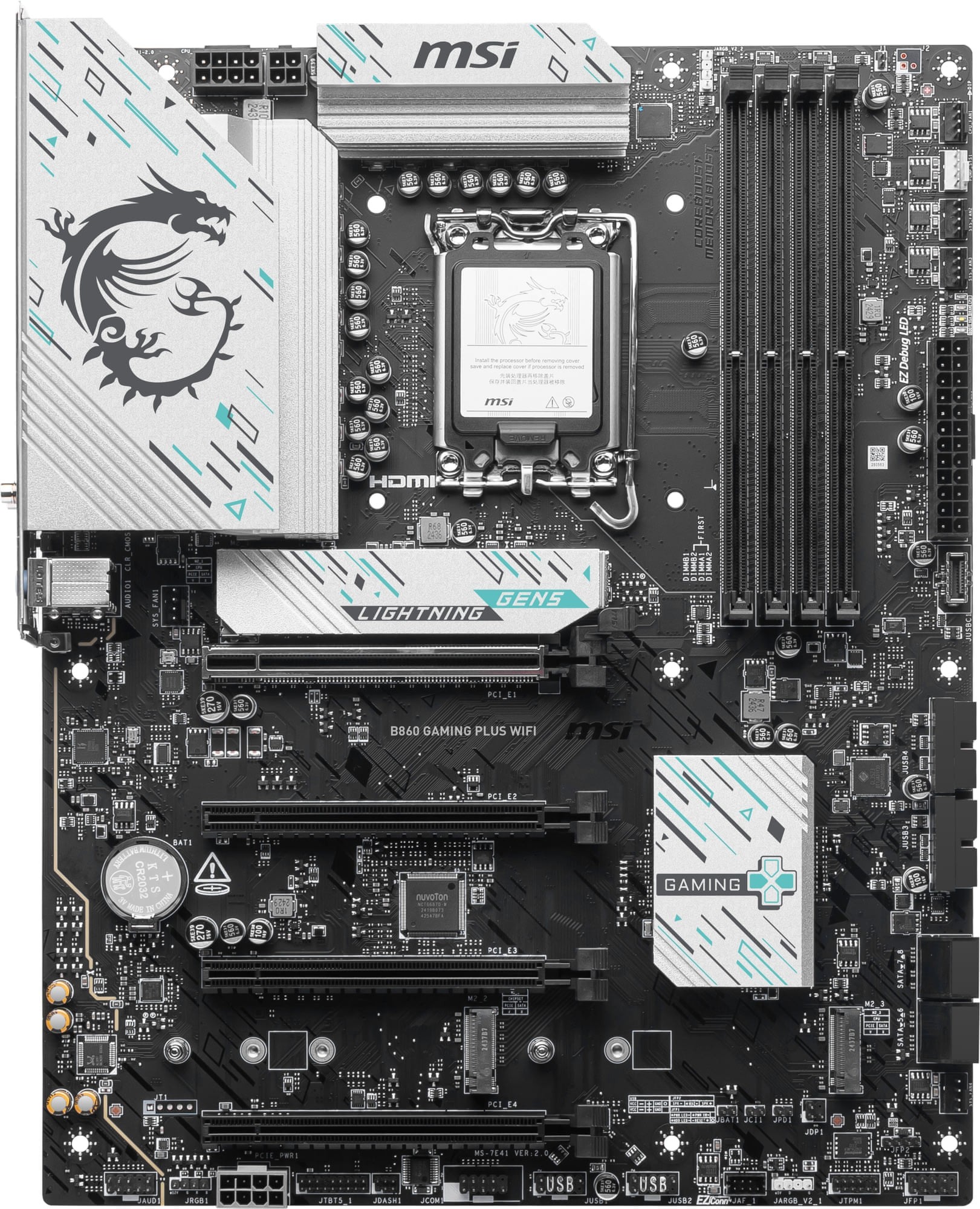

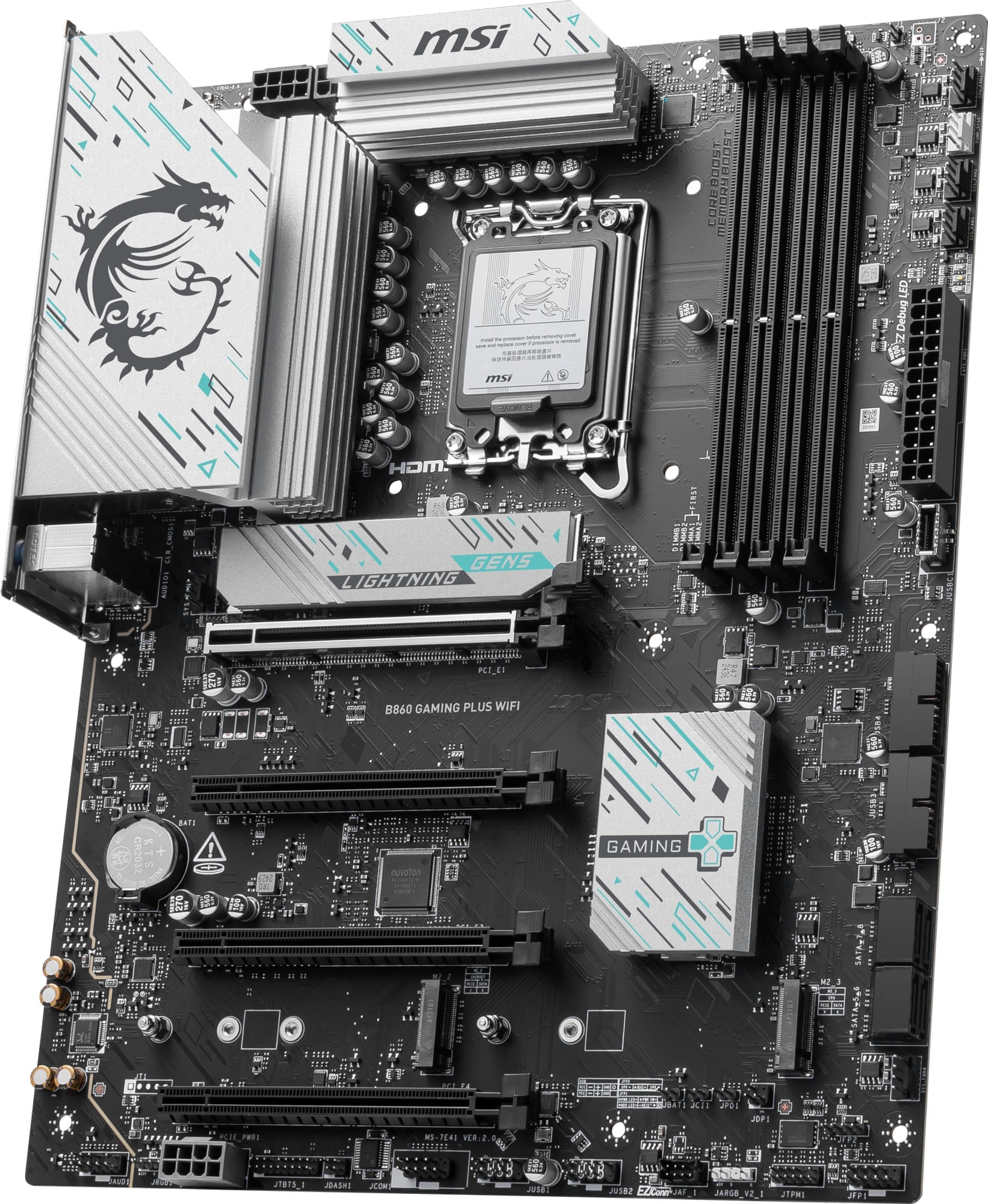

| Model | B860 GAMING PLUS WIFI |
| CPU Support | LGA 1851 Supports Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 Express |
| Memory Support |
| Intel 12th & 13th Gen Series | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Max. overclocking frequency: |
| 1DPC 1R Max speed up to 8800 MT/s |
| 1DPC 2R Max speed up to 7200 MT/s |
| 2DPC 1R Max speed up to 6400 MT/s |
| 2DPC 2R Max speed up to 5600 MT/s |
| Supports Intel POR Speed and JEDEC Speed |
| Supports Memory Overclocking and Intel XMP 3.0 |
| Supports Dual-Controller Dual-Channel mode |
| Supports Non-ECC, Un-buffered memory |
| Supports CUDIMM |
| Video |
| USB Type-C | 1x Thunderbolt 4 Port with DisplayPort 2.1, supporting a maximum resolution of 8K @ 60 Hz, Support for HDR and HDCP 2.3 |
| DisplayPort | 1x DisplayPort 1.4 Port, supporting a maximum resolution of 4096x2304 @ 60 Hz, Support for HDR and HDCP 2.3 |
| HDMI | 1x HDMI 2.1 Port, supporting a maximum resolution of 8K @ 60 Hz, Support for FRL, HDR and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. |
| Expansion Slots |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical Slot (PCI_E1) |
| Intel B760 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical Slot (PCI_E3) |
| 2x PCIe 4.0 x16 Physical, x4 Electrical Slots (PCI_E2, PCI_E4) |
| Storage |
| CPU Direct | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Intel B760 Chipset | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices |
| 4x SATA 6G |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| Networking |
| LAN | Intel Killer E5000 5Gbps LAN Adapter |
| WiFi | Intel Killer BE1750x WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio |
| Codec | Realtek ALC897 Codec |
| 7.1-Channel USB High Performance Audio |

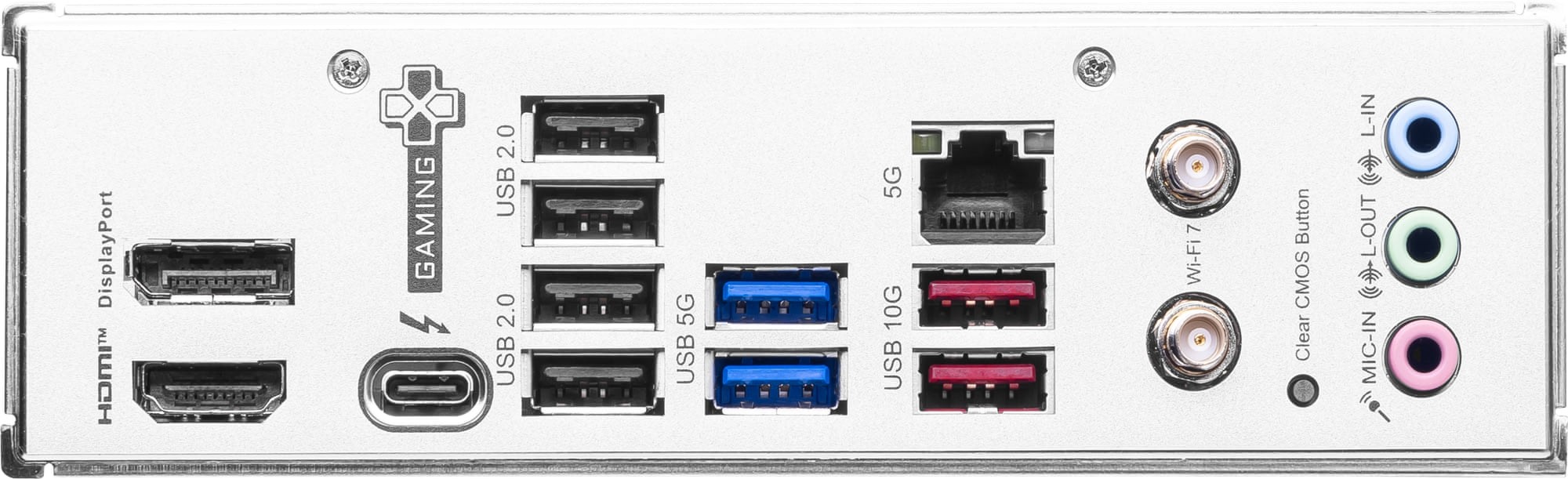

| Connectivity |
| Ports | 1x Thunderbolt 4 USB 40Gbps Type-C Port with DisplayPort |
| 2x USB 10Gbps Type-A Ports |
| 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports |
| 1x HDMI 2.1 (TMDS) |
| 1x DisplayPort 1.4 Port |
| 3x 3.5mm Audio Jacks |
| 2x WiFi Antenna Jacks |
| 1x Intel Killer E5000 5 Gigabit Ethernet RJ-45 LAN |
| Buttons | Clear CMOS Button |
| General |
| Internal Connectors | 1x Thunderbolt5 card connector(JTBT5, support RTD3) |
| 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x Power Connector(PCIE_PWR 8pin) |
| 1x CPU Fan |
| 1x Combo Fan (Pump_Sys Fan) |
| 4x System Fan |
| 1x EZ Conn-header (JAF_1) |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x Tuning Controller connector(JDASH) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 4x USB 5Gbps Type A ports |
| 1x USB 10Gbps Type C ports |
| I/O Controller | NUVOTON NCT6687D-M Controller Chip |
| LED Displays | 4x EZ Debug LEDs, 1x EZ Memory Detection LED |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS |
| Form Factor | ATX Form Factor, 304.8 x 243.84mm (H x W) |
| Operating System Support | Windows 11 64-bit |

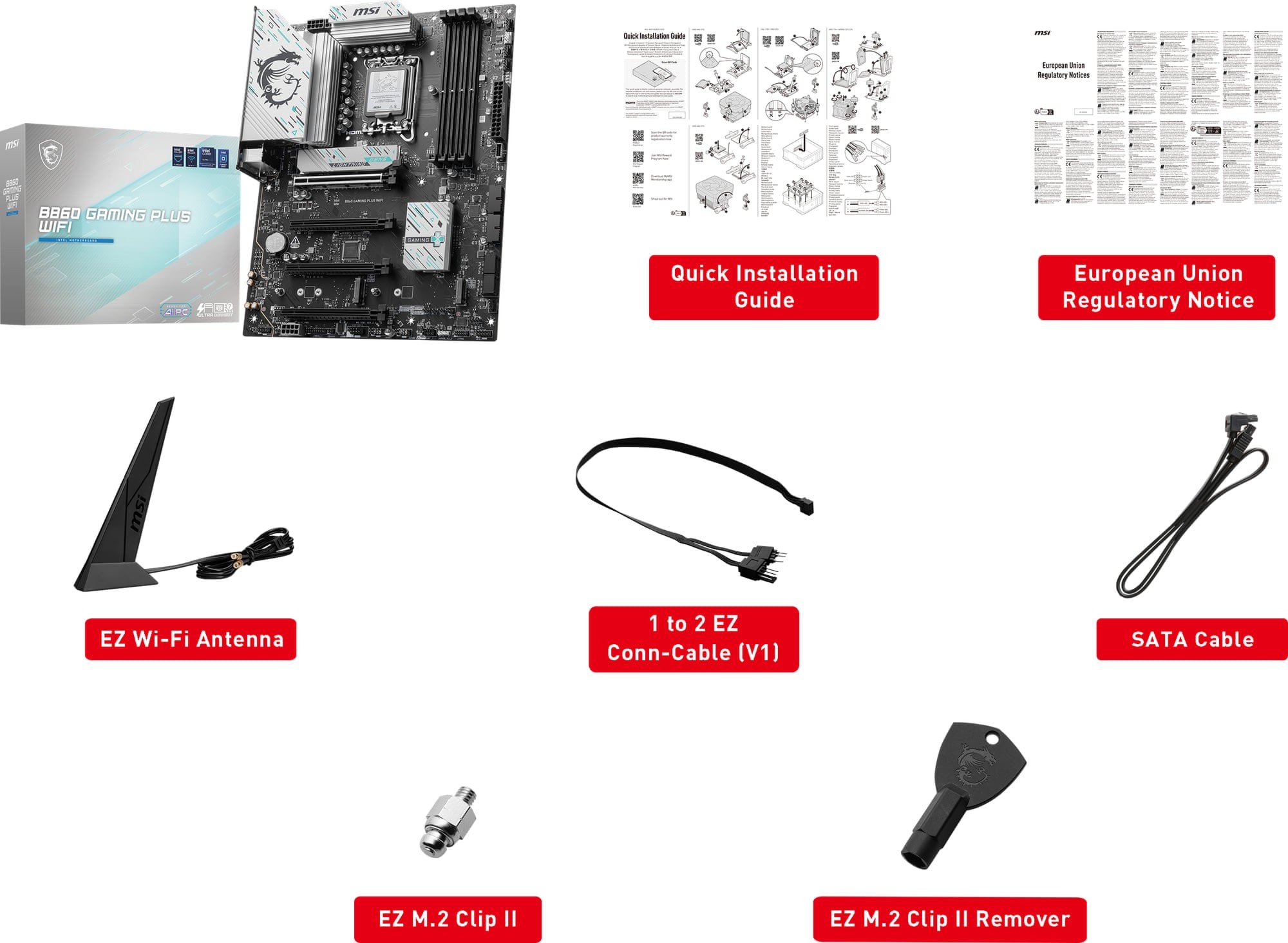

| Boxed Accessories | 1x Quick installation guide |
| 1x European Union Regulatory Notices |
| 1x SATA Cable |
| 1x EZ Front Panel Cable |
| 1x 1 to 2 EZ Conn-Cable (V1) |
| 1x EZ Wi-Fi antenna |
| 2x EZ M.2 Clip II |
| 1x EZ M.2 Clip II Remover |
| Warranty Information |
| Warranty | 3 Year Warranty |
