| SPECIFICATIONS |
| Brand | ASUS |
| Series | TUF GAMING |

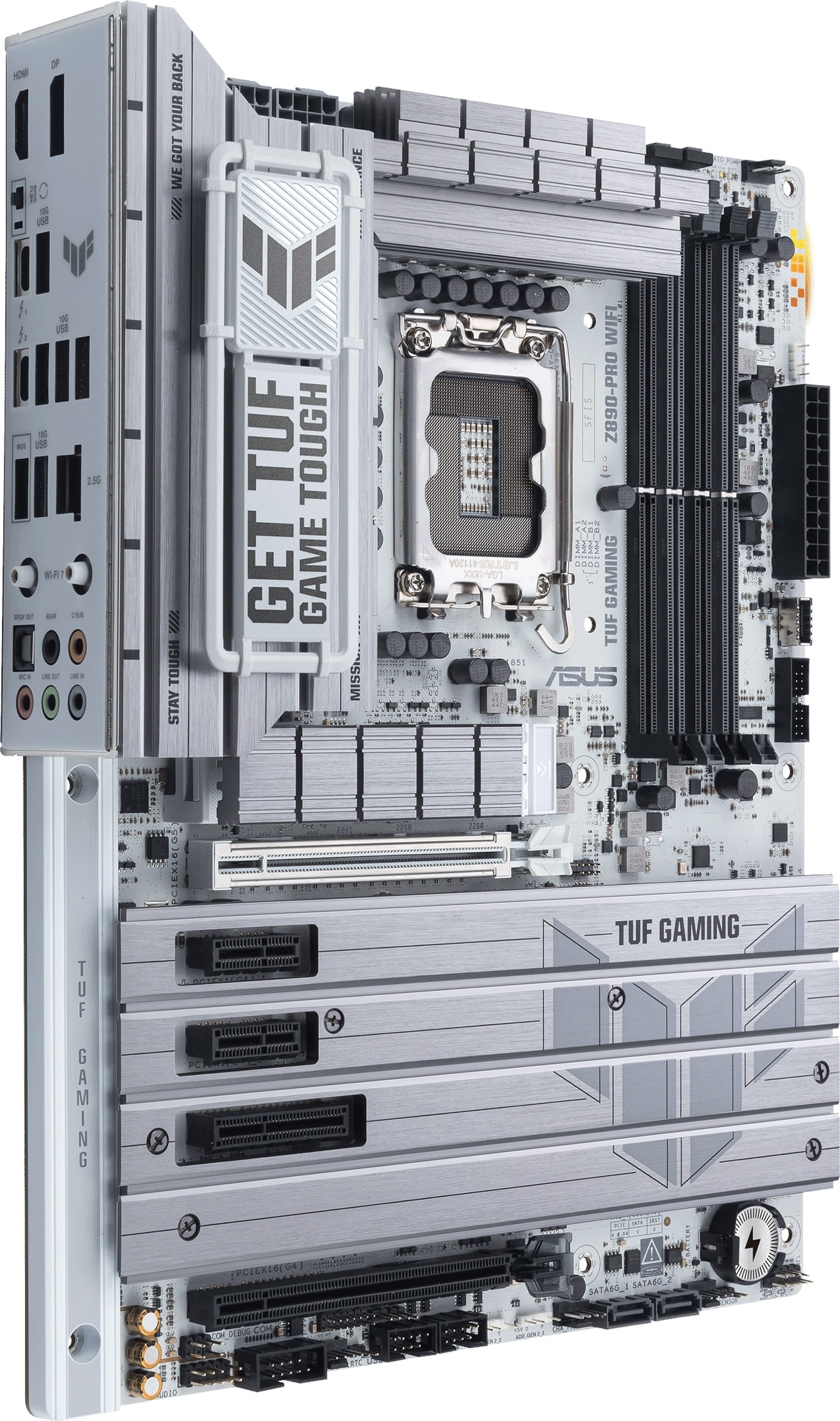

| Model | TUF GAMING Z890-PRO WIFI (90MB1IR0-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(series 2), LGA1851* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual channel memory architecture |
| DIMM Fit |
| Supports Intel Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III(AEMPIII) |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. |
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** |
| 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
| *** Supports 4K@60Hz as specified in HDMI 2.1. |
| ****Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. |
| ***** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel Core Ultra Processors(series 2)* |
| 1 x PCIe 5.0 x16 slot |
| Intel Z890 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| 1 x PCIe 4.0 x4 slot |
| 2 x PCIe 4.0 x1 slots |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors(series 2)* |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Intel Z890 Chipset |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 8 ports) |
| 2 x Thunderbolt 4 ports (2 x USB Type-C) |
| 6 x USB 10Gbps ports (6 x Type-A) |
| Front USB (Total 7 ports) |
| 1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge )* |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
| - Impedance sense for front and rear headphone outputs |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| - Supports up to 32-Bit/192 kHz playback* |
| Audio Features |
| - Audio Shielding |
| - Rear optical S/PDIF out port |
| - Premium audio capacitors |
| - Dedicated audio PCB layers |
| - Audio cover |
| - Unique de-pop circuit |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C ports |
| 6 x USB 10Gbps ports (6 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI port |
| 1 x Wi-Fi module |
| 1 x Intel 2.5Gb Ethernet port |
| 5 x Audio jacks |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power Related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connector |
| Storage Related |
| 4 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 20Gbps connector (supports USB Type-C ) |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Clear CMOS header |
| 1 x Chassis Intrusion header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x 10-1 pin Front System Panel header |
| 1 x Thermal Sensor header |
| 1 x Thunderbolt (USB4) header |
| Special Features | ASUS TUF PROTECTION |
| - DIGI+ VRM (- Digital power design with DrMOS) |
| - ESD Guards |
| - TUF LANGuard |
| - Overvoltage protection |
| - SafeSlot |
| - Stainless-steel back I/O |
| ASUS Q-Design |
| - M.2 Q-Latch |
| - M.2 Q-Release |
| - M.2 Q-Slide |
| - Q-Release Slim (with PCIe SafeSlot) |
| - Q-Antenna |
| - Q-Dashboard |
| - Q-DIMM |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| - Q-Slot |
| ASUS Thermal Solution |
| - M.2 heatsink backplate |
| - M.2 heatsink |
| - VRM heatsink design |
| ASUS EZ DIY |
| - BIOS FlashBack button |
| - BIOS FlashBack LED |
| - CPU Socket lever protector |
| - ProCool |
| - Pre-mounted I/O shield |
| - SafeDIMM |
| Aura Sync |
| - Addressable Gen 2 headers |
| Front Panel USB 20Gbps with PD Fast Charge Support |
| - Support: up to 30W fast charging and USB Wattage Watcher |
| - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| - Compatible with PD3.0 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm |
| Warranty Information |
| Warranty | 3 Year Warranty |
