| SPECIFICATIONS |
| Brand | Gigabyte |
| Series | AERO |

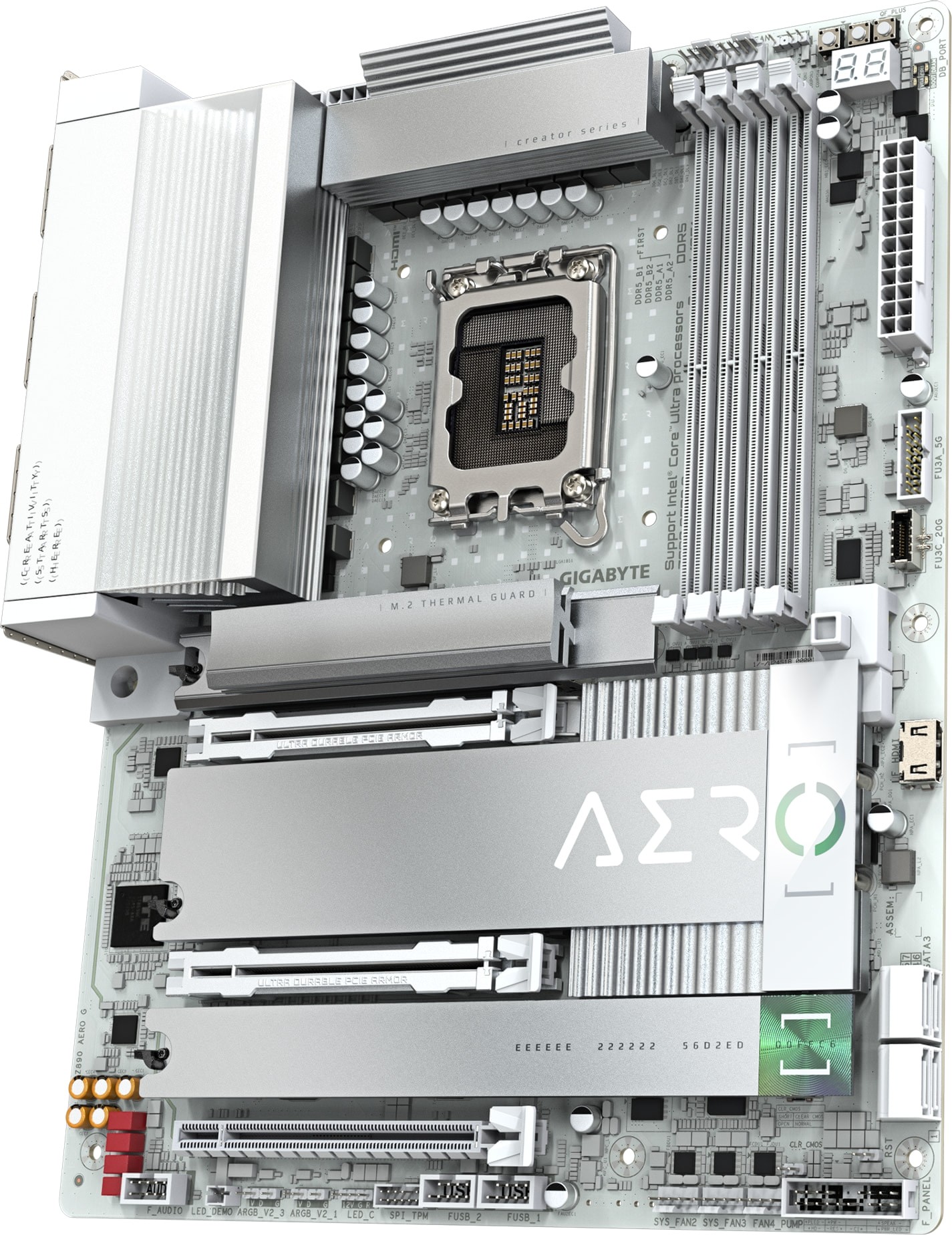

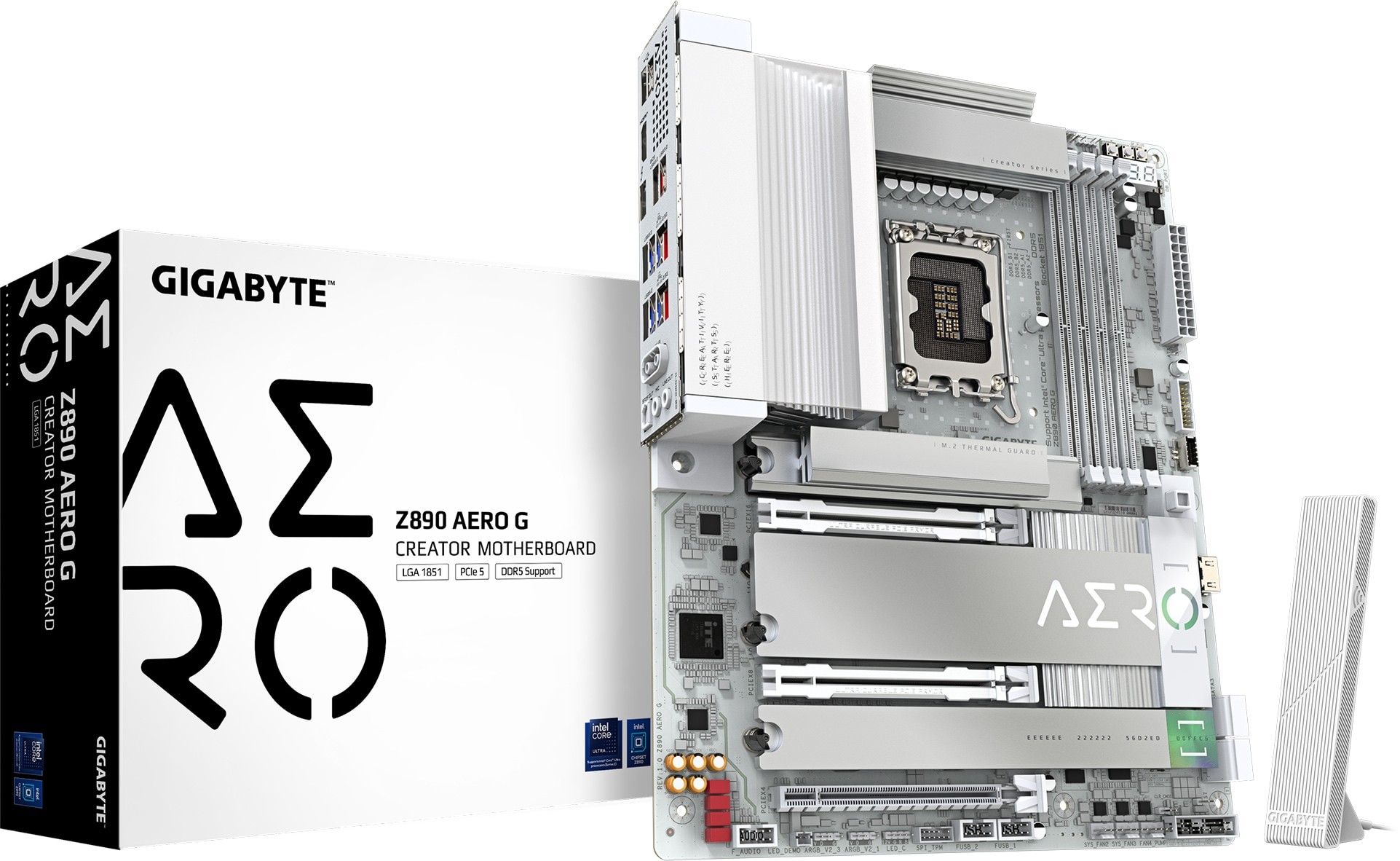

| Model | Z890 AERO G |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU |
| * Please refer to "CPU Support List" for more information. |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Support CUDIMM memory module |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| - 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs |
| When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). |
| When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) |
| * Support for DisplayPort 2.1 version and HDCP 2.3 |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. |
| - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| * Support for HDMI 1.4 version. |
| (Graphics specifications may vary depending on CPU support.) |
| Support for up to triple-display at the same time |
| Audio | Realtek ALC1220 CODEC |
| * The back panel line out jack supports DSD audio. |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Support for S/PDIF Out |
| LAN | 2x Intel 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 7 BE202 (BE200NGW M) |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| - BLUETOOTH 5.4 |
| - Support for 11be 160MHz wireless standard |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) |
| * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. |
| * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Chipset: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface | CPU: |
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) |
| Chipset: |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| - 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | CPU: |
| - 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel |
| *Support up to 40Gbps with Thunderbolt devices |
| *Support up to 20Gbps with USB4 devices |
| *Support up to 10Gbps with USB 3.2 devices |
| Chipset: |
| - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support |
| - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+USB 2.0 Hub: |
| - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors |
| 1 x CPU fan header |
| 1 x CPU fan/water cooling pump header |
| 3 x system fan headers |
| 1 x system fan/water cooling pump header |
| 3 x addressable RGB Gen2 LED strip headers |
| 1 x RGB LED strip header |
| 5 x M.2 Socket 3 connectors |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C header, with USB 3.2 Gen 2x2 support |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| 1 x HDMI port (Note) |
| 1 x power button |
| 1 x reset button |
| 1 x Q-Flash Plus button |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports |
| 1 x HDMI port (Note) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) |
| 1 x Intel Thunderbolt 4 connectors (USB Type-C ports) |
| 2 x RJ-45 ports |
| 4 x USB 3.2 Gen 1 ports |
| 2 x SMA antenna connectors (2T2R) |
| 2 x audio jacks |
| 1 x optical S/PDIF Out connector |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm |
| Warranty Information |
| Warranty | 3 Year Warranty |
