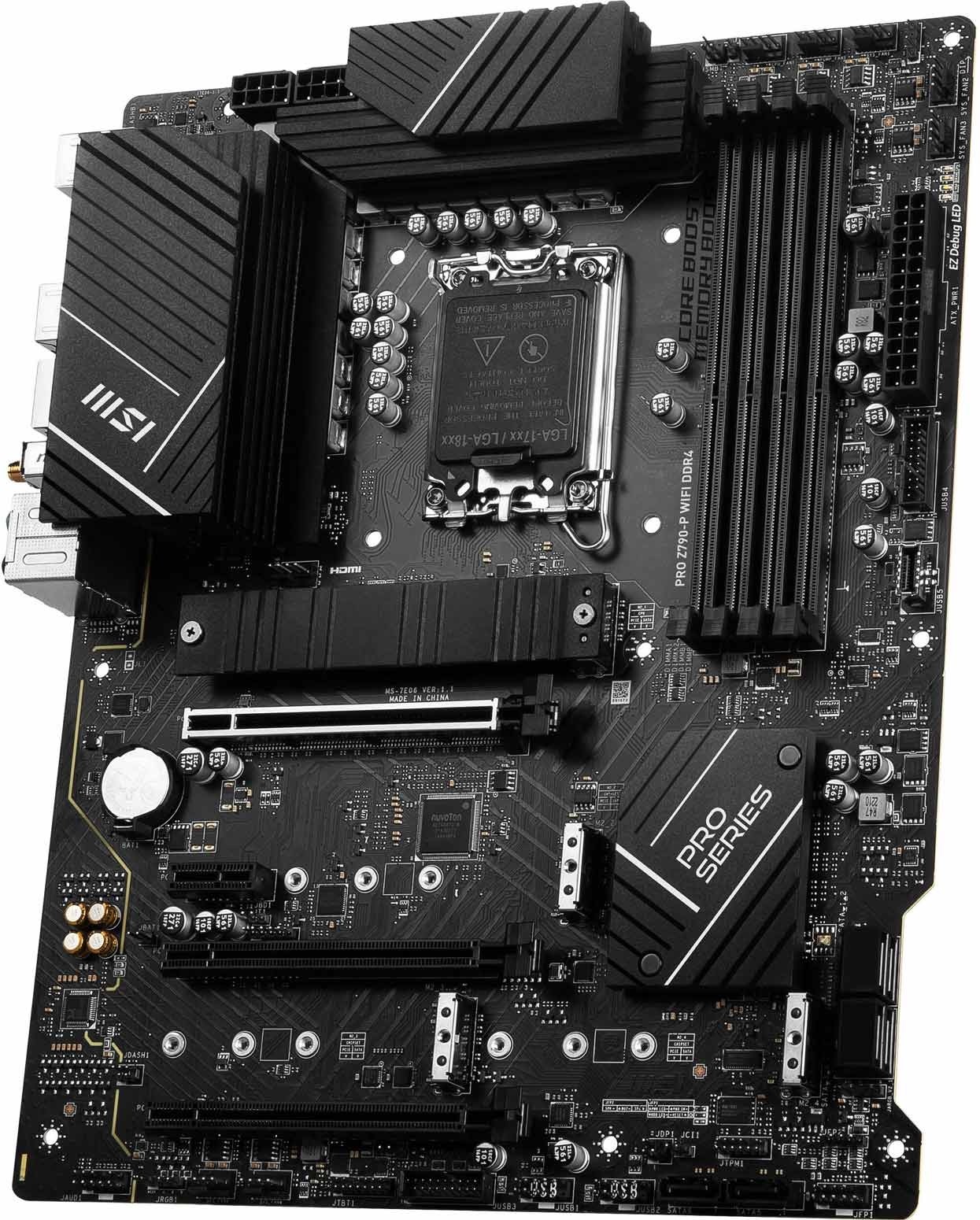

MSI PRO Z790-P WIFI DDR4 Intel Z790 Raptor Lake LGA 1700 ATX DDR4 Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO Z790-P WIFI DDR4 Intel Z790 Raptor Lake LGA 1700 ATX DDR4 Desktop Motherboard

Product ID: 40985

Be the first to review this product

- ATX Form Factor
- Intel Z790 Chipset
- Intel LGA1700 Socket
- 4x DDR4 DIMM Slots, Up to 128GB
- Supports Up to DDR4-5333MHz
- 3x PCI-E x16 Slots, 1x PCI-E X1 Slot
- 6x SATA 6Gbps, 4x M.2 Gen 4
- 1x USB 3.2 Gen 2x2 20Gbps Type-C
- 4x USB 2.0 Type-A, 2x USB 3.2 Gen 1 5Gbps Type-A
- 1x USB 3.2 Gen 2 10Gbps Type-A
- Intel 2.5Gbps LAN Port
- Realtek ALC897 Codec
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS
- Extended VRM Heatsink
- MOSFET Thermal Pads Rated for 7W/mK
- MSI M.2 Shield Frozr
- High Quality 6-layer PCB Made by 2oz Thickened Copper
- 3 Year Warranty

107 Products

End of Life

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte GA-Z790-EAGLE Z790 EAGLE Intel Z790 Raptor Lake LGA 1700...

In stock with Supplier

R3,996.00

Gigabyte GA-Z790-EAGLE-AX Z790 EAGLE AX Intel Z790 Raptor Lake LG...

In stock with Supplier

R3,897.00

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	Pro
Model	PRO Z790-P WIFI DDR4
Chipset	Intel Z790
CPU Support	Supports 12th/13th Gen Intel Core Processors, Pentium Gold And Celeron Processors
CPU Support	LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB
	Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
	Max. Overclocking Frequency:
	- 1DPC 1R Max Speed Up To 5333+ MHz
	- 1DPC 2R Max Speed Up To 4800+ MHz
	- 2DPC 1R Max Speed Up To 4400+ MHz
	- 2DPC 2R Max Speed Up To 4000+ MHz
	Supports Dual-Channel Mode
	Supports Non-ECC, Un-Buffered Memory
	Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI
	1x DisplayPort
	Support HDMI 2.1 With HDR, Maximum Resolution Of 4K 60Hz*
	Support DP 1.4, Maximum Resolution Of 4K 60Hz*
	*Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The CPU Installed.
Expansion Slot	3x PCI-E X16 Slot
	1x PCI-E X1 Slot
	PCI_E1 PCIe 5.0 Supports Up To X16 (From CPU)
	PCI_E2 PCIe 3.0 Supports Up To X1 (From Chipset)
	PCI_E3 PCIe 4.0 Supports Up To X4 (From Chipset)
	PCI_E4 PCIe 3.0 Supports Up To X1 (From Chipset)
Storage	4x M.2 Slot
	M.2_1 (From CPU) Supports Up To PCIe 4.0 X4 , Supports 22110/2280/2260/2242 Devices
	M.2_2 (From Chipset) Supports Up To PCIe 4.0 X4 , Supports 2280/2260/2242 Devices
	M.2_3 (From Chipset) Supports Up To PCIe 4.0 X4 / SATA Mode, Supports 2280/2260/2242 Devices
	M.2_4 (From Chipset) Supports Up To PCIe 4.0 X4 / SATA Mode, Supports 2280/2260/2242 Devices
	6x SATA 6G Port
RAID	Supports RAID 0, RAID 1, RAID 5 And RAID 10 For SATA Storage Devices
RAID	Supports RAID 0, RAID 1, RAID 5 And RAID 10 For M.2 NVMe Storage Devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 3.2 Gen1 Type A (Rear)
	4x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Front)
	1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel 2.5Gbps LAN
Wireless & Bluetooth	Intel Wi-Fi 6E
	The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) Up To 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth 5.2**, FIPS, FISMA
	* Wi-Fi 6E 6GHz May Depend On Every Country’s Regulations And Will Be Ready In Windows 10 Build 21H1 And Windows 11.
	** Bluetooth 5.2 Will Be Ready In Windows 10 Build 21H1 And Windows 11.
Audio	Realtek ALC897 Codec
Audio	7.1-Channel High Definition Audio
Internal I/O	Realtek ALC897 Codec
	7.1-Channel High Definition Audio1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	6x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x TBT Connector (JTBT, Supports RTD3)
	1x Tuning Controller Connector(JDASH)
	2x Addressable V2 RGB LED Connector (JARGB_V2)
	1x RGB LED Connector(JRGB)
	1x TPM Pin Header(Support TPM 2.0)
	4x USB 2.0
	4x USB 3.2 Gen1 Type-A
	1x USB 3.2 Gen2 Type-C
LED Features	4x EZ Debug LED
Back Panel Ports	1x Keyboard / Mouse
	1x DisplayPort
	4x USB 2.0
	1x 2.5G LAN
	Wi-Fi / Bluetooth
	6x Audio Connectors
	1x Flash BIOS Button
	1x HDMI
	2x USB 3.2 Gen 1 5Gbps Type-A
	1x USB 3.2 Gen 2x2 20Gbps Type-C
	1x USB 3.2 Gen 2 10Gbps Type-A
PCB Dimensions	ATX
PCB Dimensions	243.84mm x 304.8mm
Warranty Information
Warranty	3 Year Warranty
