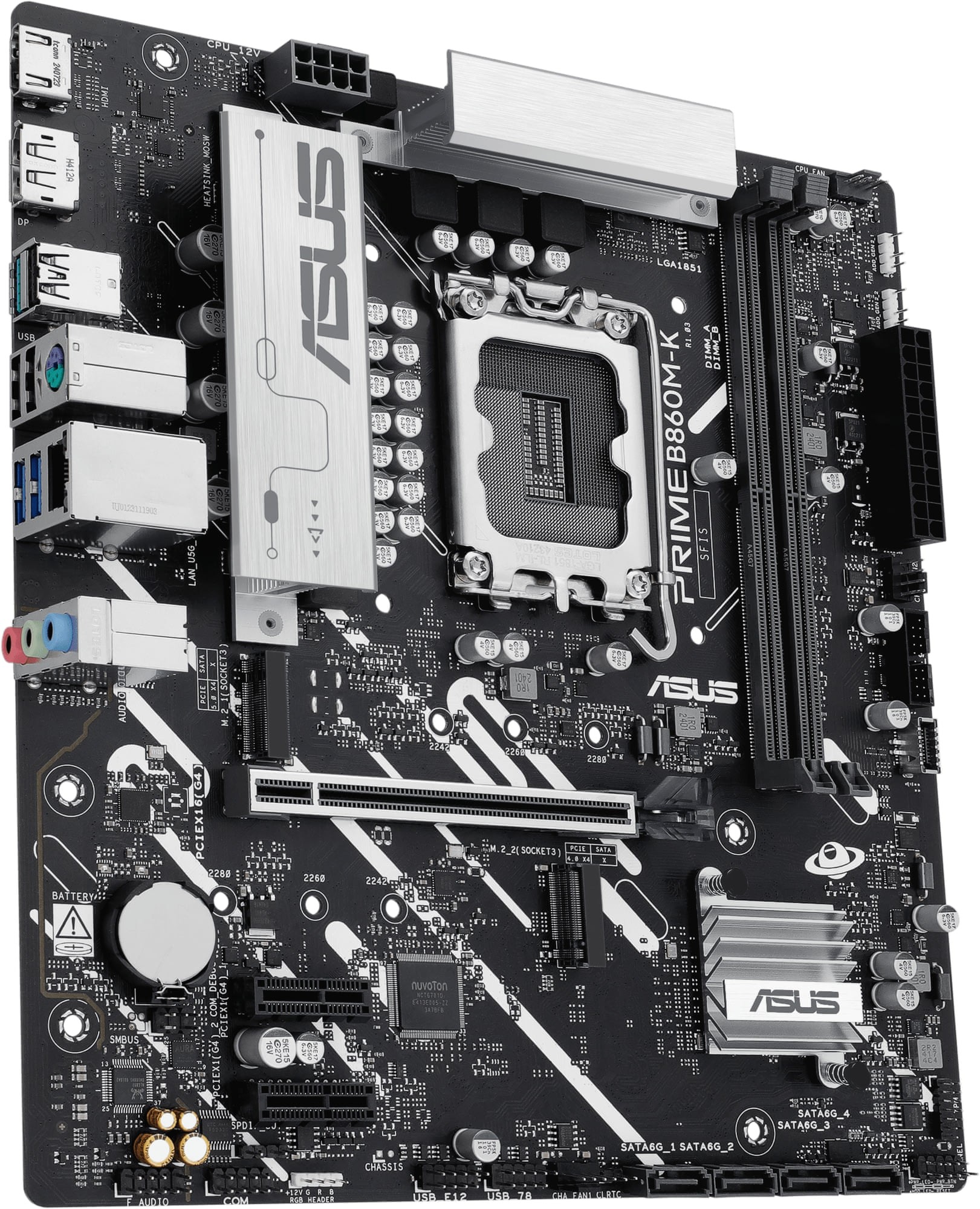

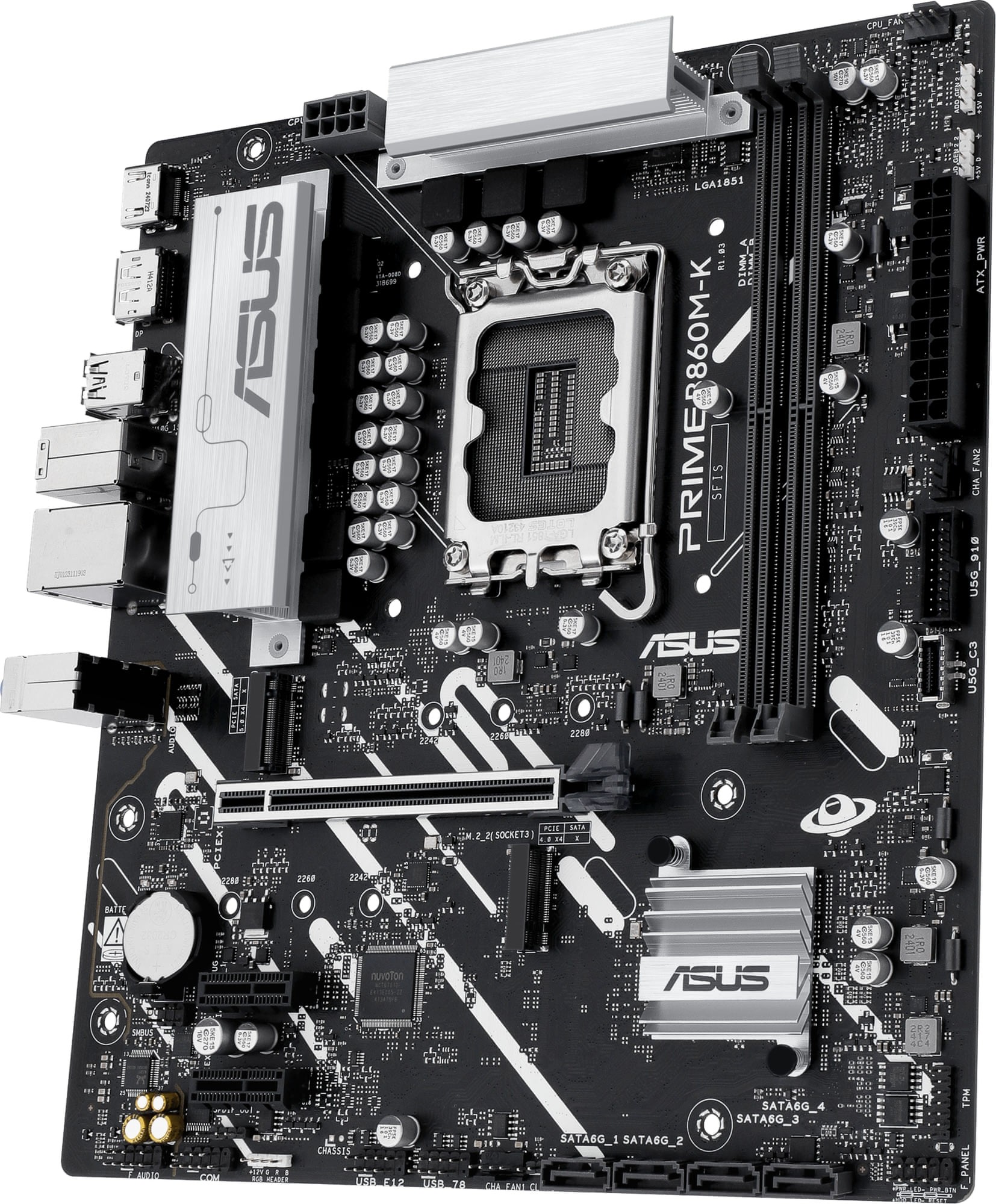

ASUS PRIME B860M-K Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS PRIME B860M-K Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

Product ID: 49515

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB
- Supports Up to DDR5-8800 CU-DIMM (OC)
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x1 Slots (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 2x USB 5Gbps Type-A Ports
- 3x USB 2.0 Type-A Port
- 1x HDMI 2.1 (TMDS), 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks Support Surround Sound
- 1x PS/2 Combo Port (Keyboard, Mouse)
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek High Definition Audio CODEC
- 6+1+1+1 Digi+VRM Solution
- ASUS Aura RGB Sync
- ASUS Q-LED CORE Diagnostic LED
- ASUS Armoury Crate Software
- Supports Windows 11 64-Bit
- 3 Year Warranty

266 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,189.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	PRIME Series
Model	PRIME B860M-K
CPU Support	Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2)
Chipset	Intel B860 Express
Memory Support
Intel Core Ultra Series Processors (Series 2)	2x DIMM slots, max. 128GB, DDR5
	Supports up to 8800 MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
	Dual channel memory architecture
	DIMM Fit
	Supports Intel Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile III (AEMPIII)
Video
HDMI	1x HDMI 2.1 (TMDS) port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical slot
Intel B860 Chipset	2x PCIe 4.0 x1 Physical, x1 Electrical slots
Storage
CPU Direct	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4x SATA 6Gb/s ports
	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps
LAN	ASUS LANGuard Protection
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek 7.1 Surround Sound CODEC
	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones
	Supports up to 24-Bit/192 kHz playback
	Dedicated audio PCB layers
	Audio Shielding
Connectivity
Ports	1x USB 10Gbps Type-A Port
	2x USB 5Gbps Type-A Ports
	3x USB 2.0 Type-A Port
	1x HDMI 2.1 (TMDS)
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks Support Surround Sound
	1x PS/2 Combo Port (Keyboard, Mouse)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
General
Internal Connectors	1x 4-pin CPU Fan header
	2x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	1x 8-pin 12V CPU Power connector
	2x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	1x USB 5Gbps connector (supports USB Type-C )
	1x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2x USB 2.0 headers support 4 additional USB 2.0 ports
	2x Addressable Gen2 headers
	1x Aura RGB header
	1x Clear CMOS header
	1x COM Port header
	1x Front Panel Audio header (F_AUDIO)
	1x S/PDIF Out header
	1x SPI TPM header (14-1 pin)
	1x 10-1 pin Front Panel System header
Buttons	N/A
LED Displays	ASUS Q-LED Core Diagnostic LED (via power LED)
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Remote Management	WOL by PME, PXE
Form Factor	Micro-ATX Form Factor, 244 x 222 mm (H x W)
Operating System Support	Windows 11 64-bit
Box Contents	2x SATA 6Gb/s cables
	1x I/O Shield
	1x M.2 anchor package
	1x Quick start guide
Warranty Information
Warranty	3 Year Warranty
